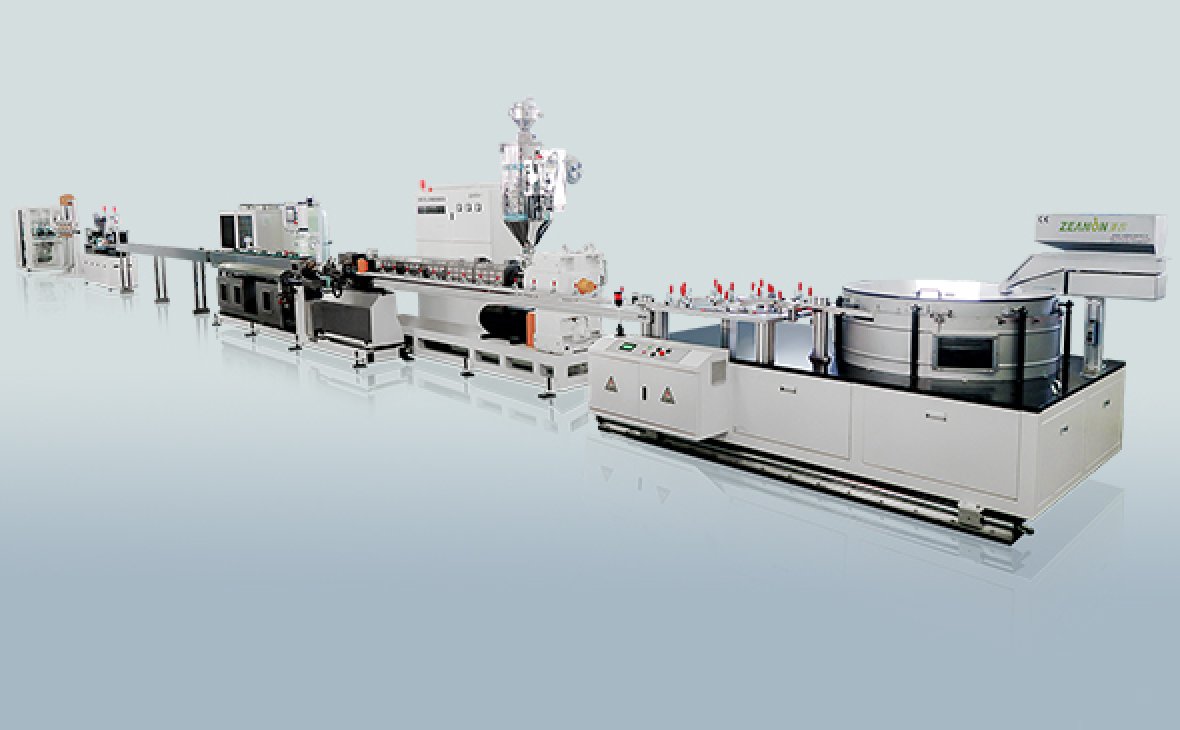

Drip Irrigation Pipe Production Line
Thin-wall flat drip pipe production line

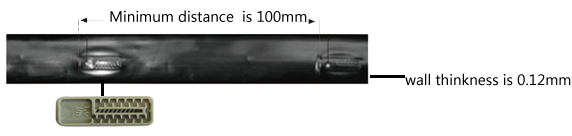

Distance of dripper
"ZEANON" is an independent brand developed by Qingdao Xindacheng together with European well-known drip line. Zeanon products cover all aspects of the drip irrigation field, including water-saving irrigation technology & machinery, engineering design, drip products and drip irrigation pipe production line.

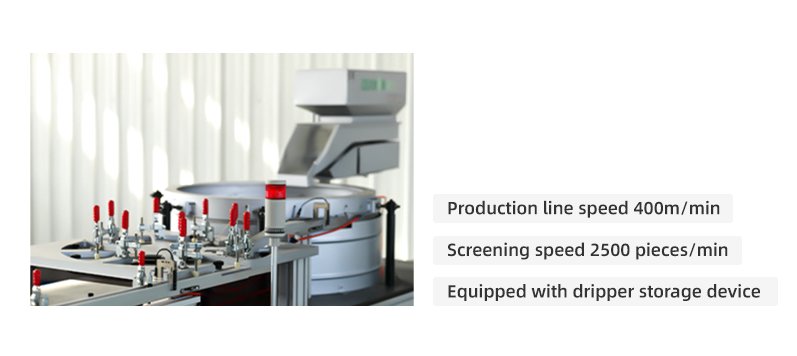

1. Dripper feeder device: one sets. dripper feeding speed: 1500pcs/min
2. Have dripper buffer device, make sure non-stop machinery even if happen bad quality dripper block on feeder.

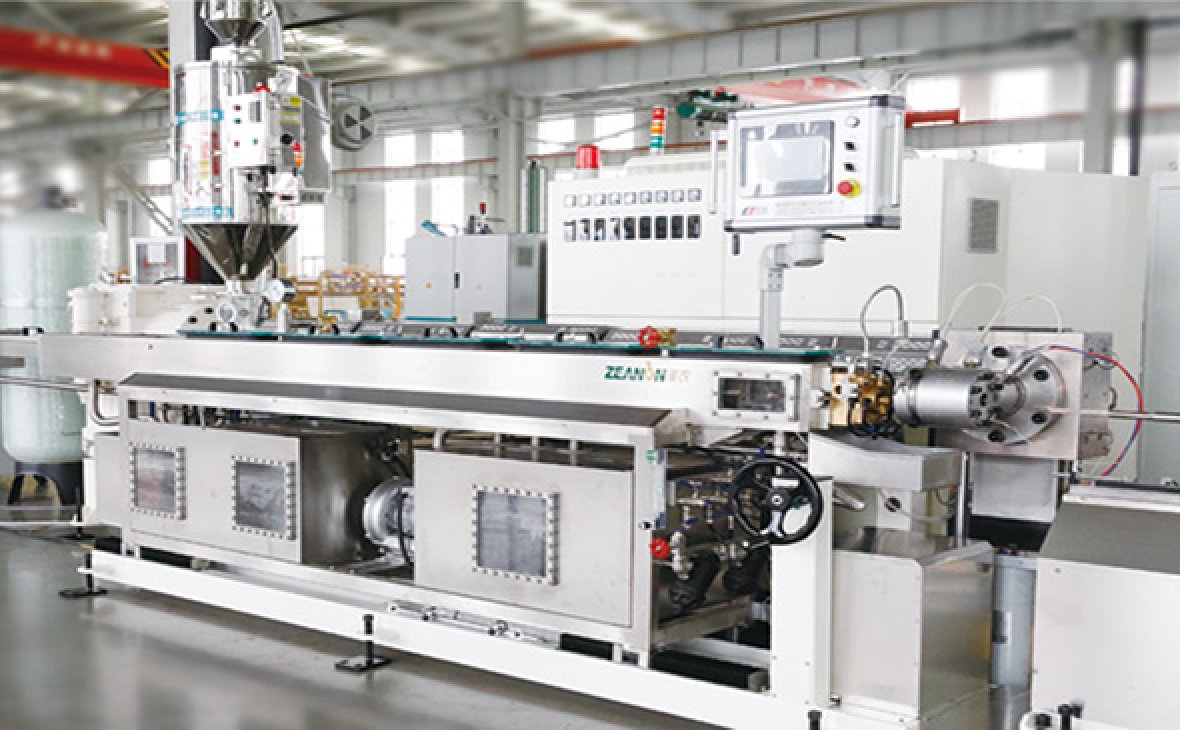

3. Extruder: AC or DC drive
4. Extruder die head & calibrating: Germany technology, thickness adjustable.
5. Configuration: One-button automatic pipe-holding dripper insert device
6. Irrigation pipe accumulator: equipped with the most advanced European parallel accumulator device.
7. Automatica drilling device: 2 units. speed: 1300time/min
8. Configure online automatic imaging analysis and monitoring punching system: monitor the punching status, realize the error automatic alarm function, and ensure the product punching rate.
9. Line speed： 300m/min, it is the fastest production efficiency in the world.
* dripper space 100mm, speed: 130m/min
* dripper space 200mm, speed: 260m/min
* dripper space 300mm, speed: 300m/min
●Zeanon irrigation pipe weights less than 7g/m
Reduce 30% material which will largely save cost
●Configured with advanced dripper dripper buffer and insertion unite (Europe technology).
Insert 1000-1500 pieces of dripper per minute.

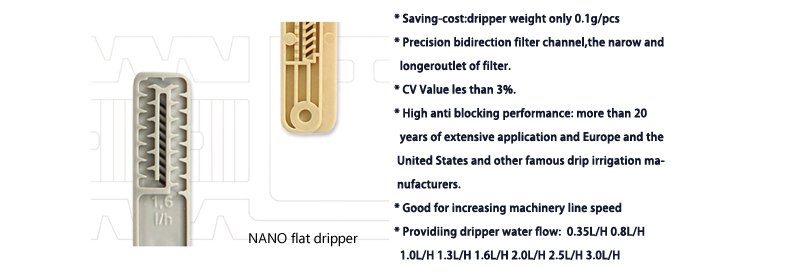

●Europe import dripper, weights only 0.1g/pcs(China exclusive agent)
Qingdao Xindacheng import from Europe, China exclusive agent.
High efficient inner irrigation pipe dripper adopted high efficient injection mold technology.
All produced in Europe, to make sure of the quality.
●Double Auto Punching Unit
Punching device fixed with online monitor & picture indentify system, store the punching system.
Auto alarm for wrong punching, it is controlled by PLC system,
Tracking and adjust the punching system in time.

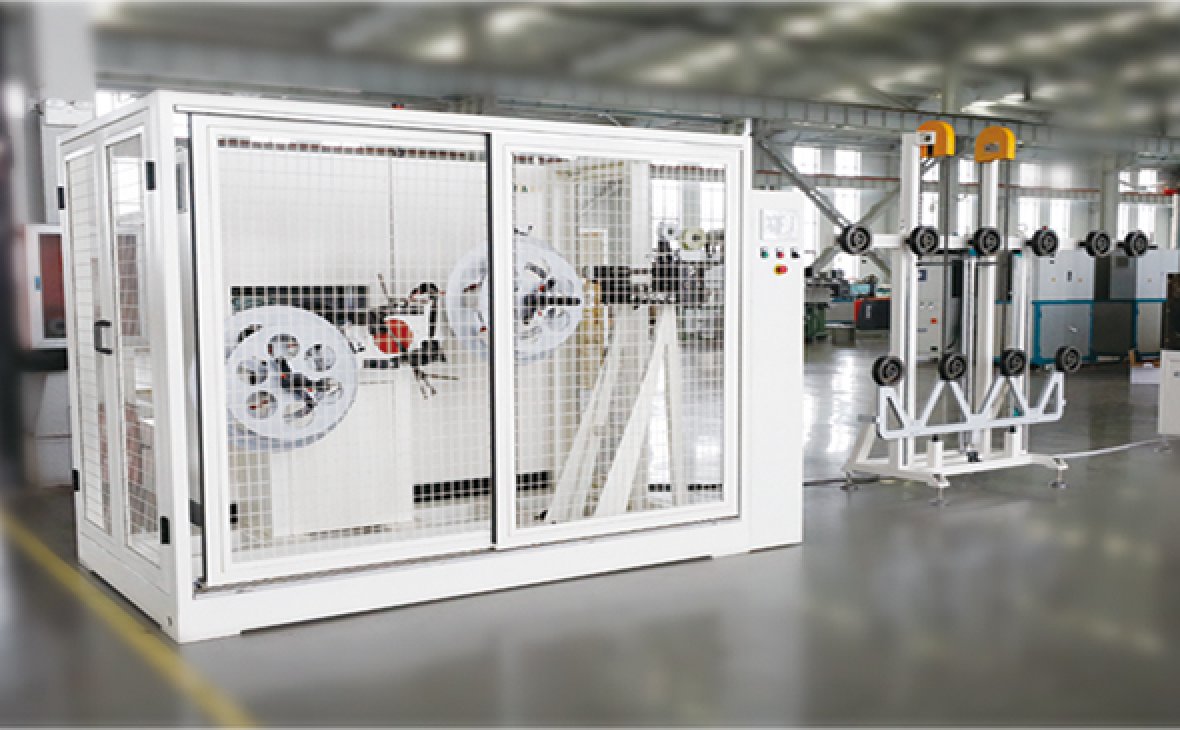

●Auto winder + Accumulator device
It is drive by servo motor. Automatically wind the dripper irrigation pipe. Controlled by PLC system.
