Board/Sheet Production line

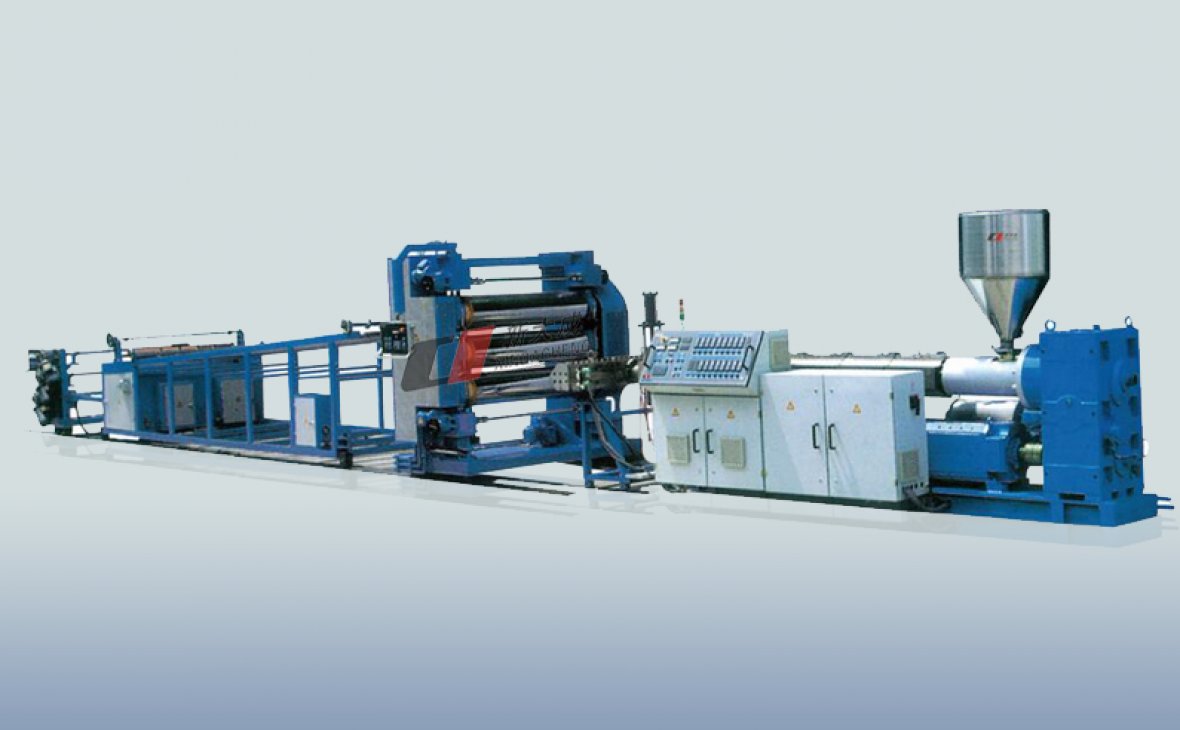

PVC Plstic Extruding Sheet Production Line

Technical parameter:

Sheet Width400-5500mm
Sheet Thickness0.2-50mm
Prodution capacity30-1000kg/h
Prodction Speed25m/min

Product description:

  • Screw with special mixing and plasticization function.

  • Coat hanger type die with two throttle design enable to regulate the sheet thickness accurately.

  • ±1℃ temperature control make the plasticizing process and sheet thickness control more accurate.

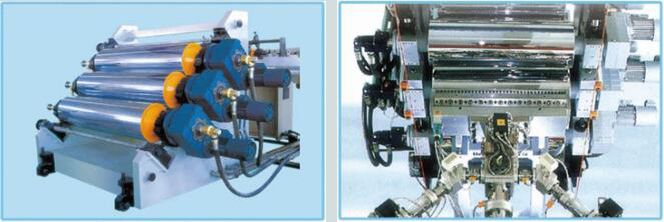

  • Horizontal, vertical or 45° incline type three rollers calenders may be lifted freely.

  • Sheet thickness shall be regulated by screw and pressing roller.

  • Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness.

  • Exact slicing machine, board length and quantity.

  • Winder with big torque motor, and its speed and tension force adjustable.

  • Automatic metering to set the length of product.
