Casting film production line

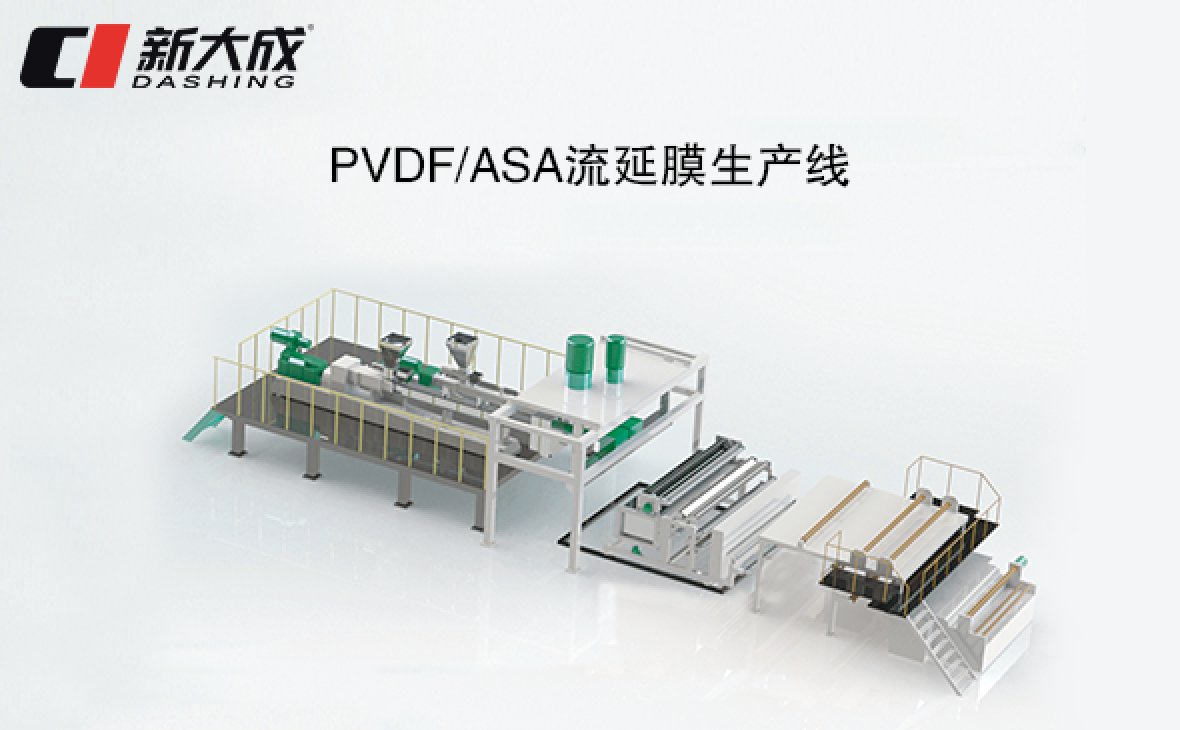

PVDF/ASA casting film production line
Main technical parameters：
Type | XDC-1250asa | XDC-1500pvdf | XDC-2700pvdf |
Extruder specification | 120 | 65+65 | 65+90 |
Width of product | 1200mm | 1500mm | 2600mm |
Thickness of Products | 0.06-0.15m'm | 0.02-0.8m'm | 0.02-0.8m'm |
Output | 600kg/h | 250kg/h | 400kg/h |
Speed | 60m/min | 60m/min | 60m/min |
Equipment features:
PVDF casting film production line is divided into single-layer and co-extruded pmma two models, respectively for solar backplane and weather-resistant decorative materials.
ASA casting film production line is mainly used in weather-resistant resin tile industry, is the main process route of resin tile in recent years.
The PVDF/ASA casting film production line produced by our company runs stably, the production line speed is high, the unique screw design does not need to dry the material separately, and the production cost is low.
