Bidirectional stretch film production line
BOPET/BOPP/BOPA/BOPI/Battery Diaphragm Production Line
Main technical parameters：
Item | XDC-1600 | XDC-3500 | XDC-4200 |
Extruder Specification | 65/120/65 | 100/150/100 | 120/180/120 |
Product Width | 1600mm | 3500mm | 4200mm |
Product Thickness | 0.02-0.1m'm | 0.02-0.1m'm | 0.02-0.1m'm |
Output | 700kg/h | 1200kg/h | 1500kg/h |
Production Speed | 280m/min | 280m/min | 280m/min |
The actual output and production performance may vary according to raw materials, product specifications and production conditions.
Product Overview

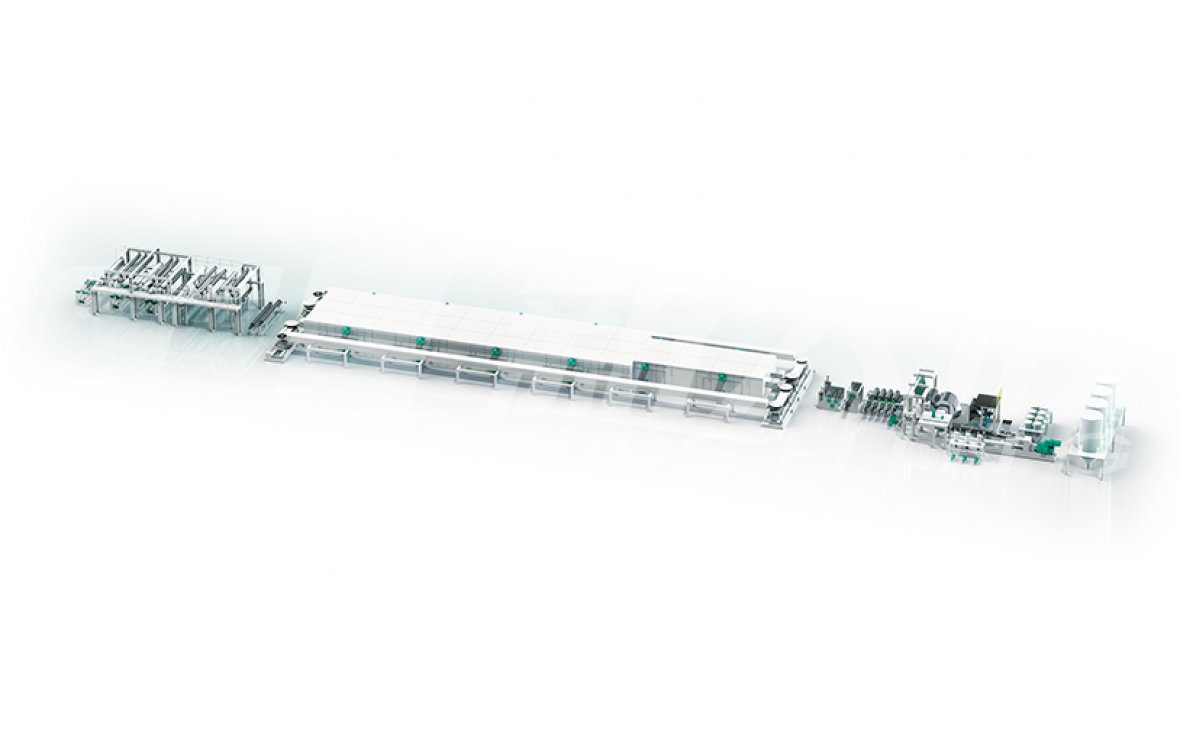

The BOPET/BOPP/BOPA/BOPI/Battery Diaphragm Production Line is a biaxially oriented film production line developed for wide-width film manufacturing. The available line models cover product widths from 1600 mm to 4200 mm, with production speeds up to 280 m/min and rated outputs from 700 kg/h to 1500 kg/h, depending on the line model.
The production line uses a biaxial stretching process and is equipped with self-developed components from the clip body to the guide rail. This approach is intended to maintain processing accuracy throughout the stretching section. The oven temperature control accuracy is specified at ±1°C, while the complete equipment is controlled by a Siemens PLC system.
Based on different production requirements, Xindacheng provides several line configurations, including XDC-1600, XDC-3500 and XDC-4200.
The product page covers keywords and applications related to BOPET film production lines, BOPP film production lines, BOPA film production lines, BOPI film production lines, biaxially oriented film production lines, battery diaphragm production lines and battery separator film production lines.
Biaxially Oriented Film Production Line Features
Wide-Width Film Production
The available models provide product widths of 1600 mm, 3500 mm and 4200 mm, allowing manufacturers to select a line according to their required film width and production capacity.
With a maximum listed production speed of 280 m/min, the line is designed for continuous biaxially oriented film production.
Self-Developed Stretching Components
Xindacheng has developed key components of the bidirectional stretching section, including the clip body and guide rail. The self-developed components are intended to help maintain processing accuracy within the stretching system.
Oven Temperature Control
The stretching oven temperature control accuracy is specified at ±1°C. Stable temperature control is important for maintaining consistent processing conditions during film stretching.
Siemens PLC Control System
The complete production line is controlled by a Siemens PLC system. The centralized control system is used for equipment operation and production-line control.
Different Production Capacities
Three standard models are available with listed outputs of:
700 kg/h for XDC-1600
1200 kg/h for XDC-3500
1500 kg/h for XDC-4200
This gives manufacturers different production capacity options when selecting a biaxially oriented film production line.
Turnkey Project Capability
Xindacheng can provide turnkey project solutions for the corresponding film production line, covering the complete equipment setup required for the project according to the agreed technical configuration.
BOPET Film Production Line
BOPET refers to biaxially oriented polyethylene terephthalate film. A BOPET film production line uses biaxial stretching technology to manufacture PET-based oriented film.
For projects requiring BOPET film production, the appropriate line configuration should be selected according to required film width, thickness, output and production conditions.

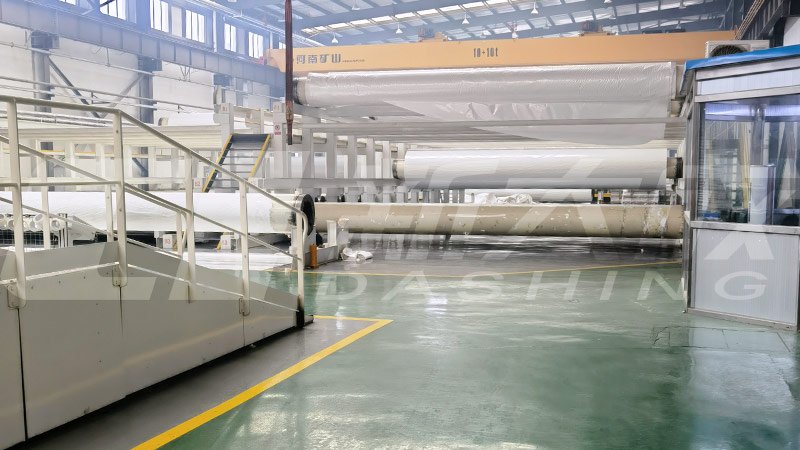

BOPP Film Production Line
BOPP is biaxially oriented polypropylene film. A BOPP film production line is used for continuous production of oriented polypropylene film.
The XDC series provides different width and output configurations, including 1600 mm, 3500 mm and 4200 mm product-width models. Final equipment configuration should be determined according to the customer's material, film specifications and production requirements.
BOPA Film Production Line
BOPA refers to biaxially oriented polyamide film. A BOPA film production line applies biaxial stretching technology to produce oriented polyamide film.
For BOPA production projects, film thickness, width, required output and material characteristics should be considered when selecting the appropriate production line model.
BOPI Film Production Line
BOPI refers to biaxially oriented polyimide film. For BOPI-related production projects, the production-line configuration needs to be matched with the specific material formulation and required film specifications.
The available XDC series provides different production widths and output levels for wide-width biaxially oriented film production.

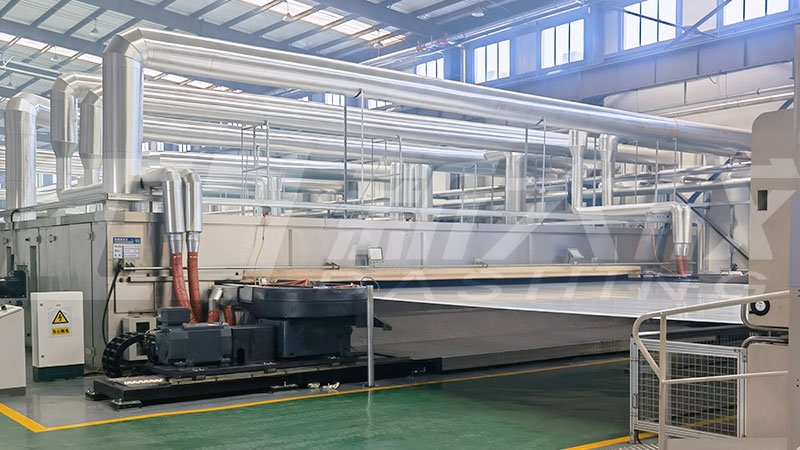

Battery Diaphragm / Battery Separator Film Production Line
Battery diaphragm film is also commonly referred to as battery separator film in English-language technical and industrial searches. The product category therefore includes both battery diaphragm production line and battery separator film production line as relevant search terms.
For battery separator film projects, the production line configuration should be determined according to the required material, film thickness, width, production capacity and other technical requirements. Detailed specifications should be confirmed before selecting the final equipment configuration.
How to Choose a Biaxially Oriented Film Production Line
Selecting a BOPET, BOPP, BOPA, BOPI or battery diaphragm production line should start with the actual production requirements rather than line speed alone.
Key factors include:
Required film material and application
Target film thickness
Required film width
Required production capacity
Required production speed
Production conditions and material characteristics
Required equipment configuration
For example, the XDC-1600 has a listed output of 700 kg/h and a product width of 1600 mm, while the XDC-3500 and XDC-4200 provide wider product widths and higher listed outputs. The suitable model should therefore be selected according to the planned product range and production capacity.
Technical Support and Project Configuration
Because biaxially oriented film production involves different materials and product specifications, the final production-line configuration should be confirmed according to the customer's requirements.
For a project inquiry, manufacturers can provide the following information:
Film material
Film width
Film thickness
Required output
Target production speed
Intended application
Based on these requirements, the corresponding line model and technical configuration can be evaluated.
FAQ
What is a biaxially oriented film production line?
A biaxially oriented film production line is used to manufacture plastic films through a process involving extrusion and biaxial stretching. The film is stretched in two directions to obtain the required oriented film product.
What film materials are covered by this production line?
The product category covers BOPET, BOPP, BOPA, BOPI and battery diaphragm/separator film production lines. The specific equipment configuration should be confirmed according to the material and final film requirements.
What is the maximum production speed?
The listed production speed for the XDC-1600, XDC-3500 and XDC-4200 models is 280 m/min.
What product widths are available?
The listed product widths are 1600 mm, 3500 mm and 4200 mm, corresponding to the three XDC models.
What is the film thickness range?
The listed thickness range is 0.02–0.10 mm, equivalent to 20–100 μm.
Can Xindacheng provide a turnkey project?
Yes. Xindacheng states that it can provide turnkey projects for the corresponding production line according to the agreed technical requirements and configuration.
Request a Biaxially Oriented Film Production Line
If you are planning a BOPET, BOPP, BOPA, BOPI or battery separator film production project, please provide your target film material, width, thickness and required output. The production-line model and configuration can then be evaluated according to your requirements.
