Drip-Line Accessory equipment
Drip Tape & Pipe Winding Machine
Technical Parameters
| Item | Drip Tape Winder | Drip Pipe Coiler |
|---|---|---|
| Winding speed | Up to 450 m/min | 100 m/min / 120 m/min* |
| Winding structure | Double station | Double station |
| Drive | Servo motor | Torque motor |
| Meter counting | Yes | Yes |
| Line arranging | Automatic | Automatic |
| Cutting | Automatic | Automatic |
| Roll changing | Automatic | Automatic |
| Online packaging | — | Optional |
*100 m/min without online packaging; 120 m/min with automatic online packaging.
The Drip Tape & Pipe Winding Machine is downstream equipment for drip irrigation tape and drip irrigation pipe production lines. Both automatic and semi-automatic winding solutions are available for different production requirements.
The automatic systems can perform winding, line arranging, meter counting, cutting, roll changing and unloading. For drip pipe, an automatic online packaging system is also available as an optional function.
Automatic and Semi-Automatic Winding Solutions

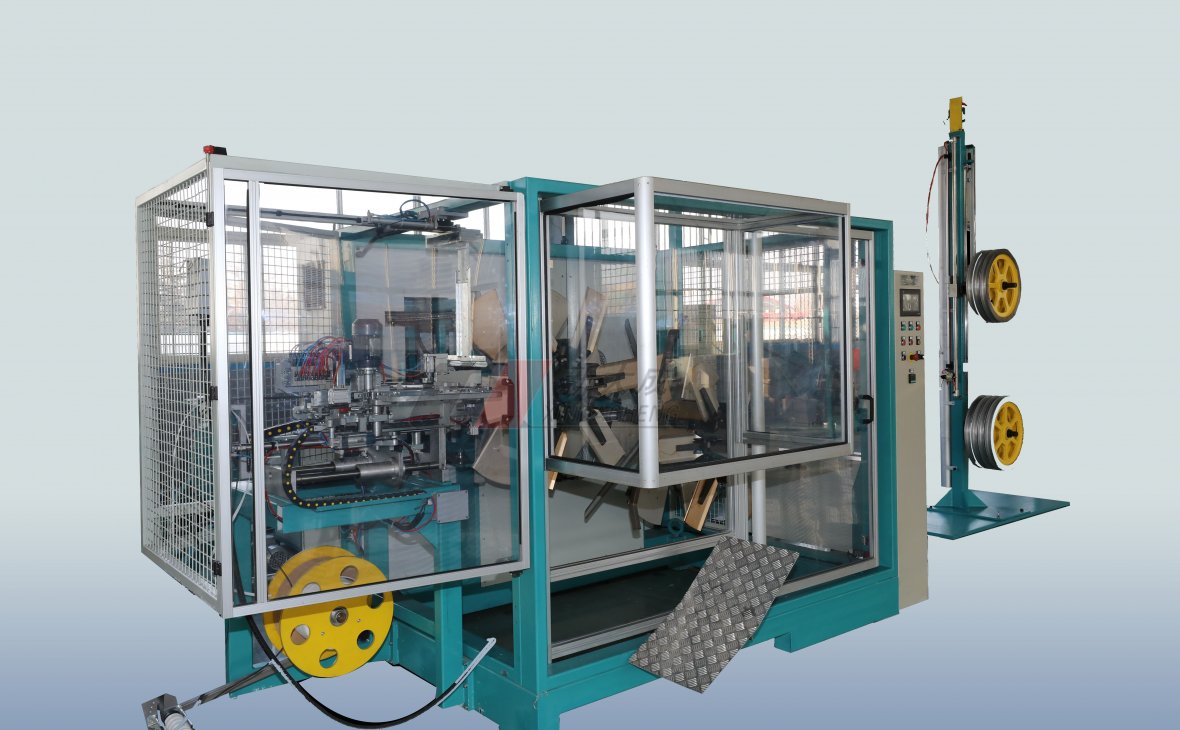

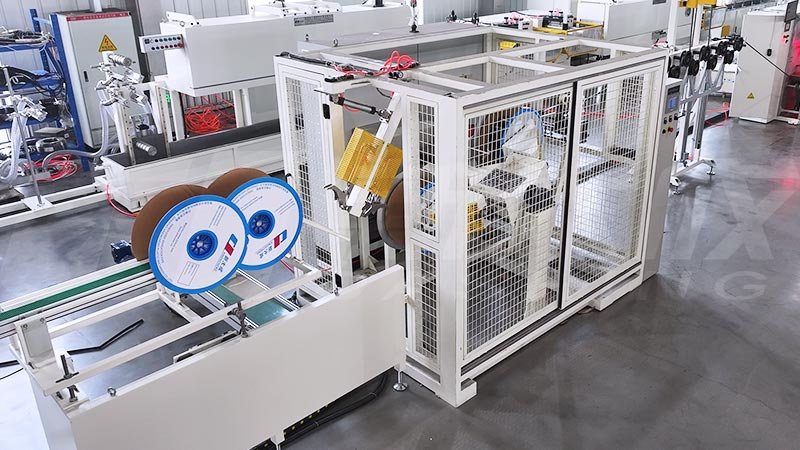

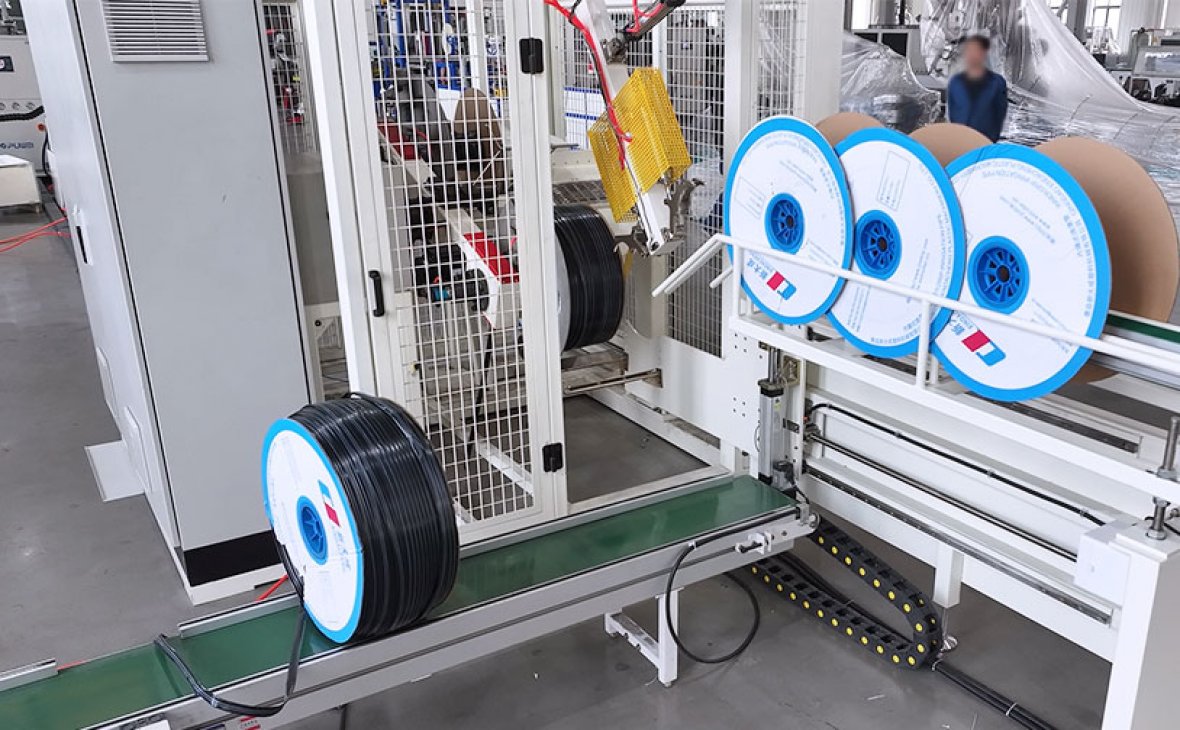

Automatic Drip Tape Winder
The automatic drip tape winder is designed for continuous high-speed winding after drip tape extrusion. According to the preset winding length, it can automatically complete line arranging, winding, meter counting, cutting, roll changing and unloading.
The system adopts double-station winding with servo motor drive. An automatic line arranger controlled by a servo motor helps maintain an orderly winding arrangement. PLC and HMI digital control are used for winding operation and parameter setting.
Main specifications include:
Winding speed: up to 450 m/min
Core outer diameter: 600 mm
Wall thickness: 0.12–0.6 mm
Winding length: ≤3000 m/roll
Double-station automatic winding and roll changing
Semi-Automatic Drip Tape Winder
The semi-automatic drip tape winder is suitable for production lines where part of the winding and roll-handling process is performed manually. The configuration can be selected according to the required tape specification, winding length and production process.

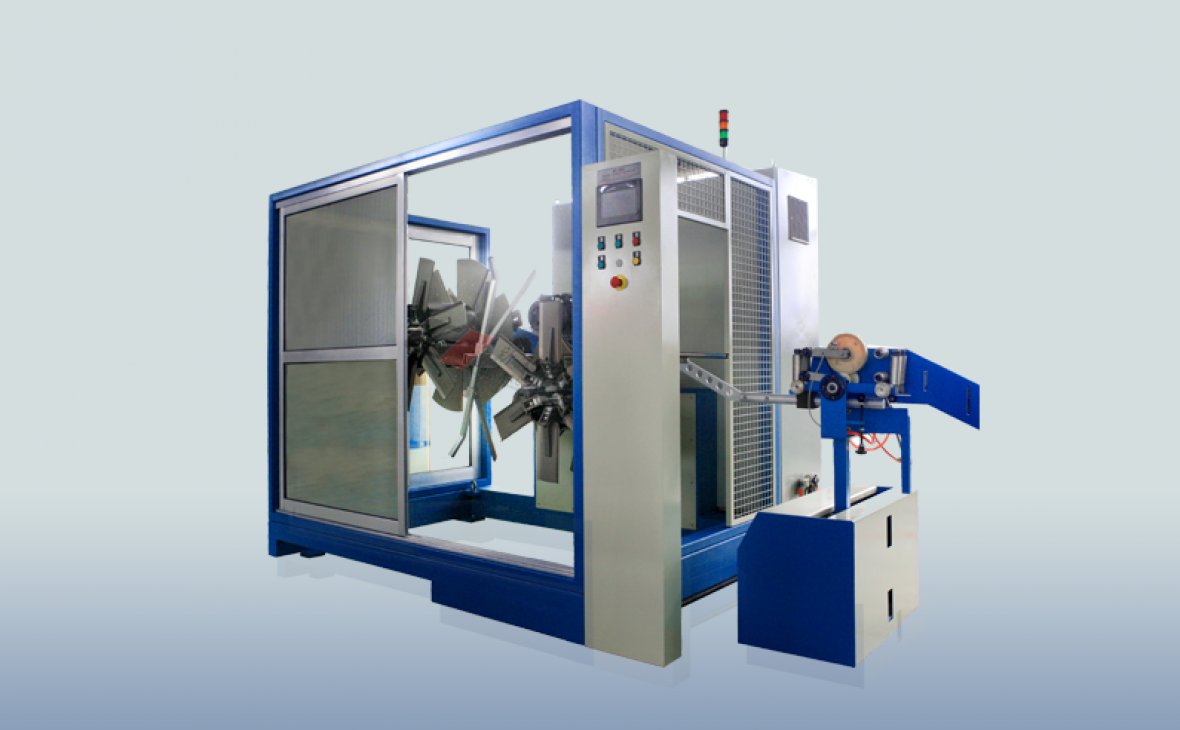

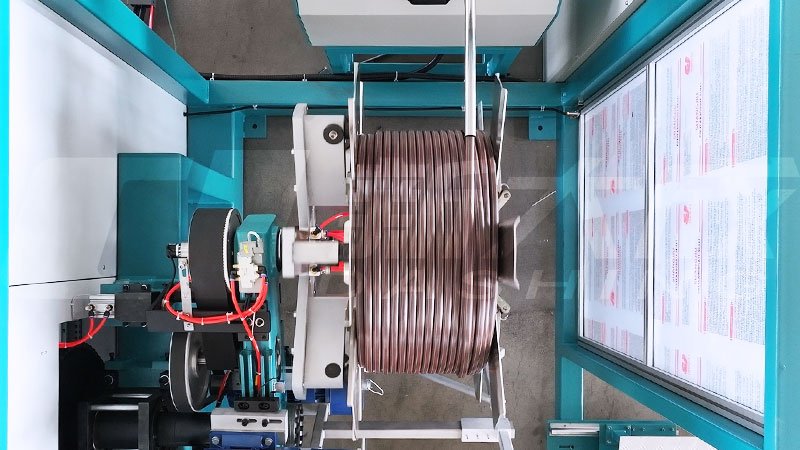

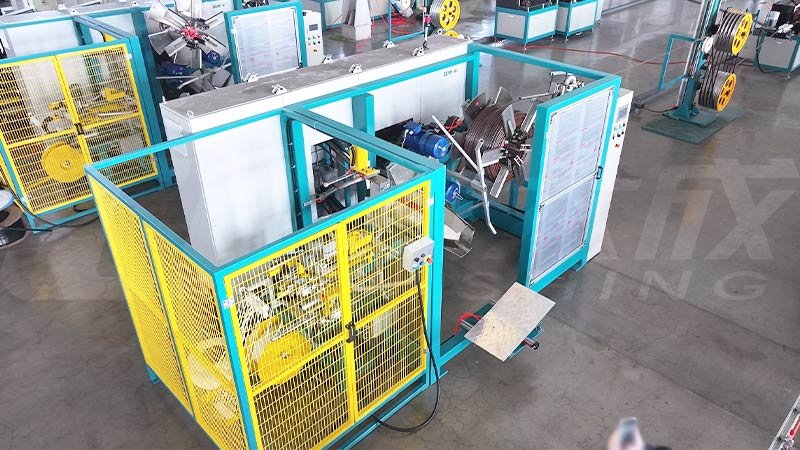

Automatic Drip Pipe Coiler
The automatic drip pipe coiler is designed for continuous winding of drip irrigation pipe. It can automatically complete winding, line arranging, meter counting, cutting, roll changing and unloading.
The system uses double-station winding with torque motor control and an automatic line arranger. A storage device in the corresponding B/C configuration temporarily stores the pipe during roll changing, helping prevent the pipe from falling onto the floor.
The listed speed is 100 m/min without automatic online packaging and 120 m/min with automatic online packaging.
Online packaging is available as an optional function.
Semi-Automatic Drip Pipe Winder
The semi-automatic drip pipe winding solution is intended for production lines where full automatic winding and roll handling are not required. The configuration can be matched to the pipe specification, roll length and production requirements.
Key Features

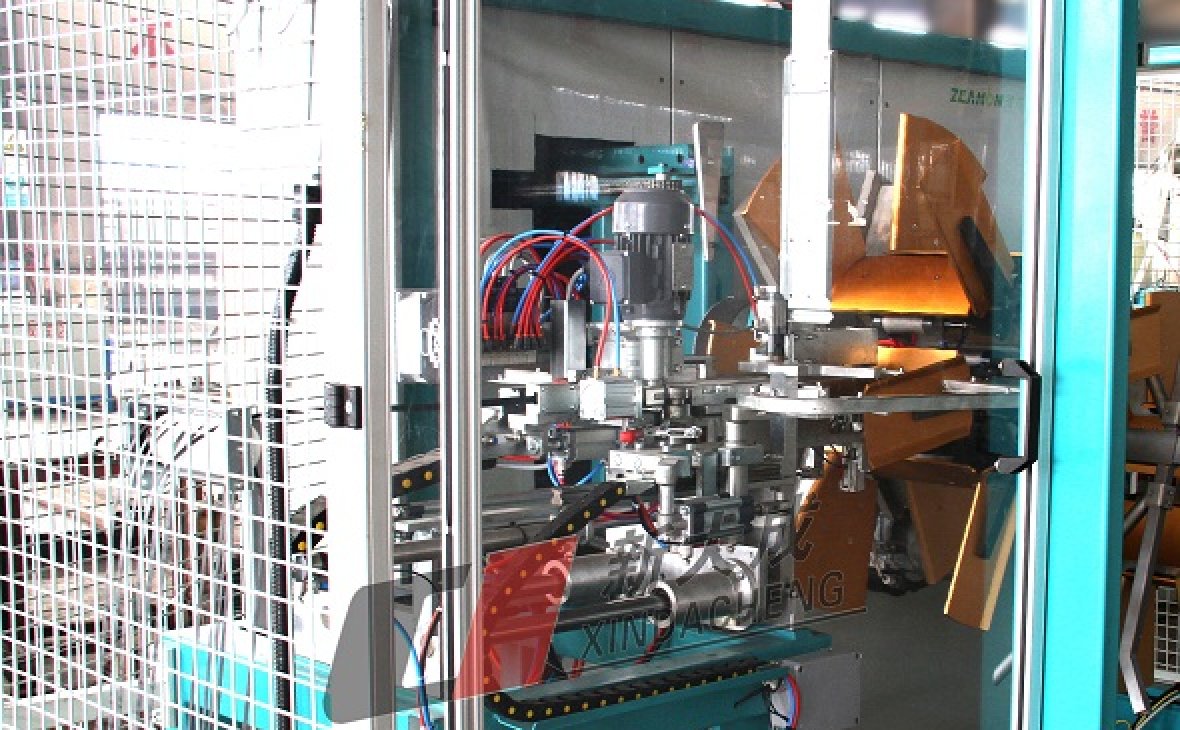

Automatic Line Arranging
Both automatic winding solutions are equipped with an automatic line arranger to help keep the drip tape or pipe neatly arranged during winding.
Accurate Meter Counting
The winding system provides meter counting for each roll. The required winding length can be set according to production requirements.
Double-Station Winding
The automatic drip tape winder uses servo motor drive, while the automatic drip pipe coiler uses torque motor control. Both adopt a double-station winding structure for continuous roll production.
Automatic Roll Handling
According to the selected configuration, the automatic systems can perform cutting, roll changing and unloading. For the drip pipe coiler, online packaging can also be integrated as an optional function.
How to Choose a Drip Irrigation Winder
The suitable winding machine depends on the product type and required production process.
For drip tape, the automatic winder supports a listed speed of up to 450 m/min and a winding length of up to 3000 m per roll.
For drip pipe, the automatic coiler provides winding, line arranging and meter counting, with cutting, roll changing, unloading and optional online packaging.
The product specification, required roll length, production speed and automation level should be confirmed before selecting the final configuration.
FAQ
What is a drip tape winder?
A drip tape winder is downstream equipment used to wind extruded drip irrigation tape into rolls. Depending on the configuration, it can provide automatic winding, meter counting, line arranging, cutting and roll changing.
What is a drip pipe coiler?
A drip pipe coiler is used to wind drip irrigation pipe into rolls. The automatic configuration can integrate winding, line arranging, meter counting, cutting, roll changing and unloading.
What is the maximum speed of the drip tape winder?
The listed winding speed is 450 m/min.
What is the speed of the automatic drip pipe coiler?
The listed speed is 100 m/min without online packaging and 120 m/min with automatic online packaging.
Are semi-automatic models available?
Yes. Both drip tape and drip pipe winding solutions can be configured as automatic or semi-automatic.
Request a Drip Tape or Pipe Winding Machine
Please provide the product type, required winding speed, roll length and automation requirements to determine the suitable winding-machine configuration.
