Drip Irrigation Pipe Production Line
High speed internal flat dripper irrigation pipe production line
Technical parameter：
| Model | Pipe diameter | Pipe thickness | Highest speed | Distance of dripper |
| XDC-DGG-450B | Φ12-16-20mm | 0.12-0.6mm （optional） | 450m/min | 100、150、200、300、400、500-1500mm |
| Space 100mm | Line speed 450m/min |
| Space 200mm | Line speed 450m/min |
| Space 300mm | Line speed 450m/min |

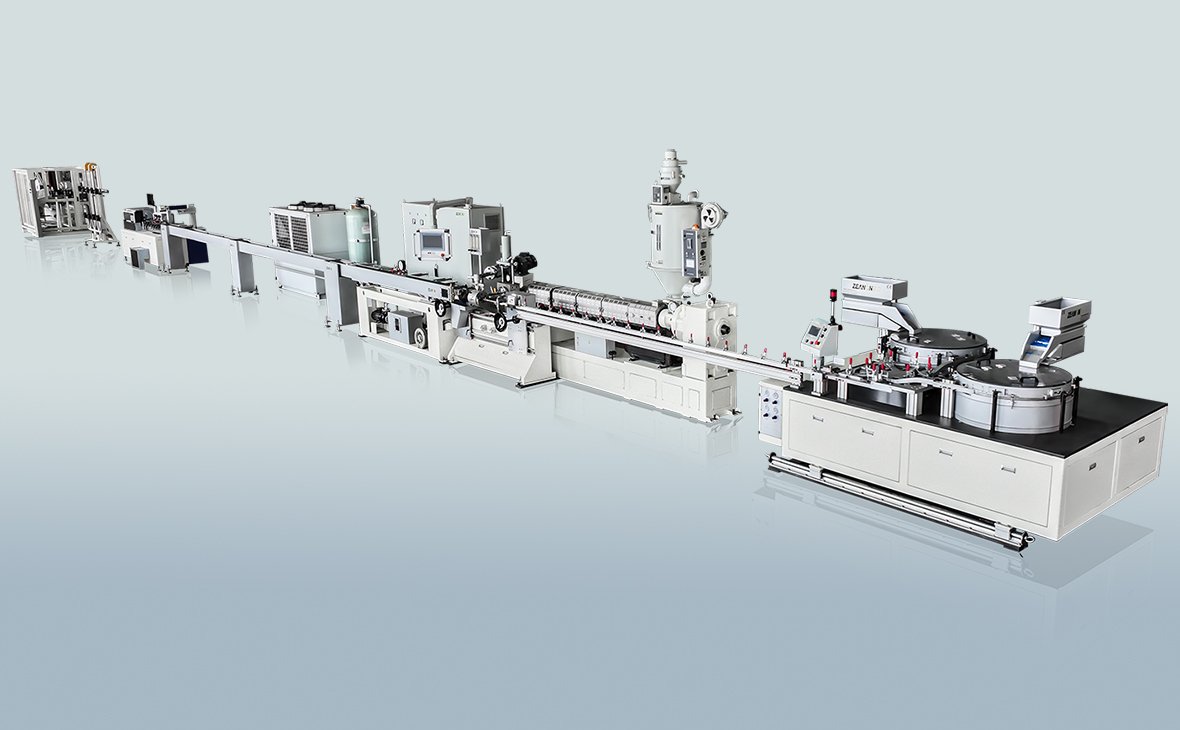

Xindacheng's High-Speed Drip Irrigation Tape Production Line is designed for fully automated production of thin-wall drip irrigation tape with internally inserted flat drippers. The line integrates extrusion, dripper feeding and insertion, accumulation, punching, online inspection and automatic winding into one continuous production system.
It supports drip tape diameters of Φ12–20 mm and wall thicknesses from 0.12 mm, with line speeds of up to 450 m/min under specified production conditions. The equipment is designed to improve production efficiency, reduce material consumption and maintain consistent dripper insertion and punching quality.
Key Features
Up to 450 m/min Production Speed
The line is designed for high-speed production of thin-wall drip irrigation tape. Production speed can reach up to 450 m/min, depending on tape specifications and dripper spacing.

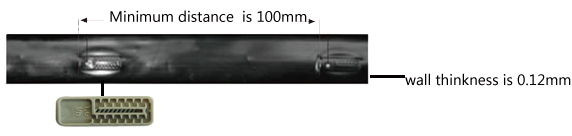

100 mm dripper spacing: up to 400 m/min
200 mm dripper spacing: up to 450 m/min
300 mm dripper spacing: up to 450 m/min
High-Speed Dripper Feeding & Insertion
The production line is equipped with dual dripper feeding units, with a feeding capacity of up to 4,500 pcs/min.
A dripper buffer system helps maintain continuous operation during temporary feeding interruptions. The automatic insertion unit provides stable dripper positioning for high-speed production.
Servo Extrusion System
The extrusion unit adopts a servo direct-drive system to improve transmission efficiency and help reduce power consumption.
The extrusion die head and calibration system are designed for thin-wall drip tape production, with adjustable control of tape wall thickness according to product requirements.
Automatic Punching & Online Inspection
The line can be equipped with four automatic punching units, with punching speeds of up to 4,000 times/min.
An online imaging and monitoring system checks the punching condition during production. When an abnormal punching condition is detected, the PLC system can provide an automatic alarm, helping operators identify and correct production problems promptly.
Lightweight Thin-Wall Drip Tape
Under specified product configurations, ZEANON thin-wall drip irrigation tape can achieve a weight of less than 7 g/m.
The lightweight design helps reduce raw material consumption while maintaining the required tape structure for efficient irrigation applications.
Automatic Winding System
The accumulator works together with the automatic winder to support continuous production and stable material handling during roll changes.
The PLC-controlled winding system can perform metering, cutting, roll changing and winding, reducing manual operations at the final production stage.
Production Process
Extrusion → Cooling & Calibration → Dripper Feeding → Dripper Insertion → Accumulation → Punching → Online Inspection → Metering → Automatic Winding
The integrated production process reduces manual handling between stages and supports stable high-speed operation.
Main Equipment

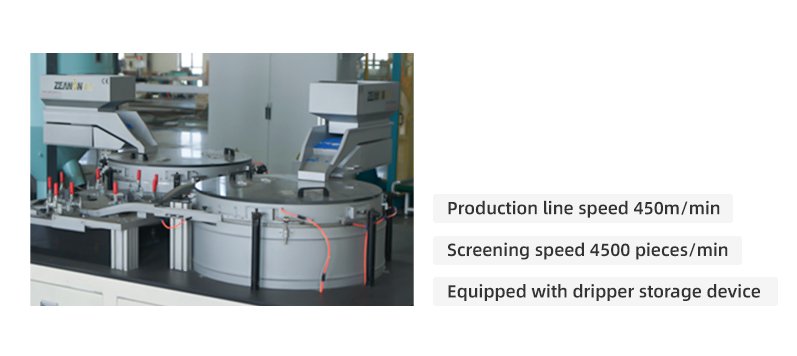

Dripper Feeding & Insertion
The dual feeding system automatically supplies flat drippers to the insertion unit. The buffer device helps maintain stable production when temporary dripper feeding interruptions occur.

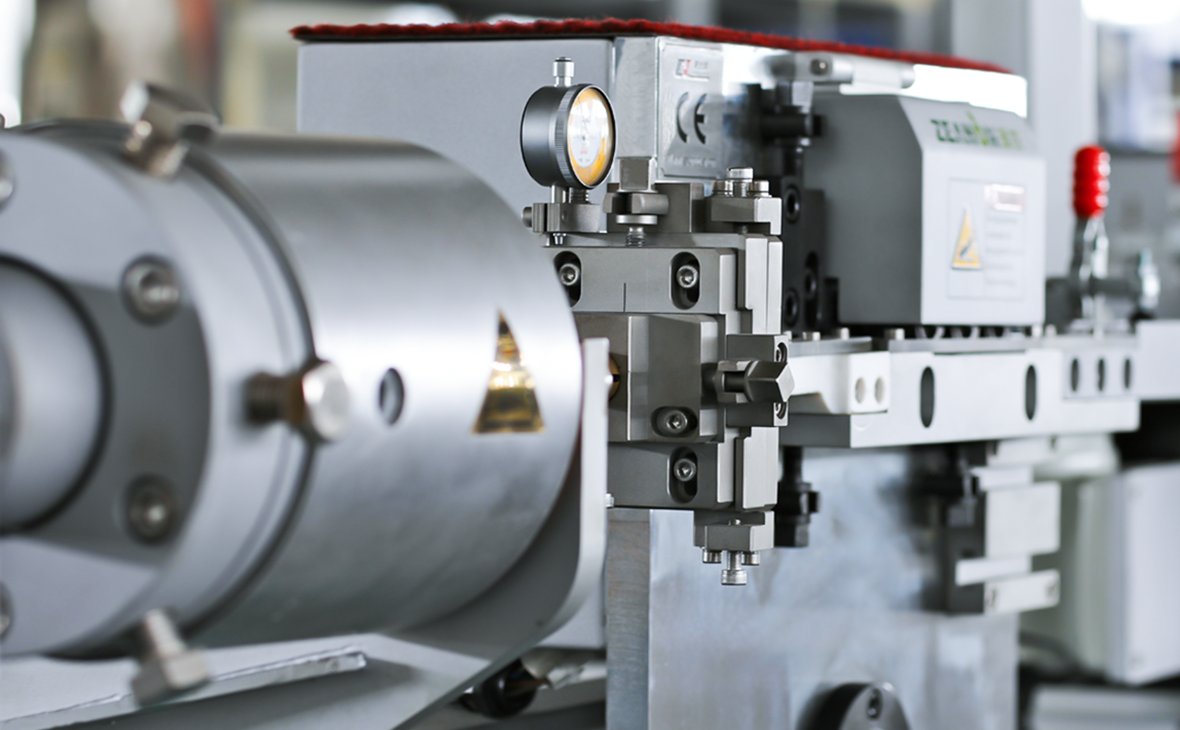

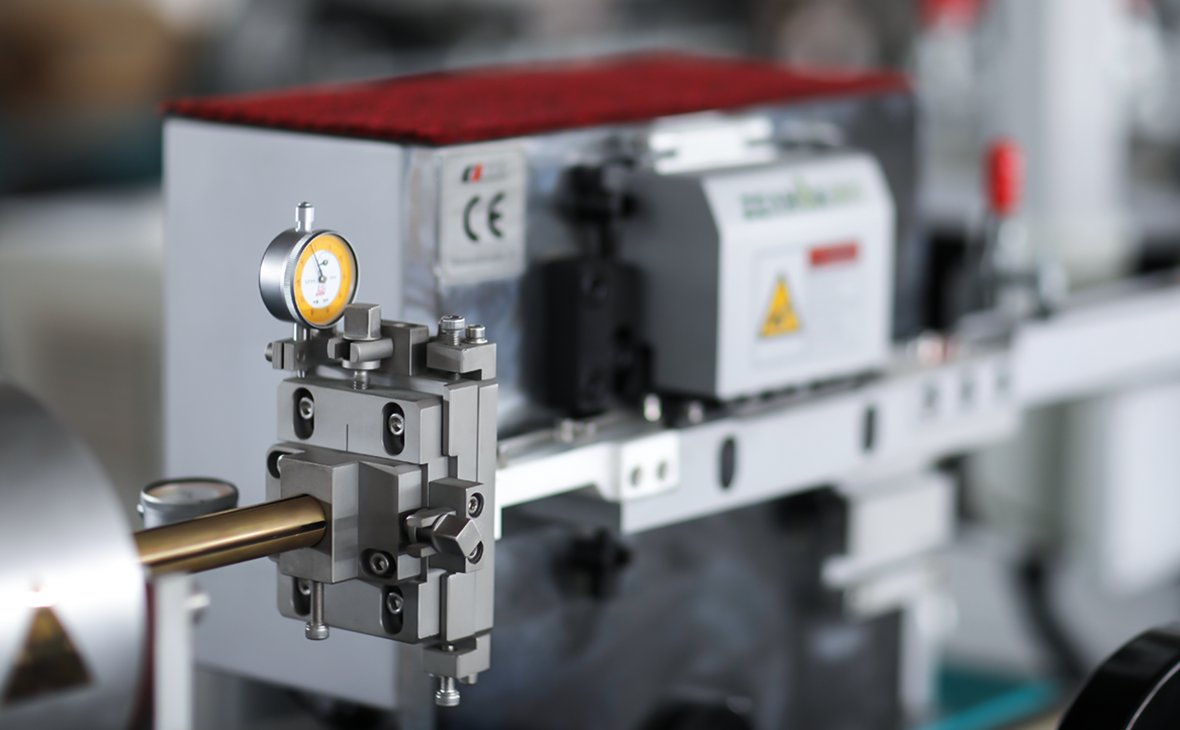

Extrusion & Calibration
The servo-driven extruder provides stable material extrusion for thin-wall drip tape. The die head and calibration section allow adjustment of the tape wall thickness according to the required product specification.

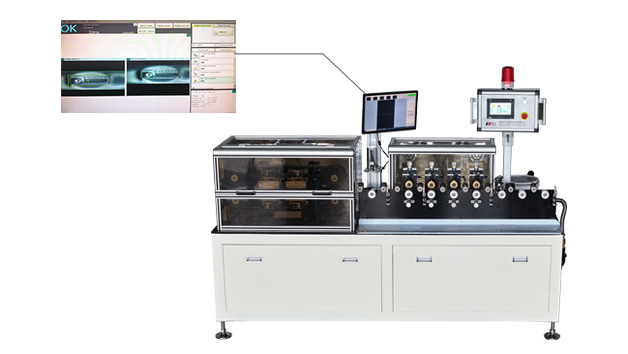

Punching & Inspection
The automatic punching system creates water outlets at the required positions. The online imaging system monitors punching results and provides an alarm when an abnormal condition is detected.

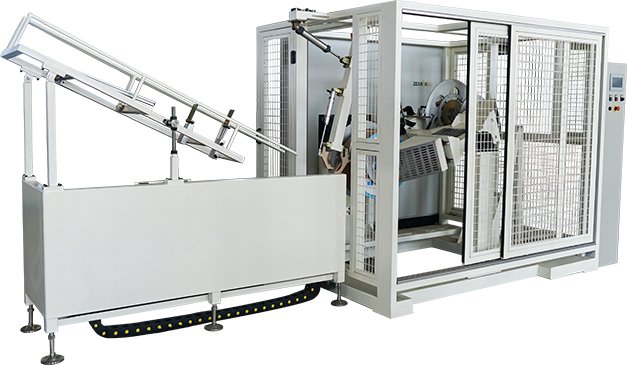

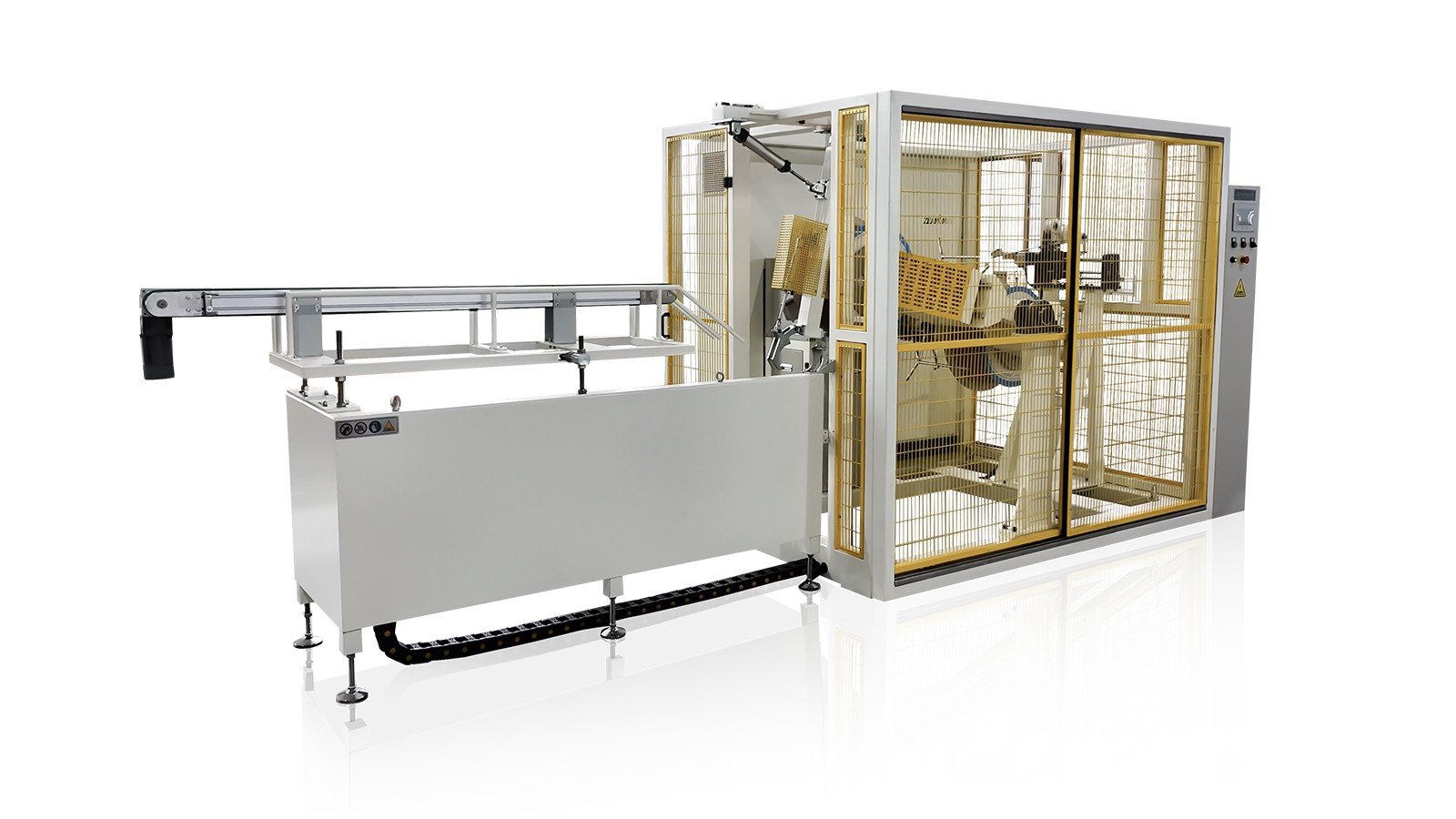

Accumulator & Automatic Winder
The accumulator stores a controlled amount of drip tape between production and winding stages, helping maintain continuous operation. The automatic winder completes length metering, cutting, roll changing and winding.
Applications
The drip irrigation tape produced by this line is suitable for agricultural water-saving irrigation, including open-field crops, greenhouse cultivation and other applications requiring controlled and uniform water distribution.
The production line can be configured according to the required tape specification, dripper type, flow rate, dripper spacing and production speed.
Why Xindacheng
Xindacheng specializes in the development and manufacture of drip irrigation production equipment, drippers, molds and related plastic processing machinery.
The high-speed drip irrigation tape production line combines extrusion, high-speed dripper insertion, precision punching, online inspection and automatic winding into an integrated production solution for irrigation product manufacturers.
CE Certification
Relevant Xindacheng equipment is available with CE certification, supporting the equipment requirements of customers in international markets. Certification and equipment configuration can be confirmed according to the specific project.

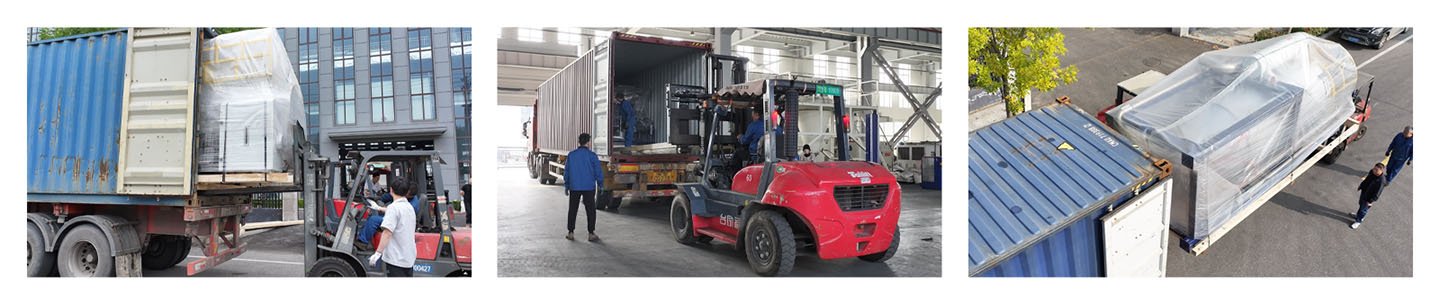

Global Equipment Delivery
Xindacheng provides international equipment delivery for drip irrigation production projects. Production lines are assembled, tested and prepared for overseas shipment according to the confirmed technical configuration.

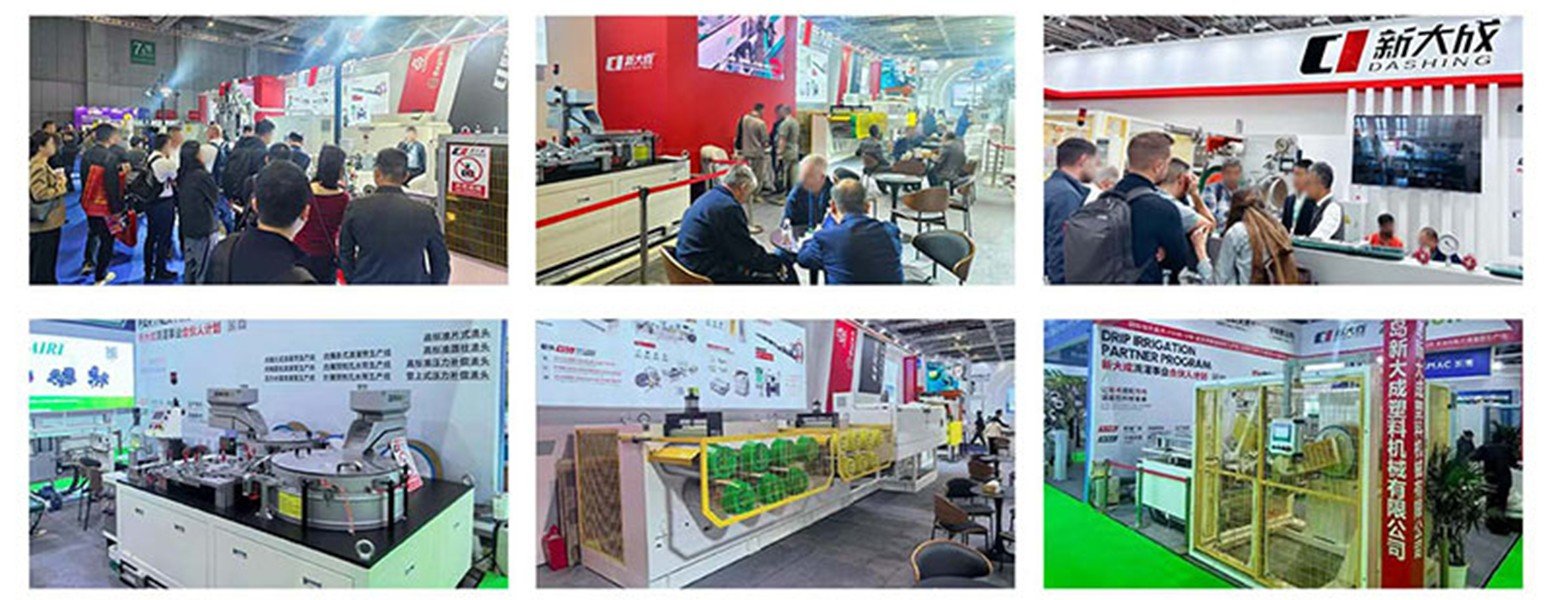

Exhibition Experience
Xindacheng regularly participates in international plastics and irrigation industry exhibitions, presenting drip irrigation production lines, drippers, molds and related equipment to manufacturers and industry professionals from different markets.
Cooperation & Industry Experience
Xindacheng works with customers and industry partners in different international markets. Our equipment solutions cover drip irrigation tape and pipe production, dripper manufacturing and related plastic processing applications.
Request Technical Information
For a suitable drip irrigation tape production line configuration, please provide your required tape diameter, wall thickness, dripper type, dripper spacing and target production speed. Our technical and sales team can recommend an appropriate production configuration based on your requirements.
