Drip Irrigation Pipe Production Line

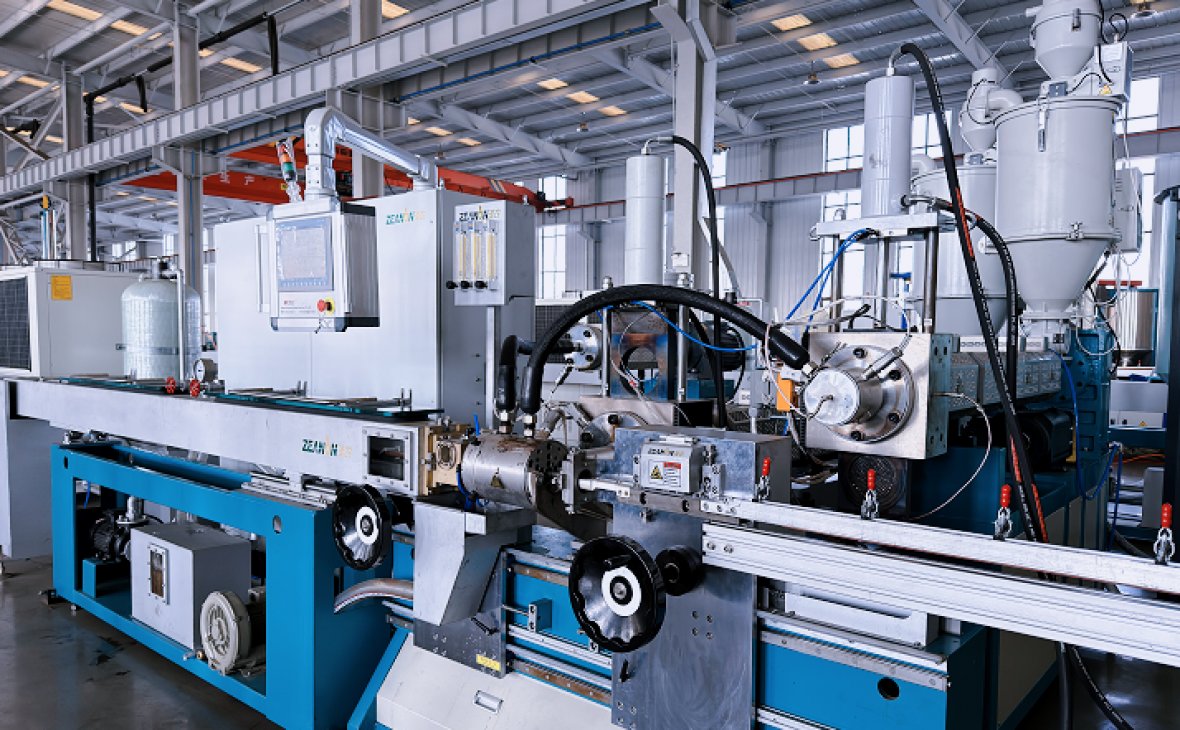

Pressure Compensating Drip Irrigation Pipe Production Line
Technical Features
Model | Pipe diameter | Pipe thickness | Highest speed | Distance of dripper |
PC drip irrigation pipe Production Line | Φ16-20mm | 0.5-1.2mm | 160m/min | 100-1000 (optional) |
Product Description
The pressure compensating drip irrigation pipe production line effectively solves common irrigation challenges such as uneven terrain, long-distance water supply, pressure fluctuation and inconsistent irrigation output. It is specially designed for the stable, high-speed and continuous production of in-line pressure compensating drip irrigation pipe, helping customers improve product quality and competitiveness in the drip irrigation market.
By integrating precision mechanical structure, intelligent PLC control and mature extrusion technology, the line ensures high efficiency, stable operation and consistent finished product performance.
Working Principle of Pressure Compensating Drip Pipe
The core of pressure compensating drip irrigation pipe lies in the elastic silicone membrane and specially designed flow channel inside the dripper.
When the inlet water pressure fluctuates within a certain range, the elastic membrane automatically adjusts the flow cross-section, ensuring a nearly constant water output. This allows uniform irrigation even under varying pressure conditions, making it ideal for sloped land, long pipelines and large-scale agricultural projects.
Core Components & Key Features

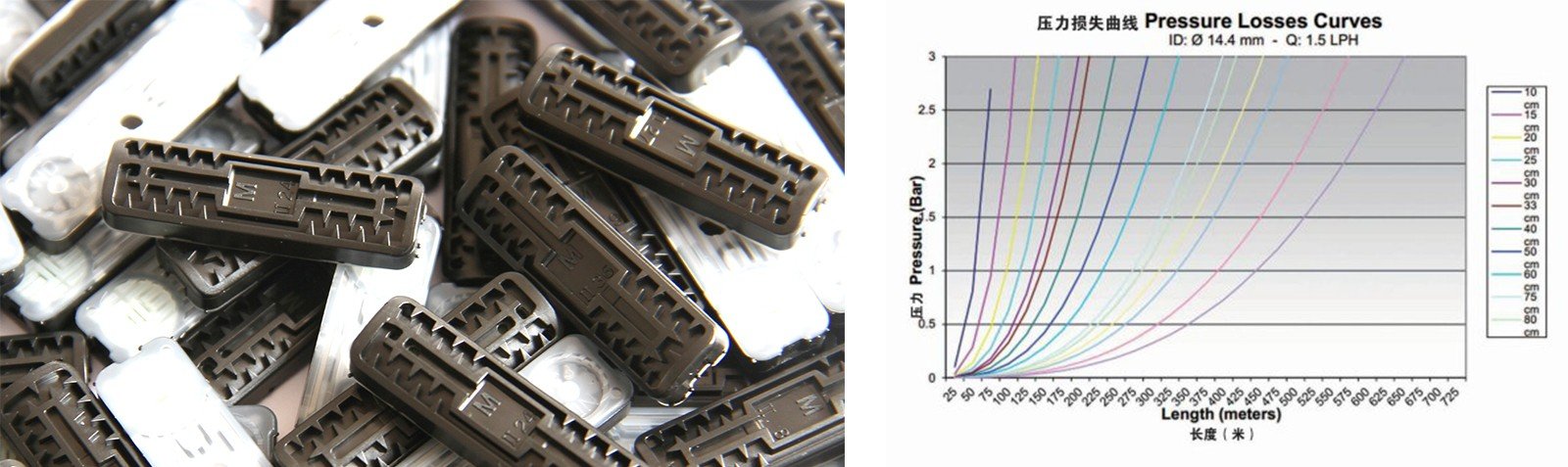

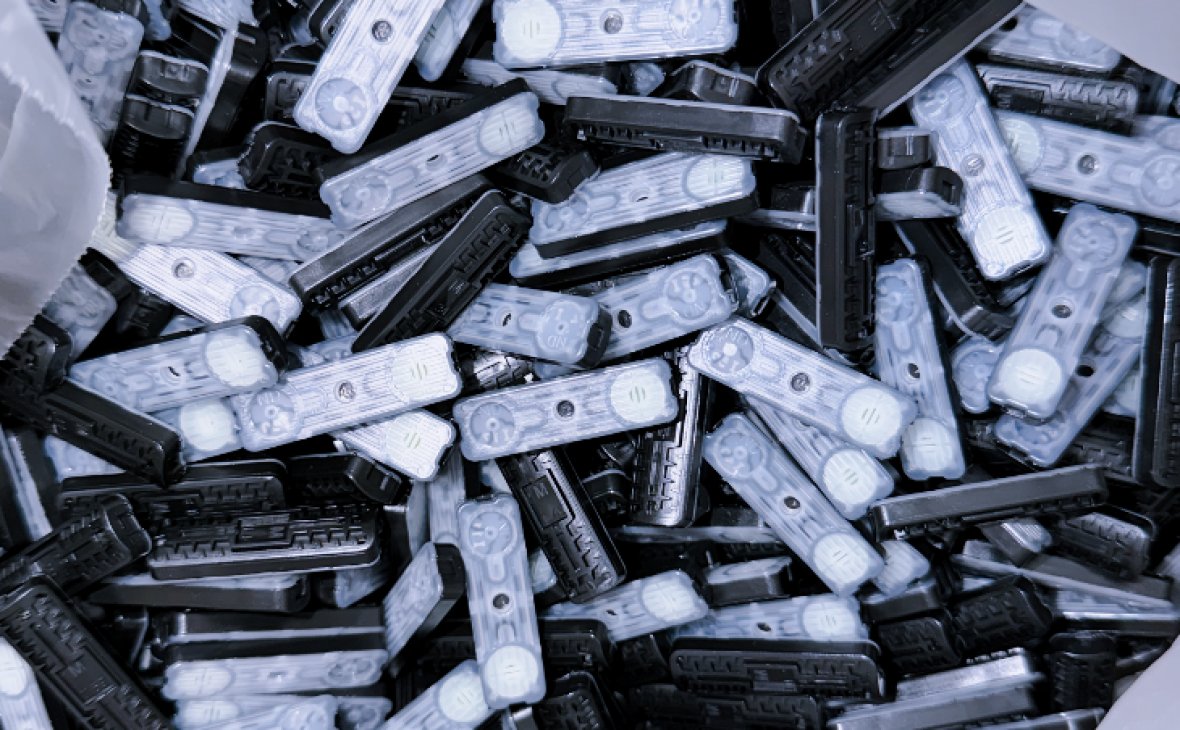

Pressure Compensating Dripper Features
Advanced pressure compensating dripper design
Long service life of dripper materials
High flow stability under continuous operation
Excellent pressure compensation performance
Suitable for high-pressure working environments
Meets Grade A drip irrigation tape quality standards

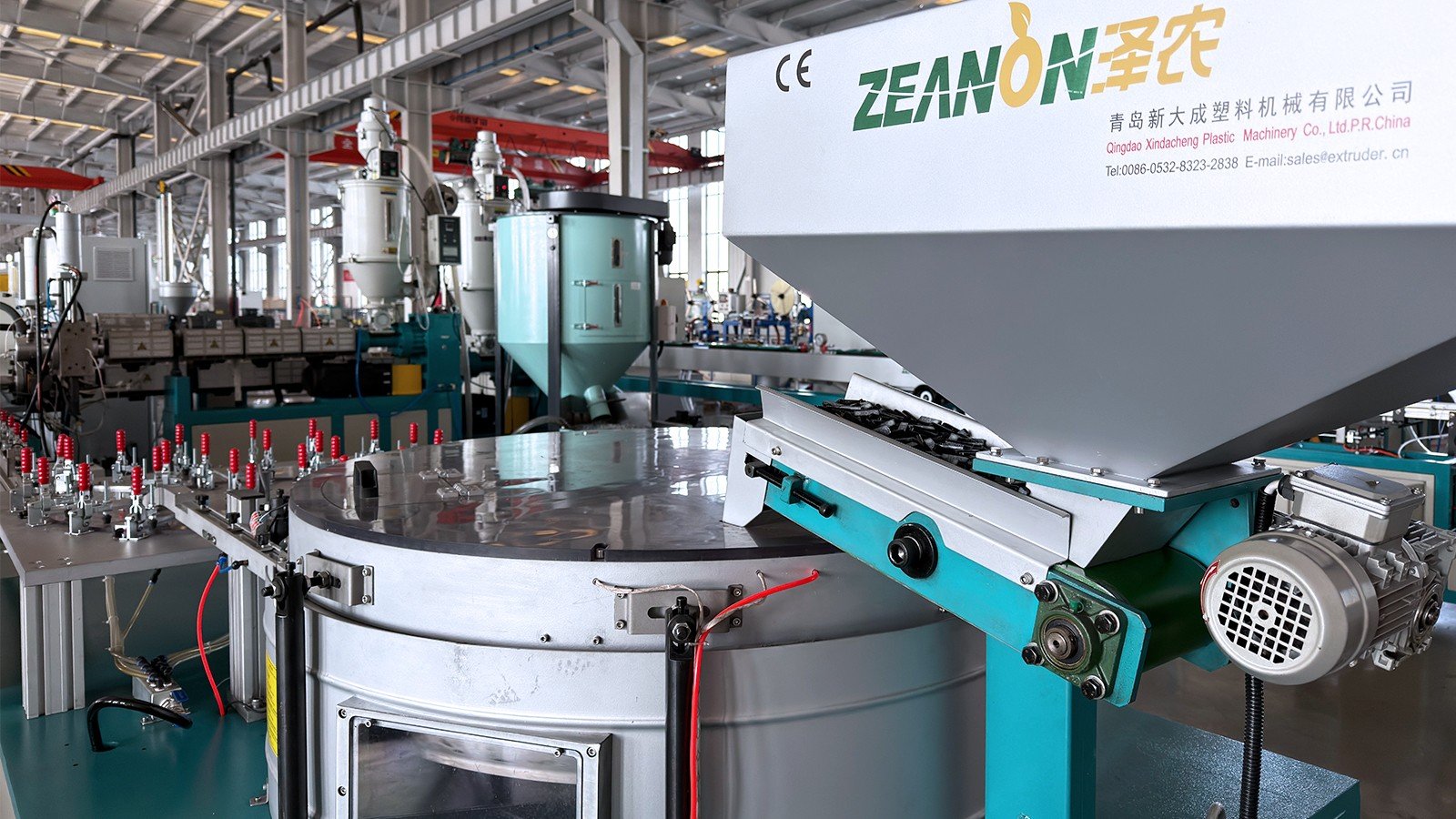

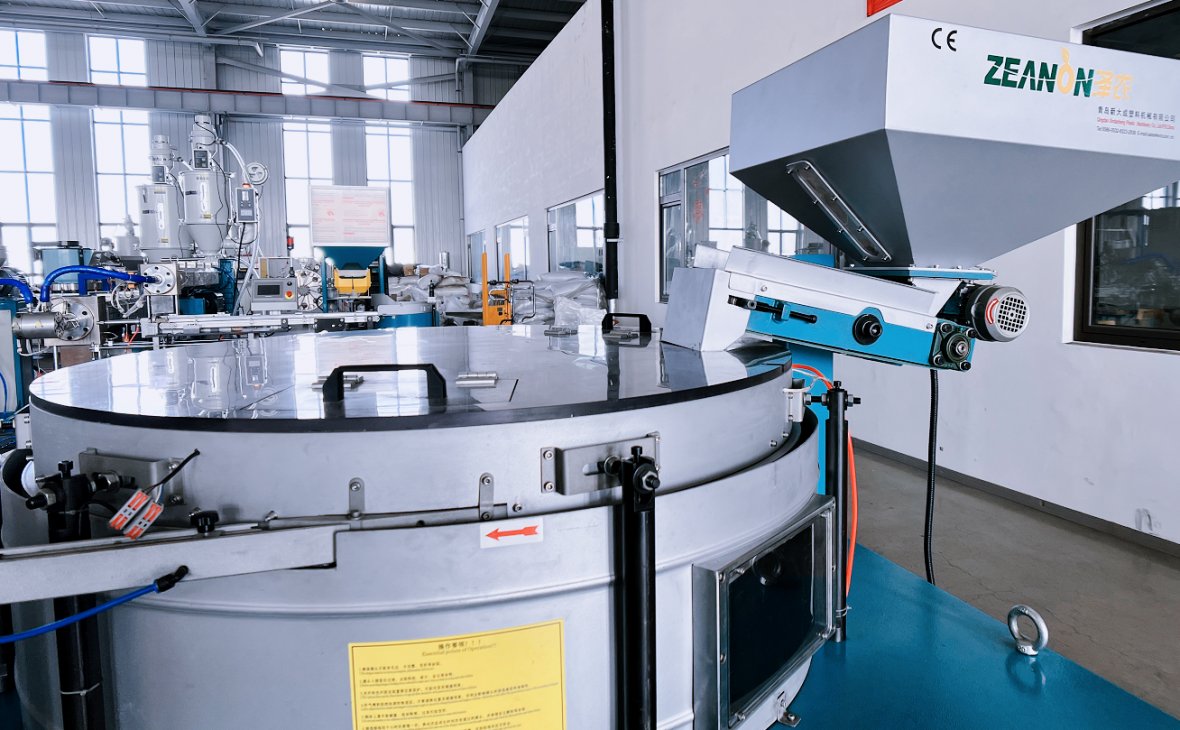

Automatic Dripper Selection & Feeding System
Dripper sorting and identification capacity: up to 1,200 pcs/min
Compatible dripper size range: Φ16–20 mm, suitable for pressure compensating and intermediate flow drippers
Feeding speed up to 800 pcs/min
High-precision servo-controlled dripper inlaying system
Dripper feeding speed and spacing adjustable via PLC + HMI interface

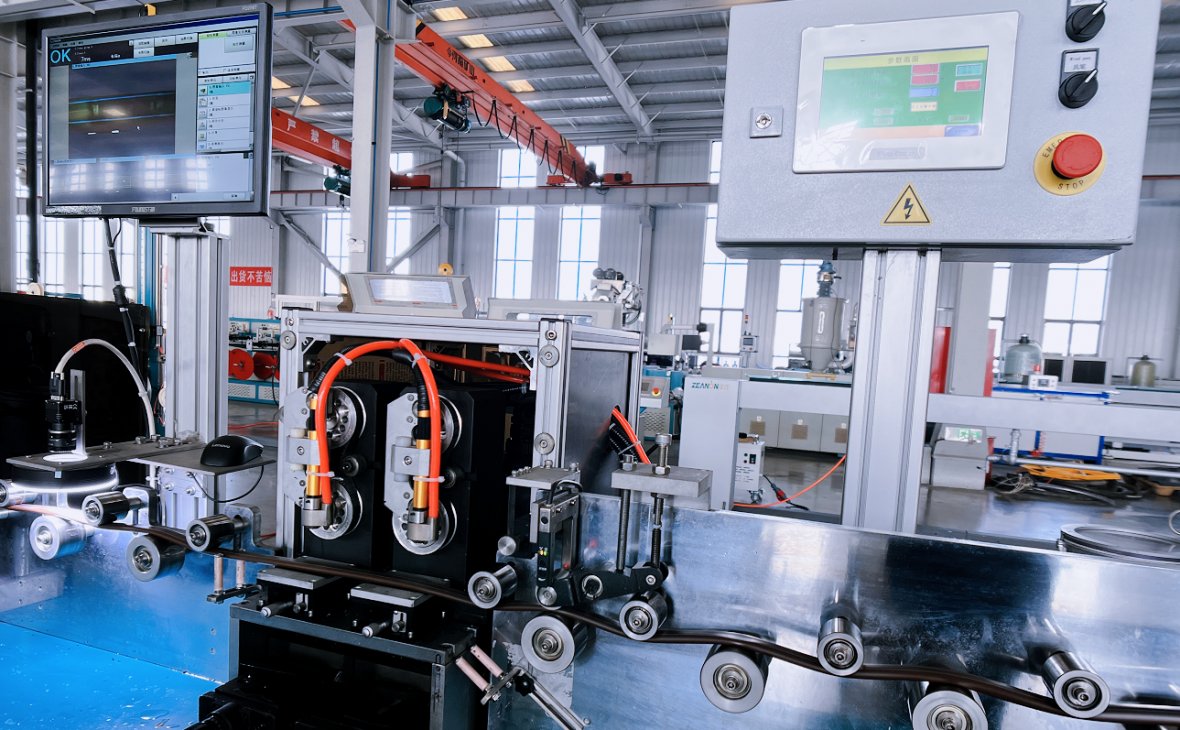

Fully Automatic Punching Unit
Equipped with mature dual-head punching technology
Punching speed up to 1,000 holes/min
Servo motor driven for high accuracy and long service life
Flexible punching position combinations for different market requirements
Real-time punching status monitoring with remote service support

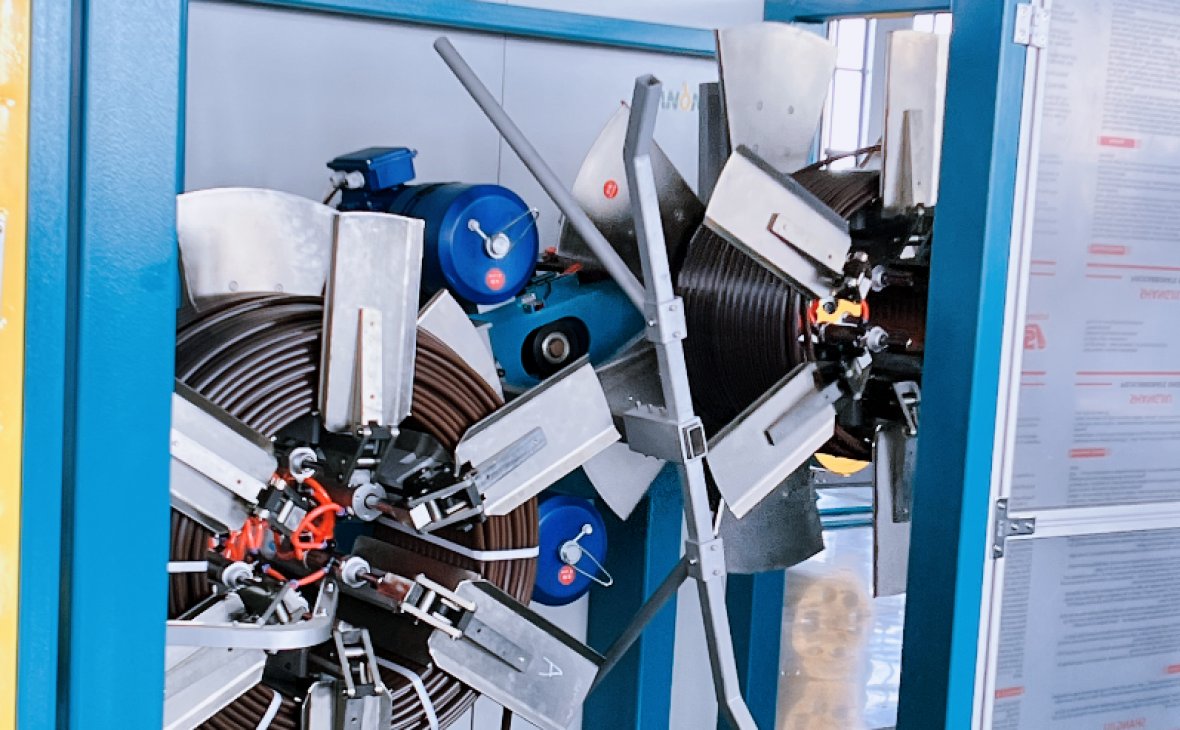

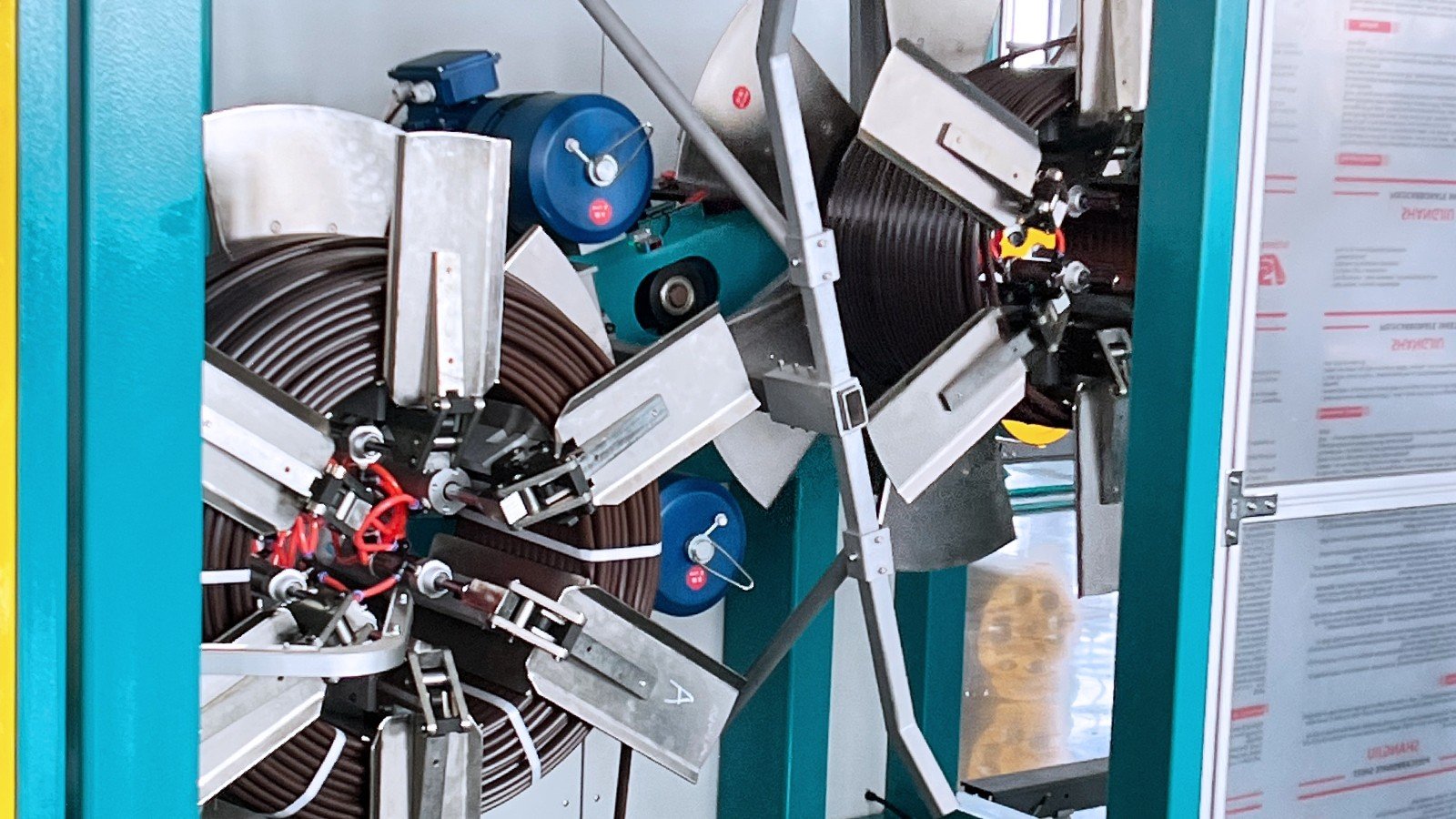

Dual-Station Automatic Winding System
Automatic winding and accumulation with winding speed over 100 m/min
Servo-driven system for automatic pipe guiding, winding, cutting, roll changing, length counting and labeling
Winding speed and roll parameters easily adjustable through PLC control system

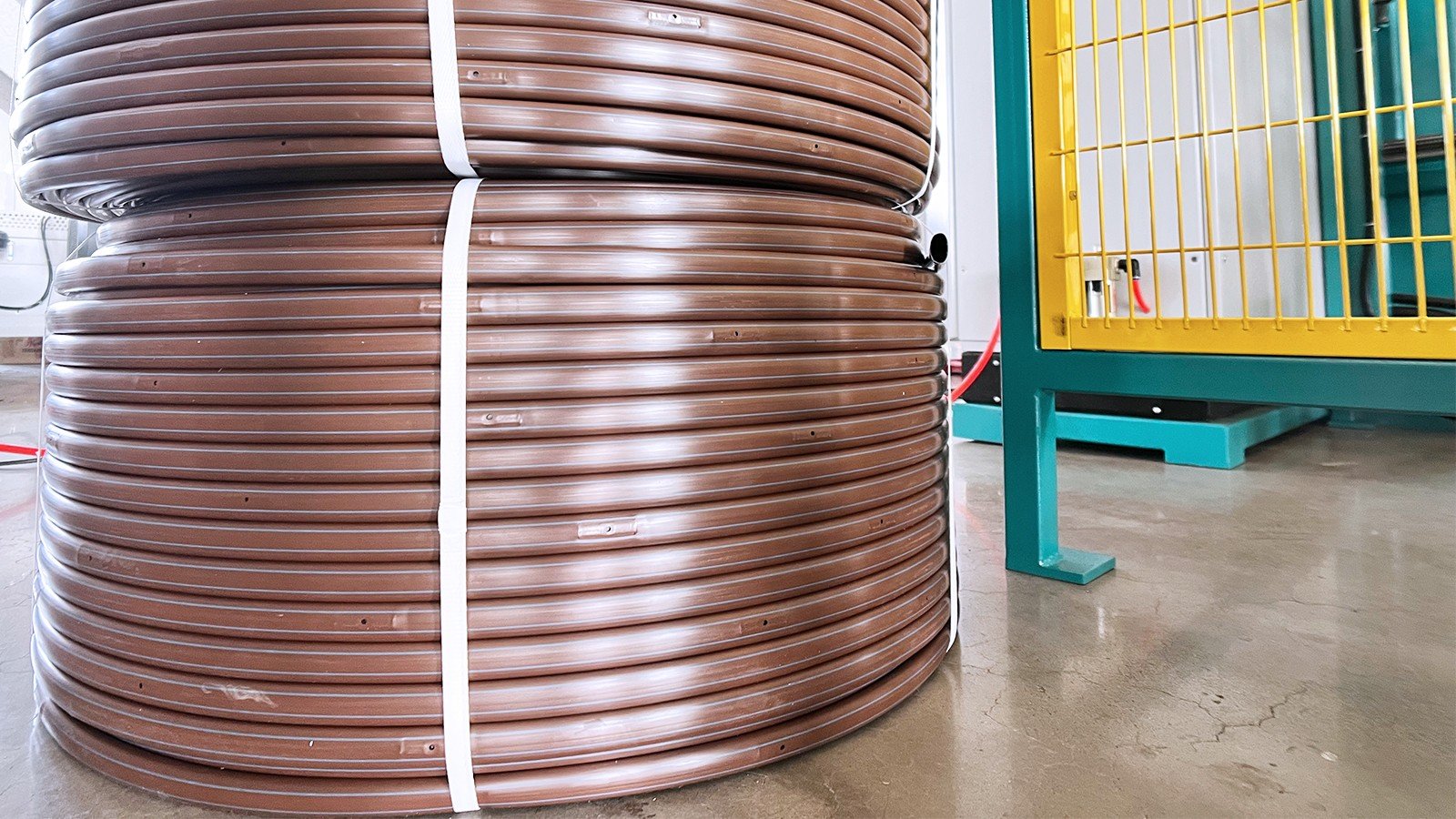

Finished Product: Pressure Compensating Drip Irrigation Tape
The produced pressure compensating drip irrigation tape is equipped with high-performance PC drippers, ensuring uniform water output within a defined pressure range.
Key advantages:
Strong anti-aging performance
Easy installation and maintenance
Suitable for vegetables, orchards, greenhouses and large-scale agricultural irrigation
Ideal for economic crops and precision irrigation projects
Applications
Large-scale agricultural irrigation projects
Greenhouse irrigation systems
Orchards and vineyards
Uneven terrain and long-distance water supply systems
Why Choose This Production Line
Stable high-speed production
High automation level, reduced labor cost
Consistent product quality
Designed for long-term continuous operation
Suitable for mass production of pressure compensating drip irrigation tape
