Strap Auxiliary Equipment

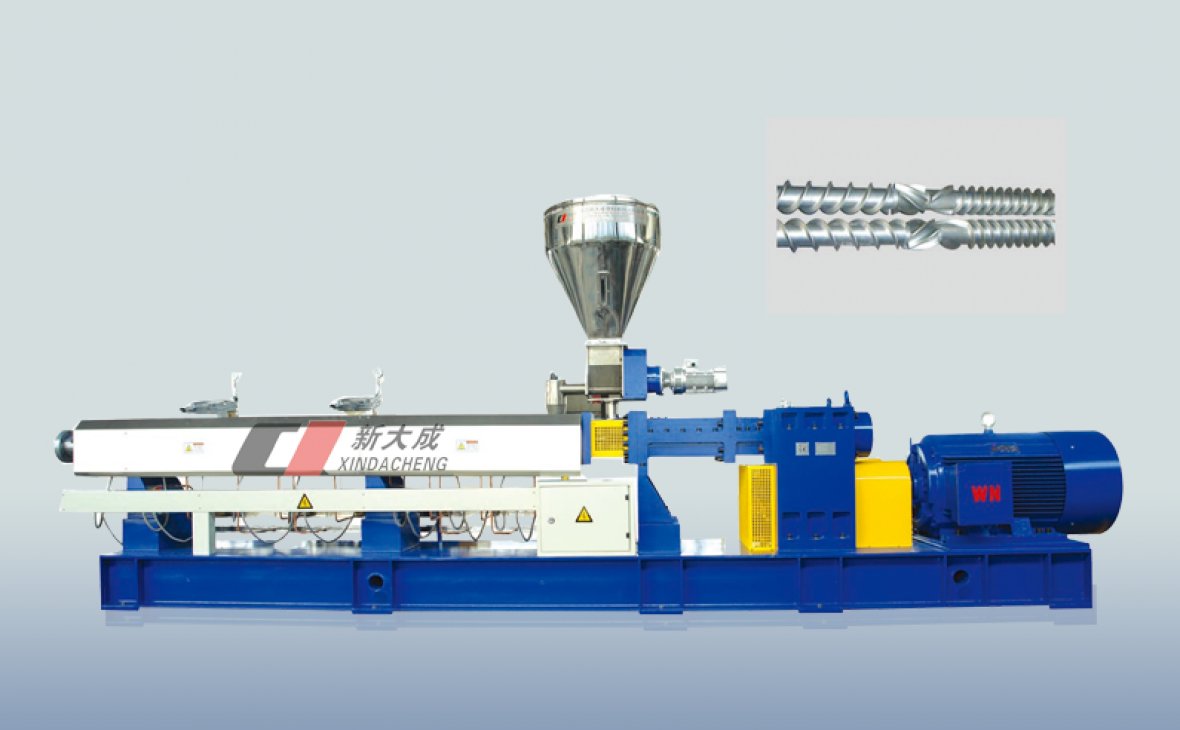

Packing belt extruder

Main technical parameters:

Items/Model
TSE50/40
TSE65/40
TSE75/40TSE90/40
Screw diameter(mm)
50
65
75
90
L/D
36-40/1
36-40/136-40/136-40/1
The screw rev(r/min)
400-600
400-600400-600400-600
Max.extruding capacity(kg/h)
100-150
200-300
400-600
800-1000
Motor power(kW)
30-55
75-110
132-185
185-250
Heating power
26
30
40
55

1.It can use 100% recycle or virgin material.

2.A special extruder screw along with two very powerful vacuum venting device, to effectively remove moisture and other impurities from the material, the advantage of using twin-screw extruder is that unlike single extruder, it dose not require crystallizing and drying system.

3.Powerful mixing functionality, it can be mixed in any proportion with high viscosity material or recycle material.

4.Choice of choosing anti-clock wise or clock wise rotation.
