Drip Irrigation Pipe Production Line

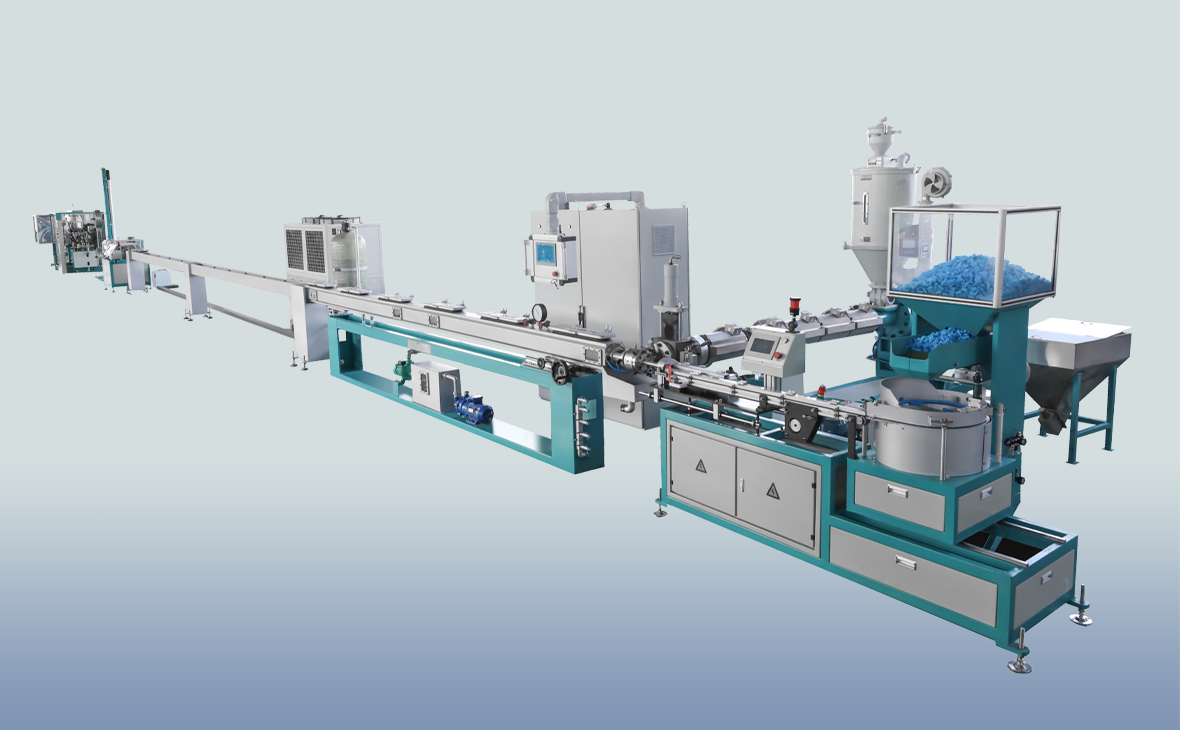

Cylindrical dripper irrigation pipe machine

Technical parameter:

ItemPipe diameterPipe thicknessProduction speedDistance of dripperNumber of punched holes
Ordinary speedΦ12-16-20mm0.5-1.5mm80m/min100-1000mm2 holes


Product description:

Cylindrical dripper irrigation pipe machine, is also called Cylindrical dripper irrigation pipe extrusion line, Cylindrical dripper irrigation pipe production line.

Feature 1: Be used for identification and inserting round dripper, PC dripper of all length(optional).

Feature 2:

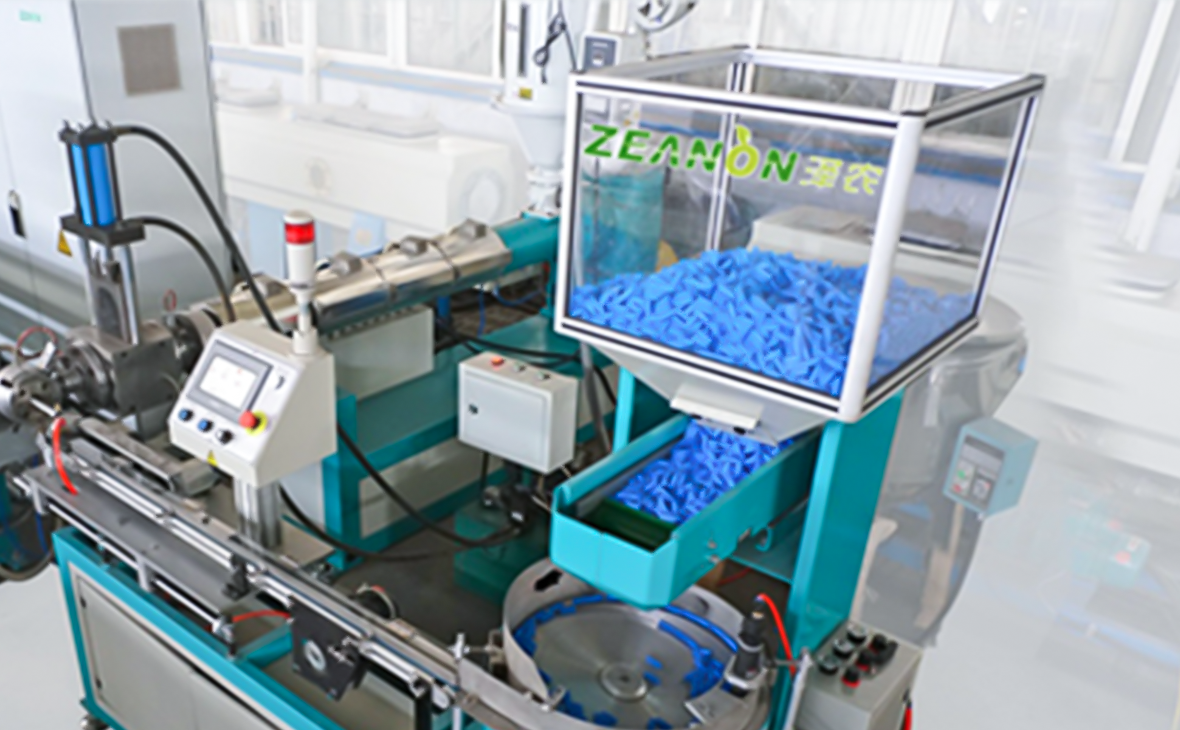

• High-speed dripper screening and insertion system.

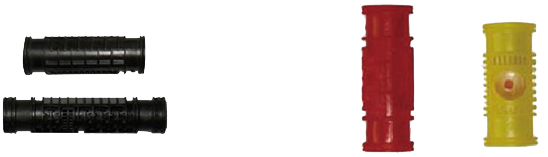

• Be used for identification and inserting Φ12-16-20mm round dripper.

• Inserting speed: 400pcs/min.

• With servo driving very precisely controlled dripper insertion system.

• Dripper screening, inserting, space are operated by PLC system.

Feature 3:

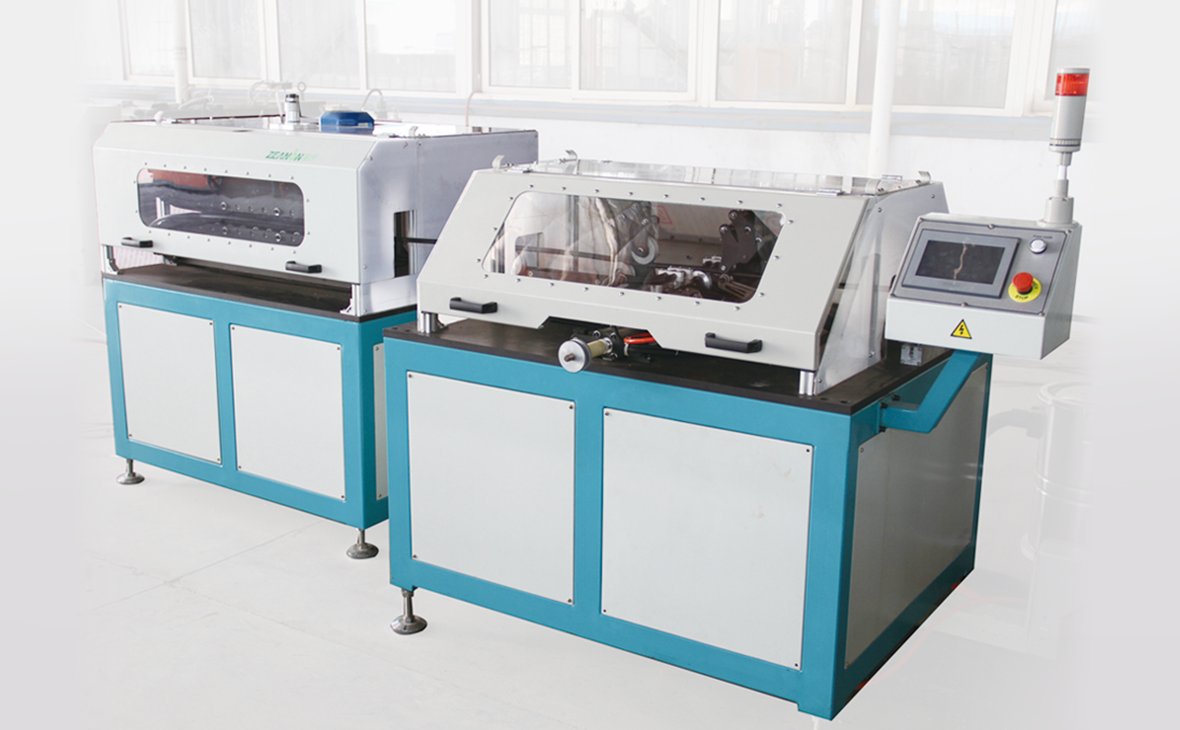

• Automatic punching technology.

• Speed:400pcs drilling/min.

• Used for driling double drip hole,four drip hole.

• Controlled by serco motor,to achieve precision drilling.

• Provide customer with remote support service.

Feature 4:

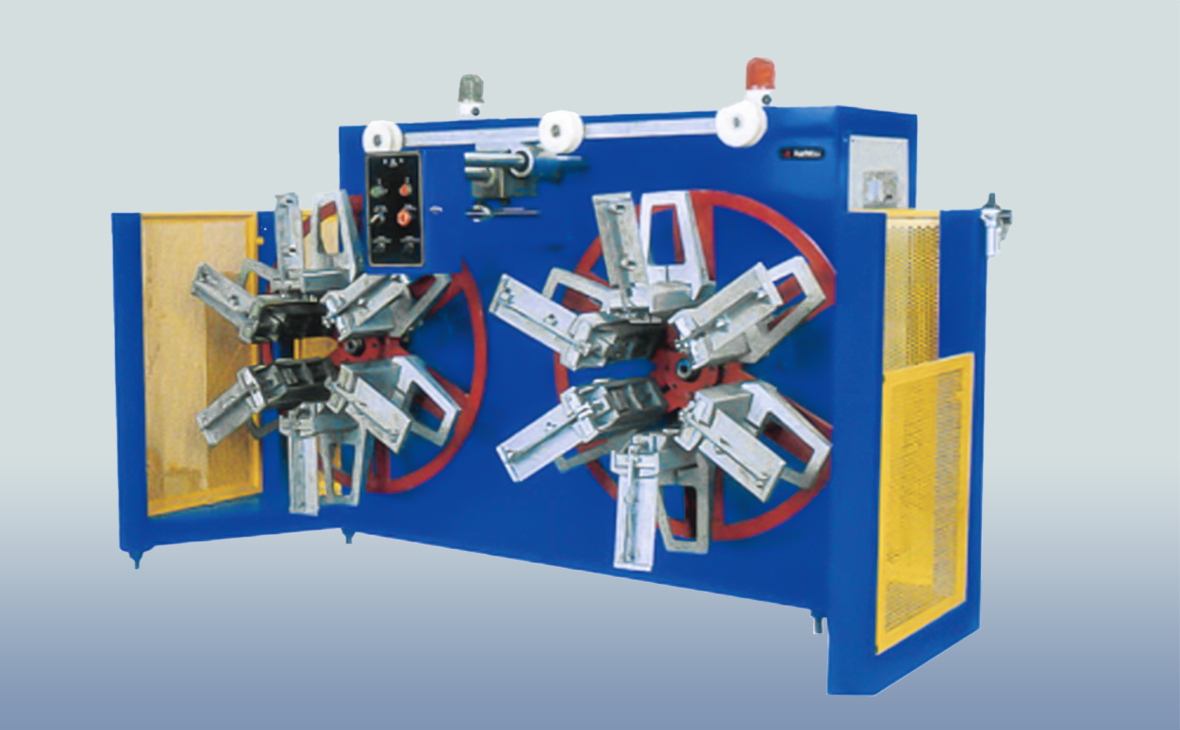

• Double station automatic winder.

• Automating the automatic line, winding, changing, and metering of drip irrigation pipes.

• The winding speed and the number of meters per roll are easily controlled by the PLC man-machine interface.

• The production speed of the equipment is 80m/min.
