Drip irrigation Pipe System

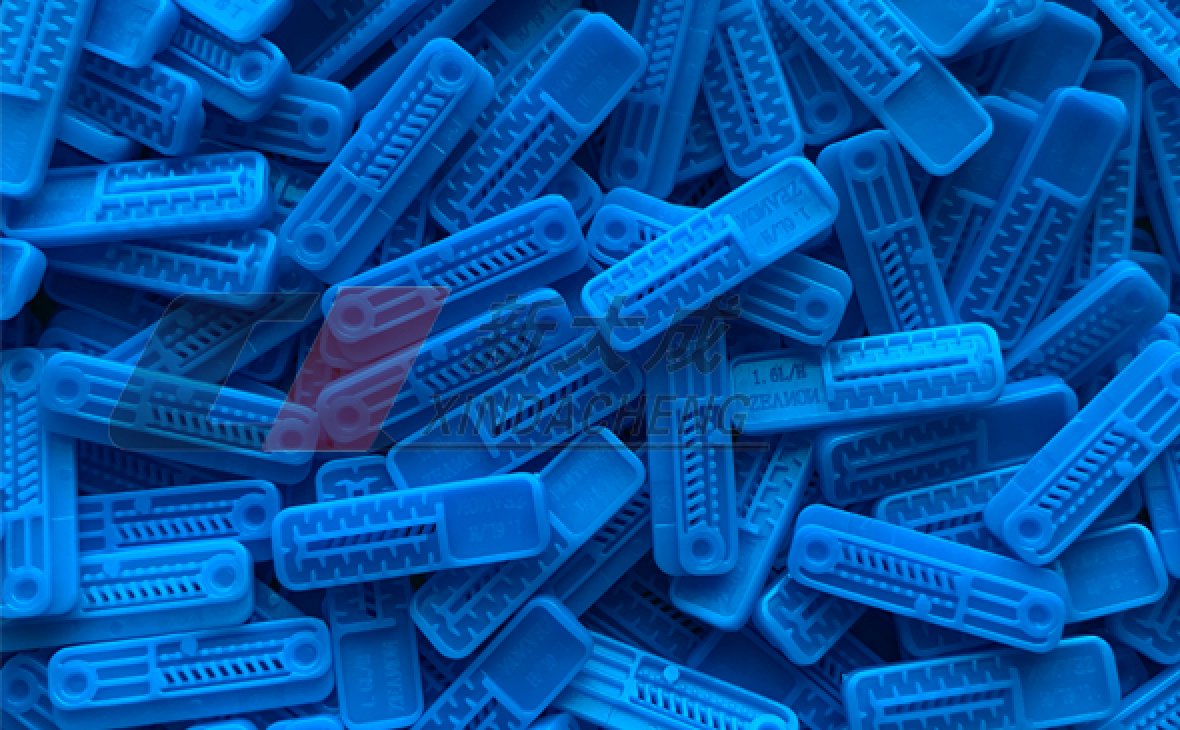

Flat dripper & pipe

Product description:

We XINDACHENG produce single-hole dripper, middle-hole dripper, double-hole dripper and pressure-compensated dripper, and the corresponding flat drip irrigation pipe/tape.

Our dripper Injection molds  are imported directly from Europe and technical cooperation. Ensure that the technical process and dripper accuracy of the product reach the advanced level in Europe.

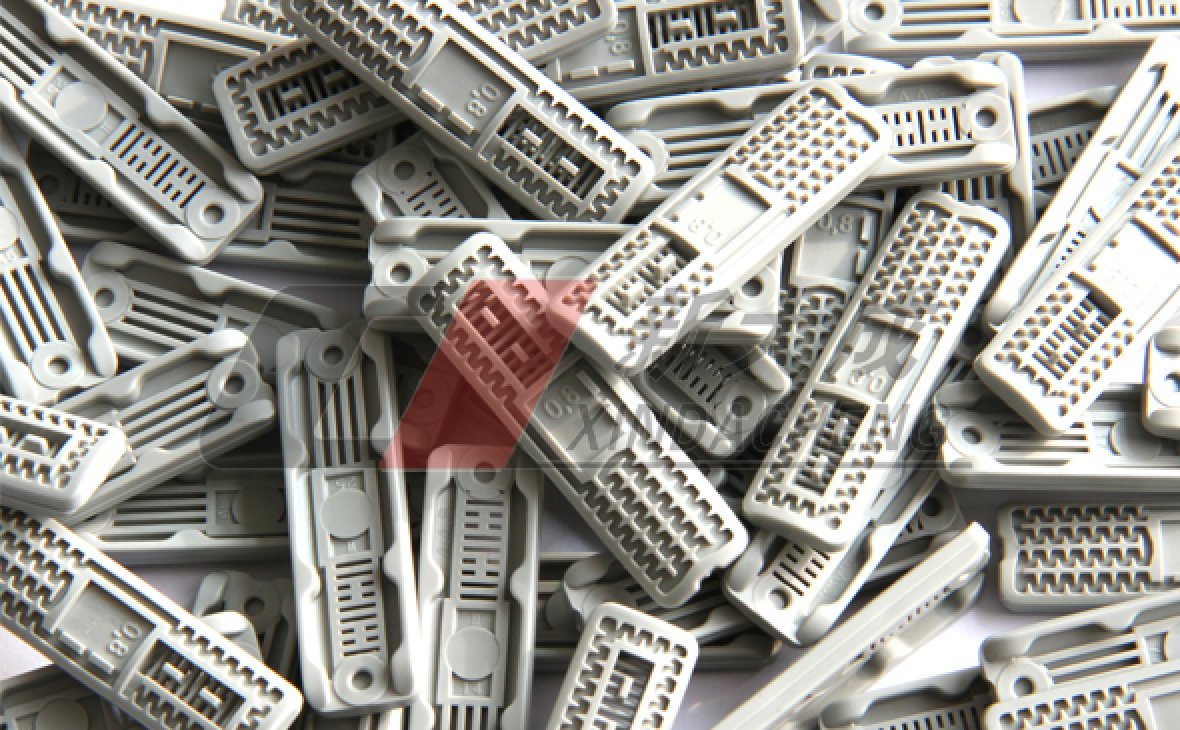

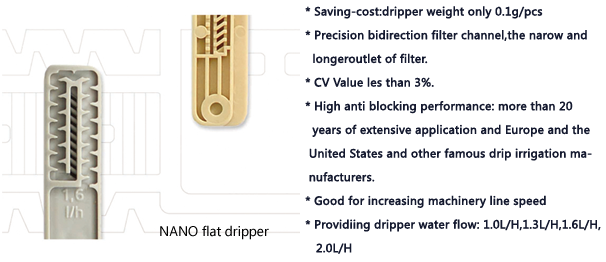

"ZEANON"Anti-blockFLAT DRTPPER:

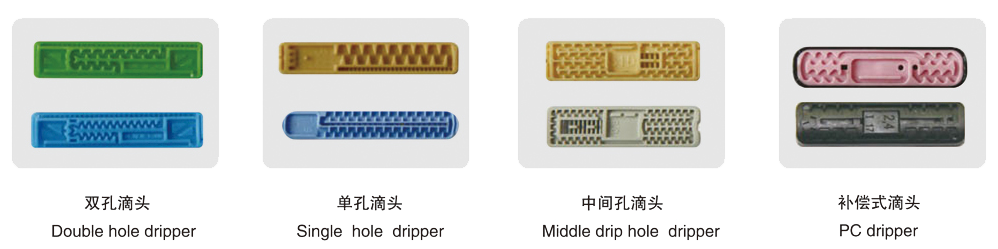

Different kinds of drippers:

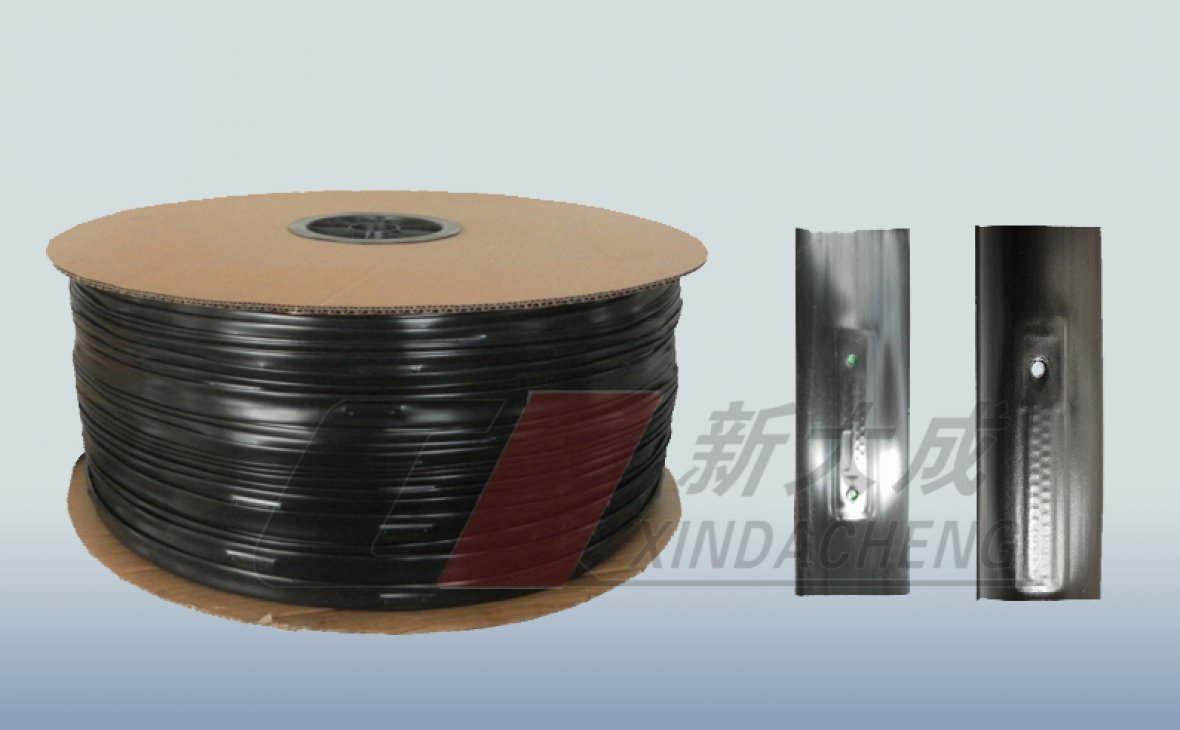

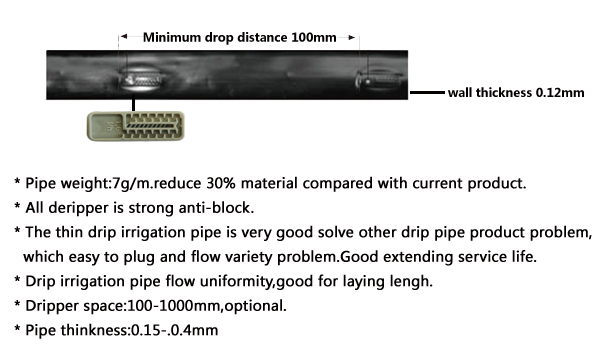

Thin-wall flat drip irrigation pipe:


Permanently fixed within a set of seamless drip tape emitters, seamless structure, improving the ability to withstand pressure fluctuations. Using the most advanced and modern equipment, computer for on-line quality control to ensure reliable and stable quality of the pipe. PE produced with super pure raw materials, to ensure a very small dimensional tolerances and a high degree of scalability. Long enough and unique vortex flow channel and the wide cross-section, uniform flow, and a certain compensation performance. Widely used in high density planting crops.

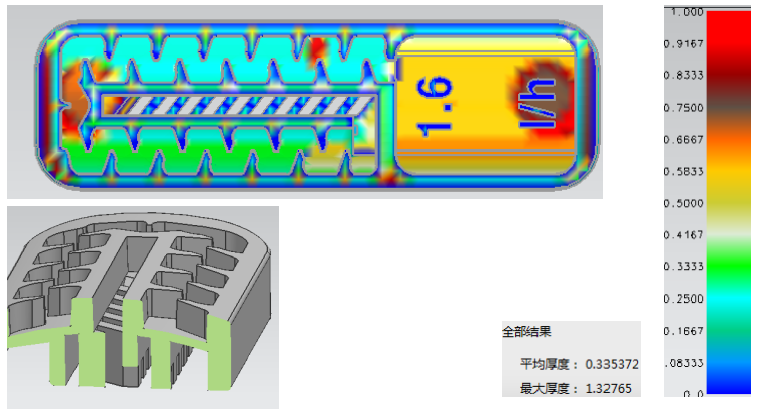

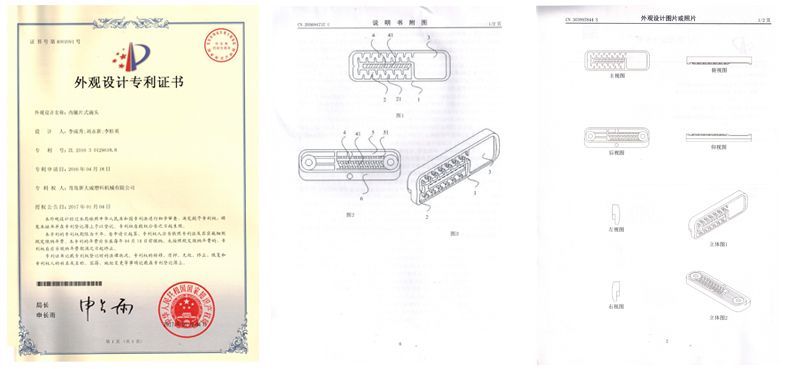

     ●XINDACHENG Flat Dripper Patent Technology:

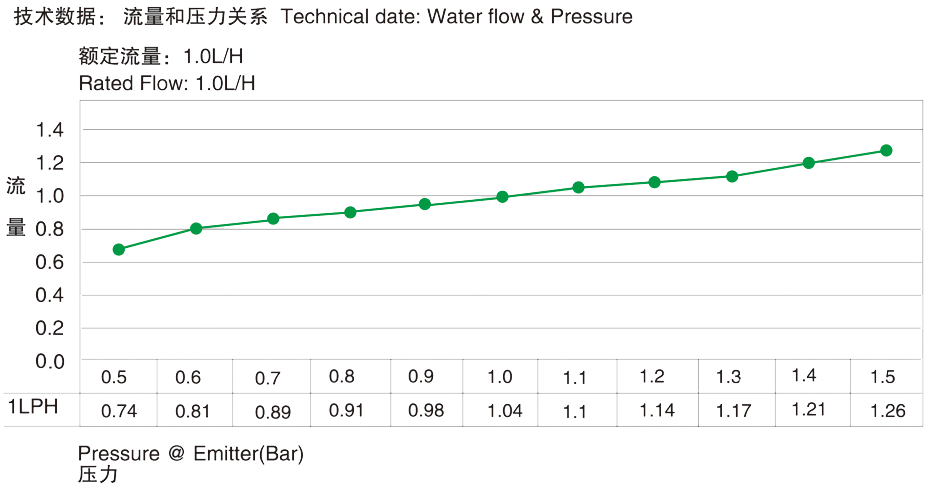

Technical parameter:

1. Irrigaion pipe with single or double  hole dripper:

Pipe Diameter(mm)

12、16、20

Thickness(mm)

0.2

0.25

0.3

0.4

0.6

Dripper distance(mm)

200

300

400

500

1000

Flow

1.1L,1.4L,1.6L,2.2L,3.2L,4L

Lenth/per coil(m)

2000

2000

1500

1000

500


2. Irrigation pipe with compensate type dripper:

Pipe Diameter(mm)

12、16、20

Thickness(mm)

0.2

0.25

0.3

0.4

0.6

Dripper distance(mm)

200

300

400

500

1000

Flow

2L,4L

Lenth/per coil(m)

2000

2000

1500

1000

500


3、Technical parameter MAXIMUM RECOMMENDED LENGTH(Meters):

Pressure(bar)

1.2

2.0

1.5

3.0

3.5

4.0

4.5

Emiter Space

(mm)

150

81

95

107

116

124

131

137

200

103

122

136

148

158

167

175

250

124

147

164

178

191

202

212

300

144

180

190

207

221

234

245

330

155

183

205

223

239

252

265

400

181

214

239

260

278

294

308

500

215

254

284

309

330

350

367

600

246

291

326

354

379

401

421

750

290

343

384

418

447

473

497

800

304

360

405

438

469

496

521

900

331

391

438

477

511

541

568

1000

357

422

473

515

551

583

612
