Double Wall Corrugated Pipe Machine

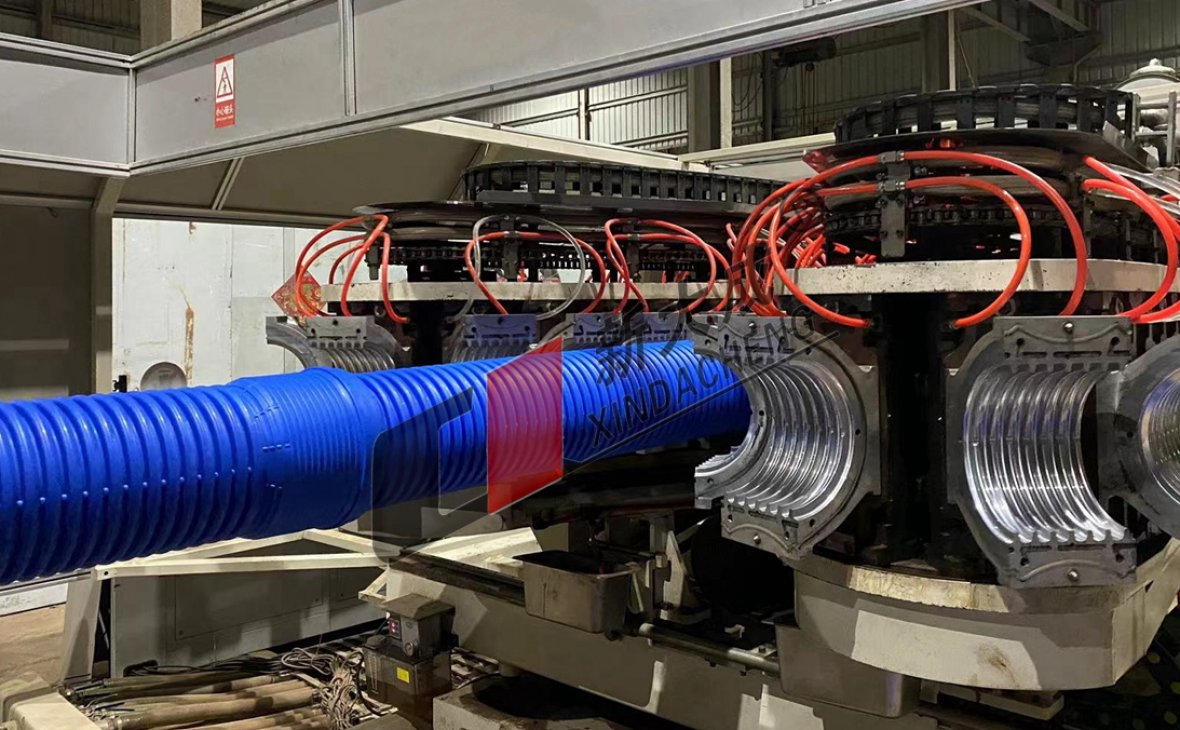

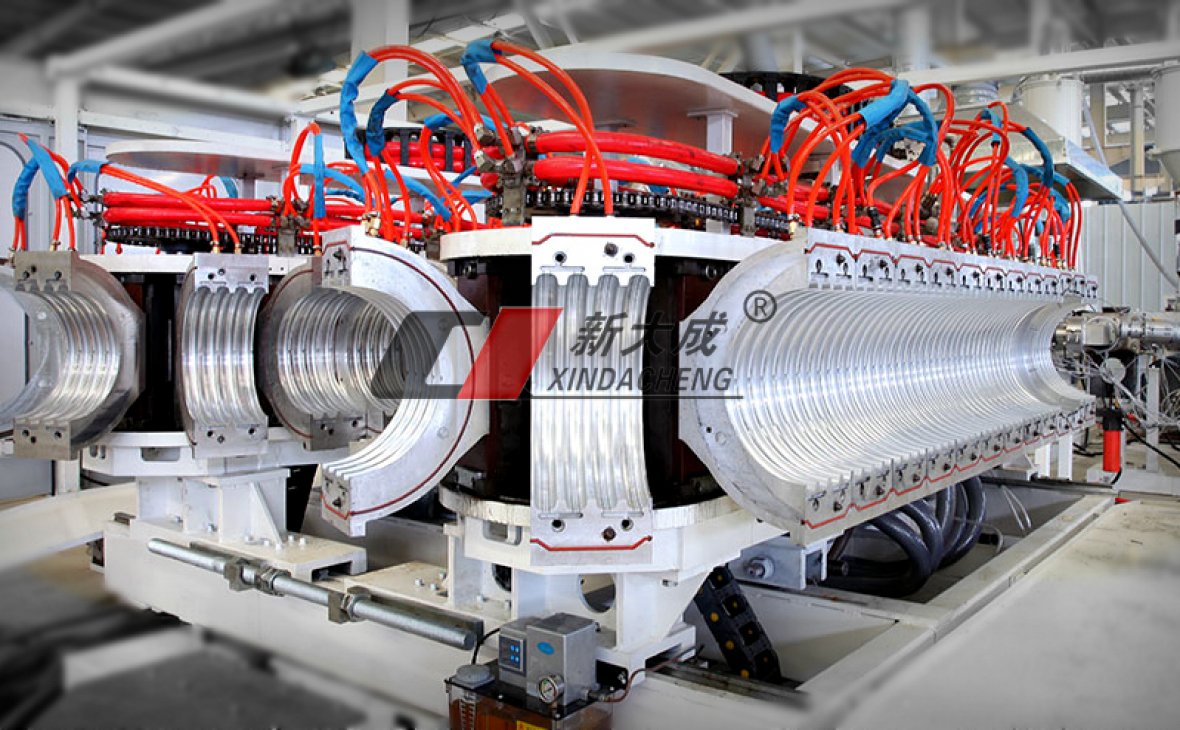

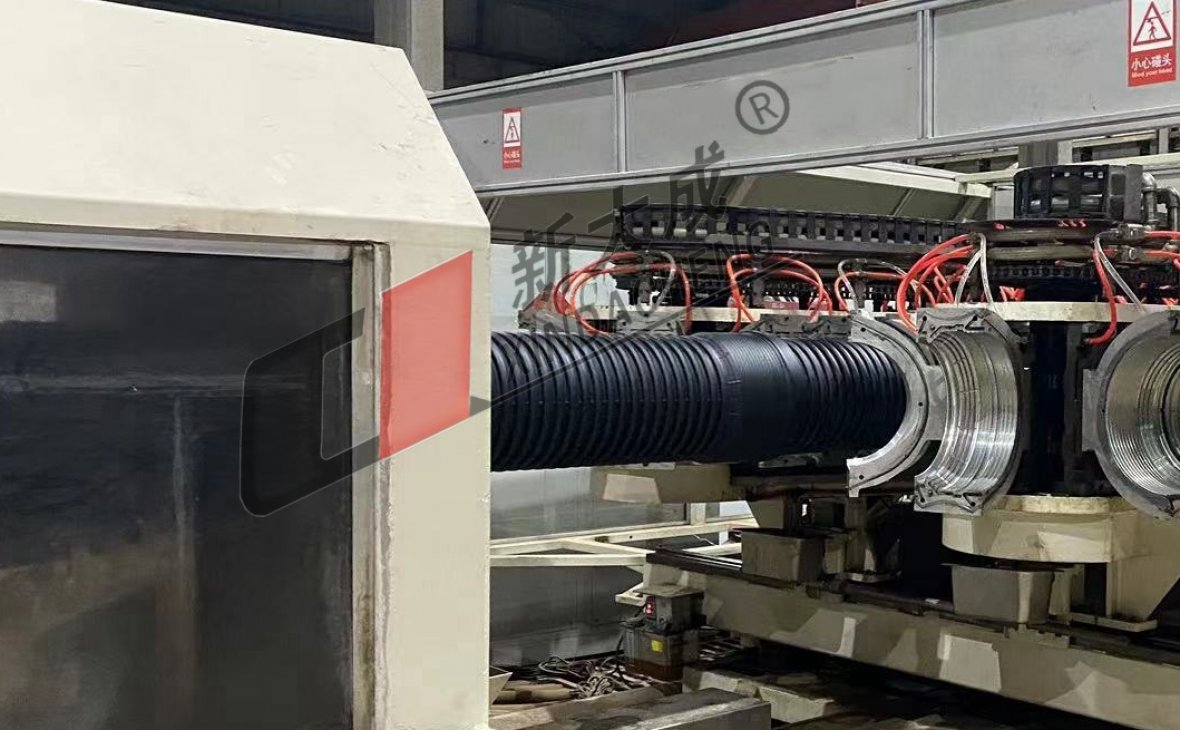

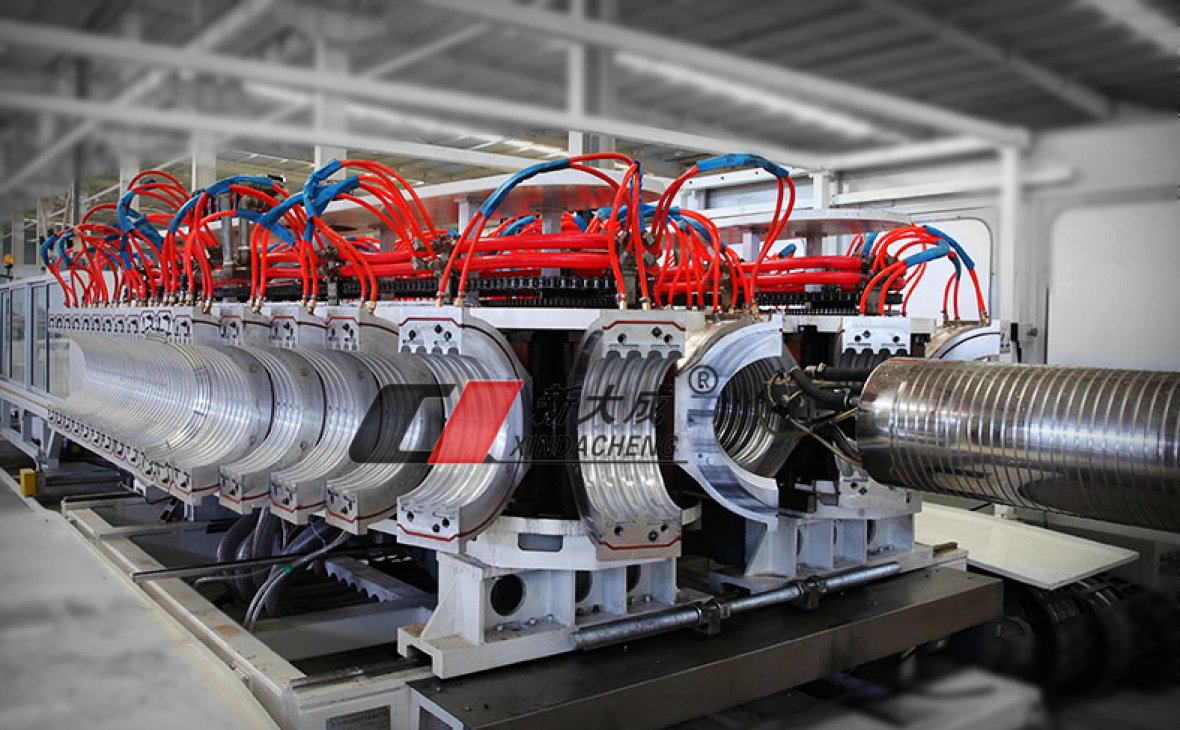

Corrugator forming machine with a new horizontal structure layout, forming machine higher rigidity, lower center of gravity, more stable operation, easier to operate and maintain;
The corrugator forming module adopts the innovative pressure water direct cooling structure, so that the cooling medium circulates inside the module at a higher flow rate, and the cooling efficiency is high, so as to ensure the production line has a higher output.
The innovative structural design of the forming machine makes the left and right frames open and close freely, which brings great convenience for flexible production. The left and right racks can be opened and closed by simple operation under the condition of replacing different specification modules or stopping without load, which can effectively avoid the cumbersome adjustment work caused by the corrugated forming module "holding" the die head, thereby improving the convenience of equipment use and maintenance;
Unique foaming mold running track design, can make the forming mold positive and negative two-way operation;
The center of the forming machine is fixed, and there is no need to adjust the frame or platform of the forming machine, the use and operation are simpler;
The advanced mold manufacturing technology makes the cooling channel and vacuum channel in the precision cast corrugated mold are arranged separately, the mold has high strength and long service life, and ensures the high quality and high efficiency production of pipes.
Automatic lubrication system, with multiple lubrication points, can set the lubrication time and frequency of automatic operation;
The position of the forming machine is adjusted electrically, and it has a perfect measuring and feedback device. Displays the exact amount of adjustment for each dimension.
The forming machine has the function of exit in emergency;
Siemens control system, using modular control scheme, has high compatibility, high control precision, high reliability.
Diameter Scope （Outside Dia.）
Output kg/h (kg/h)
Mould Block Pairs
Water & air cooling
Line Speed (m/min)
