Drip Irrigation Pipe Production Line

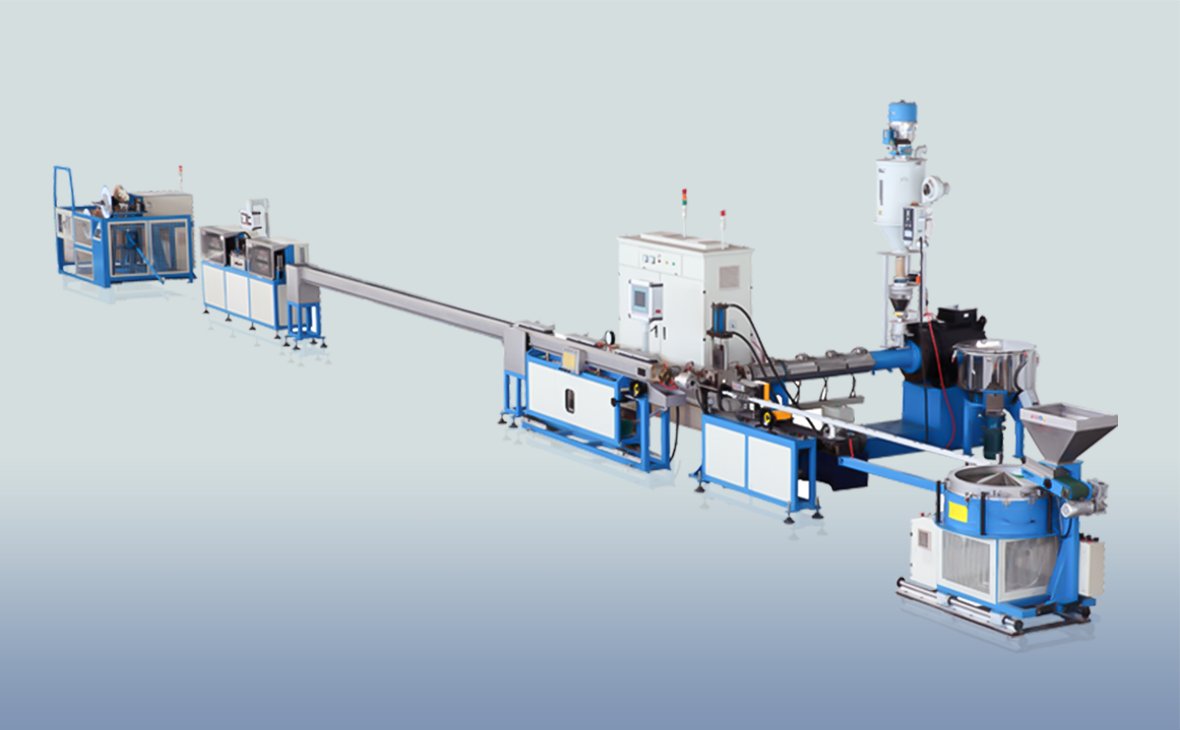

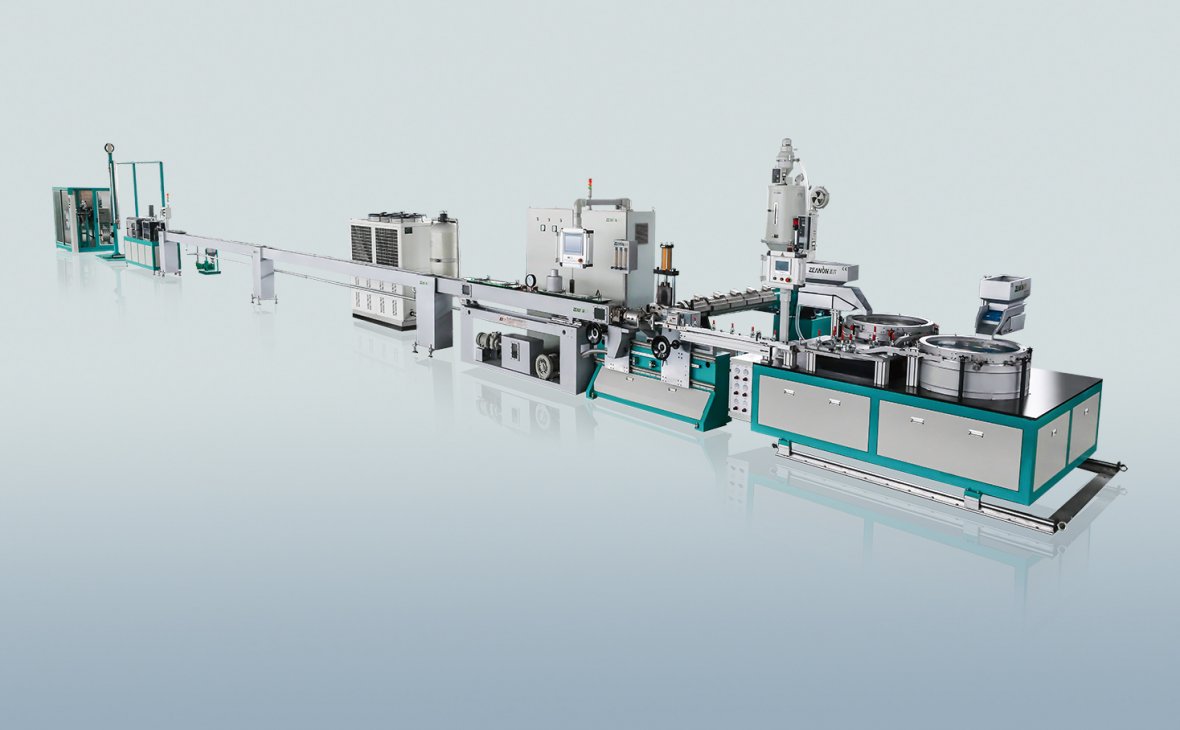

Flat drip irrigation pipe production line

Technical parameter:

Item

Pipe diameter

Pipe thickness

Production speed

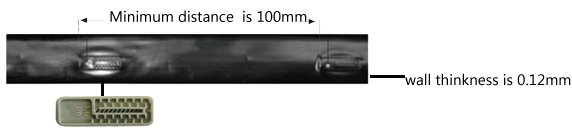

Distance of dripper

XDC-DGG 200

Φ12-16-20mm

0.12-0.6mm

0.2-0.9mm

optional)

>200m/min

100、150、200、300、400、500-1500mm


Distance 100mmLine speed 130m/min
Distance 200mmLine speed  150m/min
Distance 300mmLine speed 200m/min

Product description:

flat drip irrigation pipe machine has the following characteristics:

Feature 1: Double hole irrigation pipe (National Patent No.: ZL201020227967.0).



Feature 2:

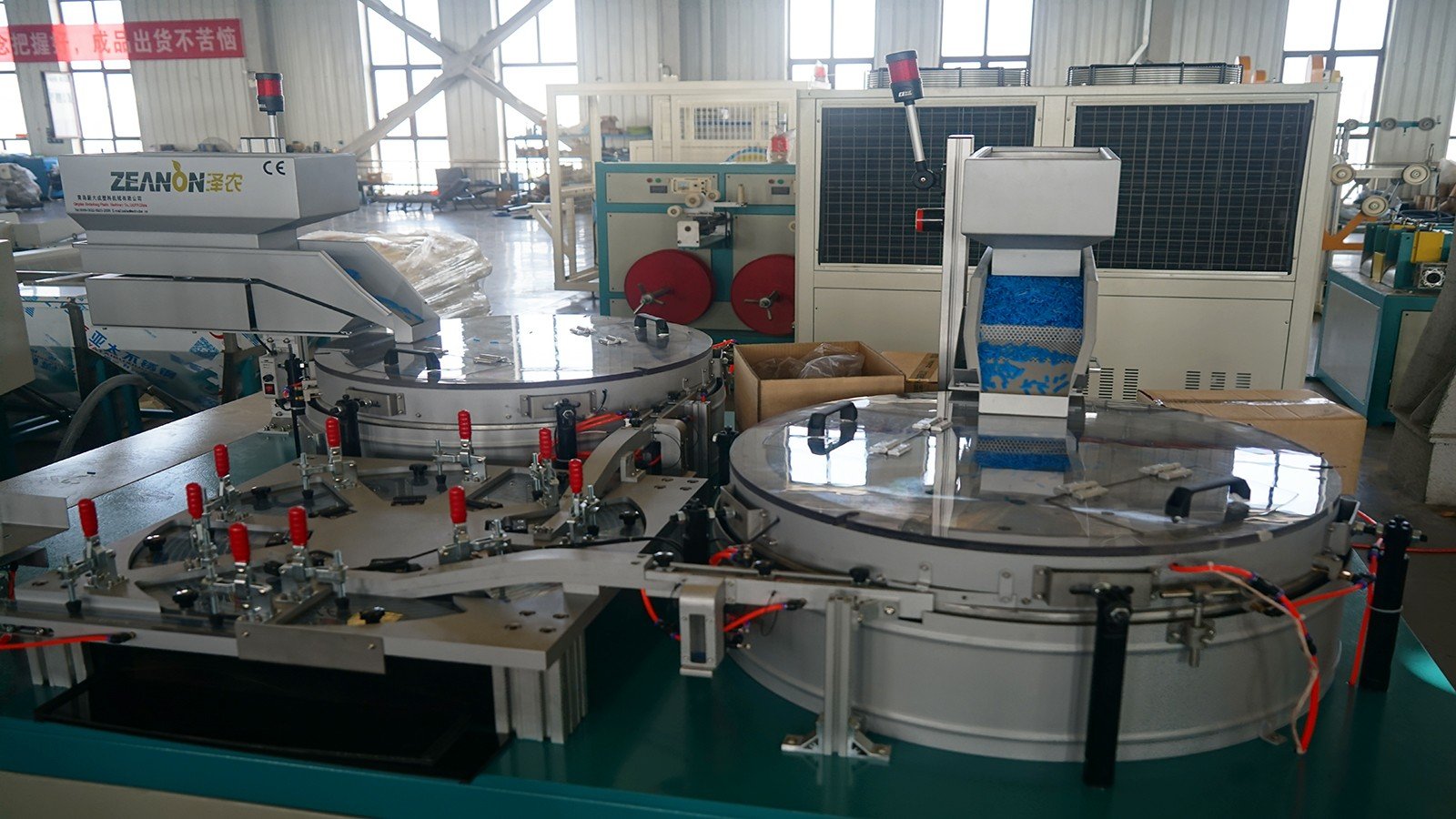

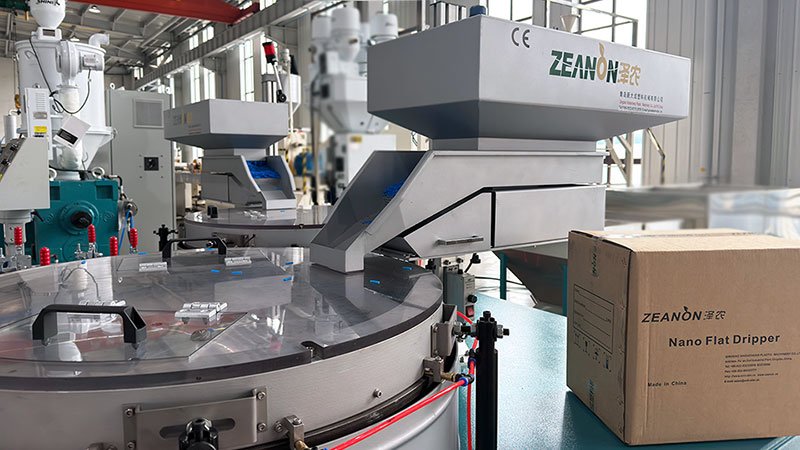

• Big dripper feeder.

• Xindacheng special technology, feeding PC dripper.

• Big size dripper speed more than 900pcs/min.

•Small dripper feeding speed more than 1200pcs/min.

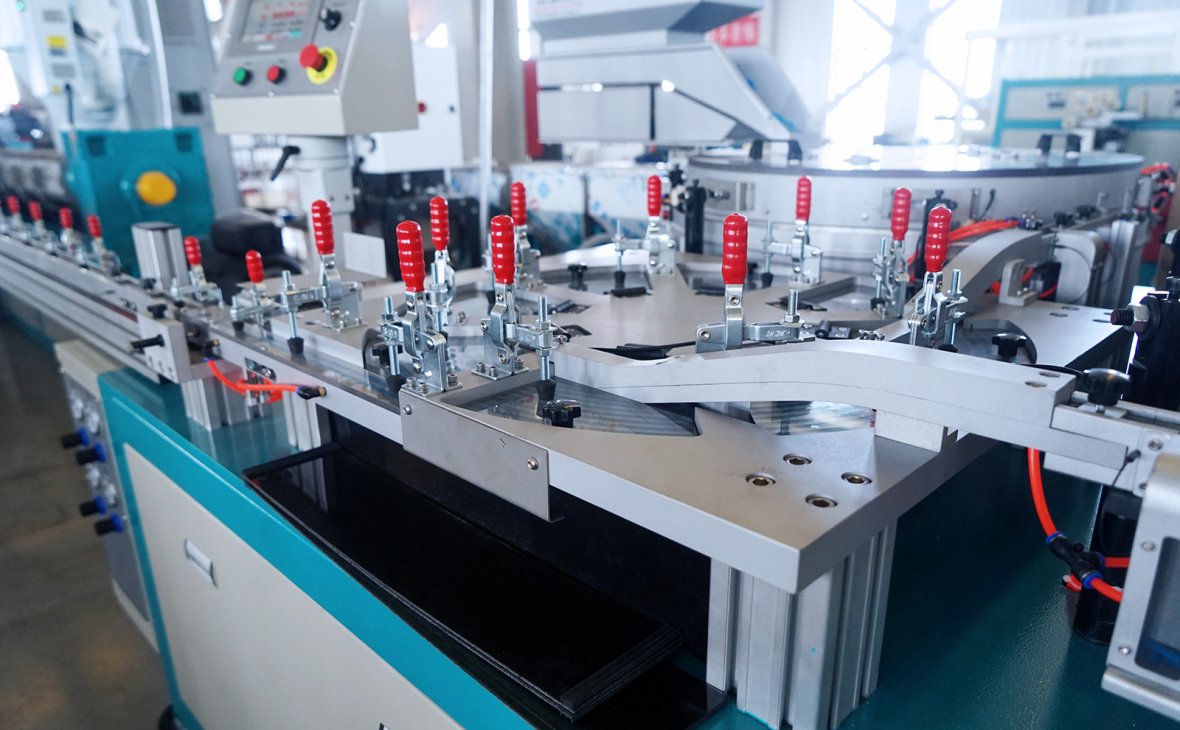

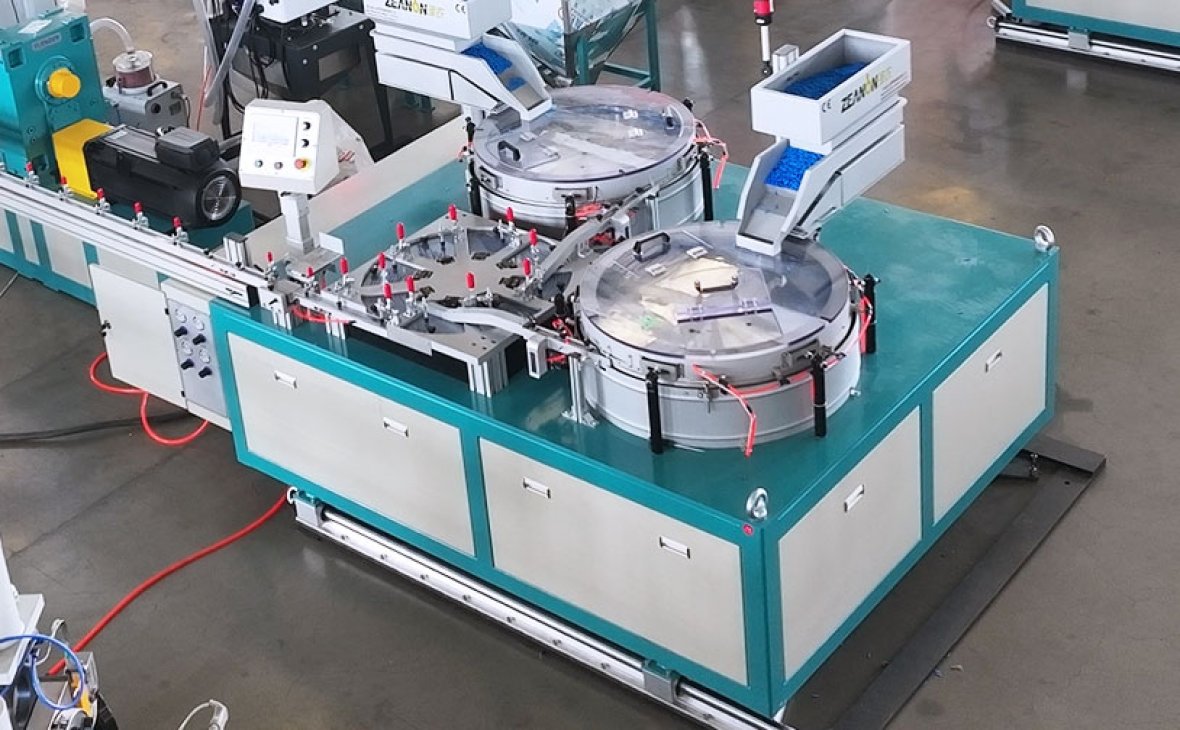

Feature 3: The equipment is used for identification and transportation for single-hole dripper, middle hole dripper and double hole dripper.


Feature 4:

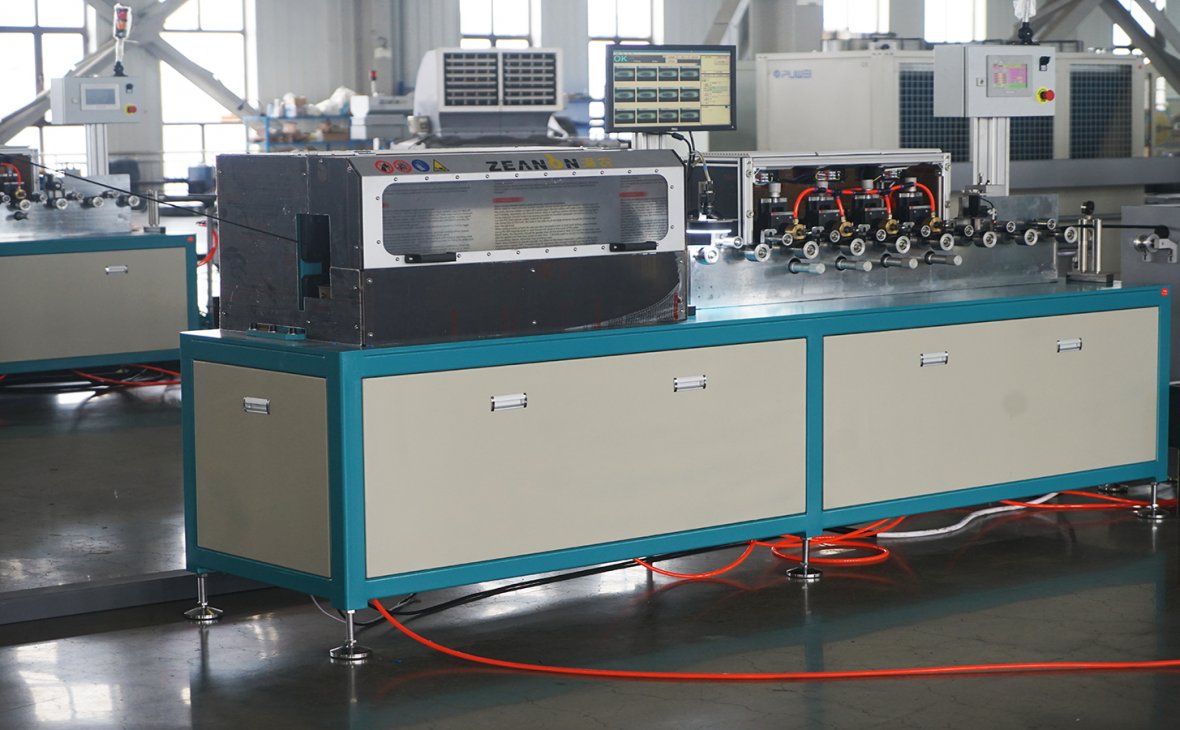

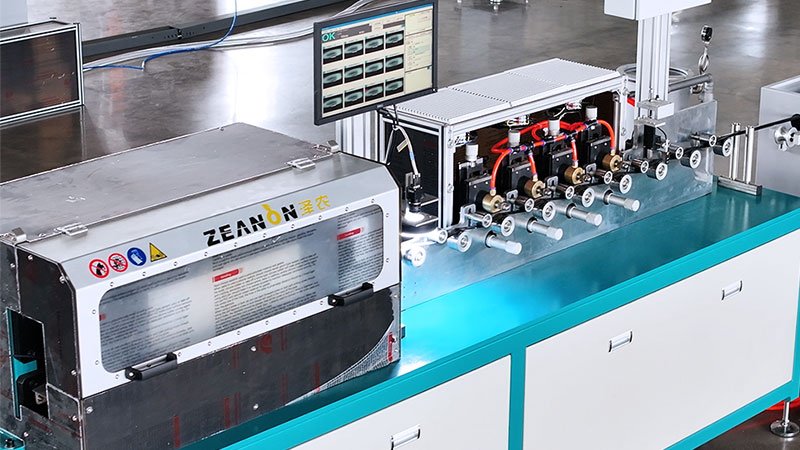

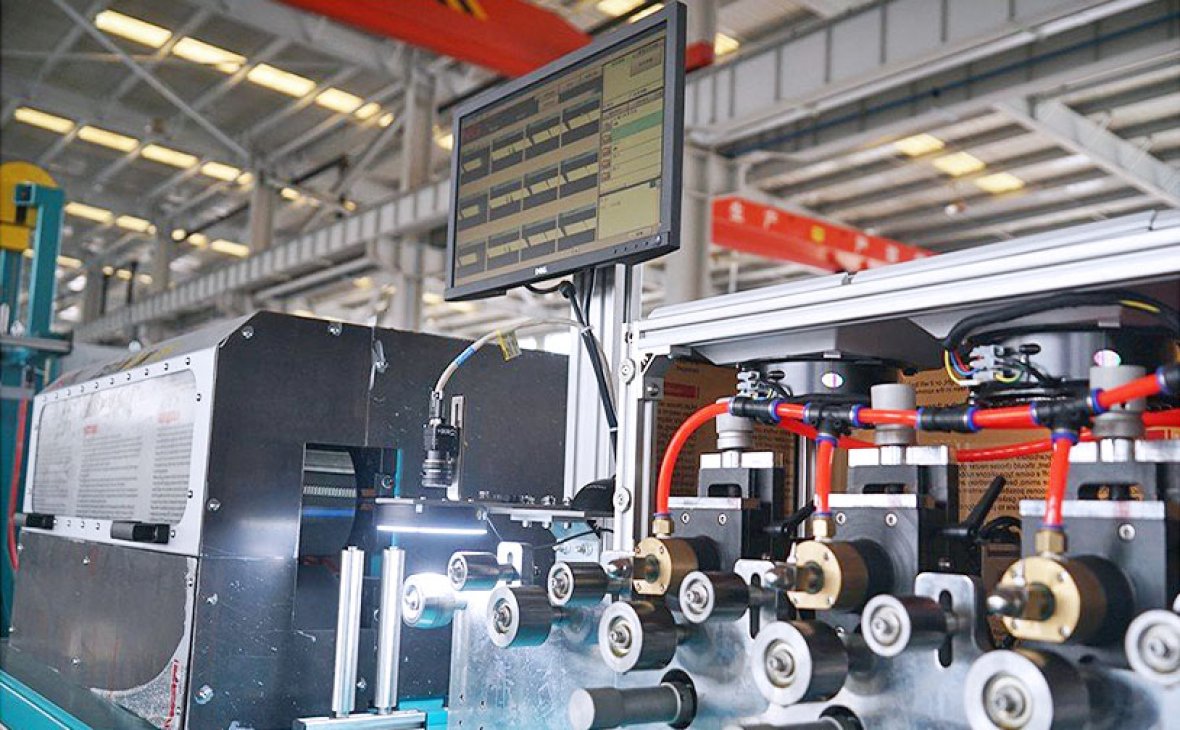

• Full automatic punching unite.

• Own National invention patent (National Patent No.: ZL200710063376.7).

• Hole speed: 450-500 times/min.

• Configured with two alarm system for accident skipping and spacing deviation identify.

• Configured with high-speed camera and PLC interface operating interface for tracking, monitoring and record storage.


Feature 5:

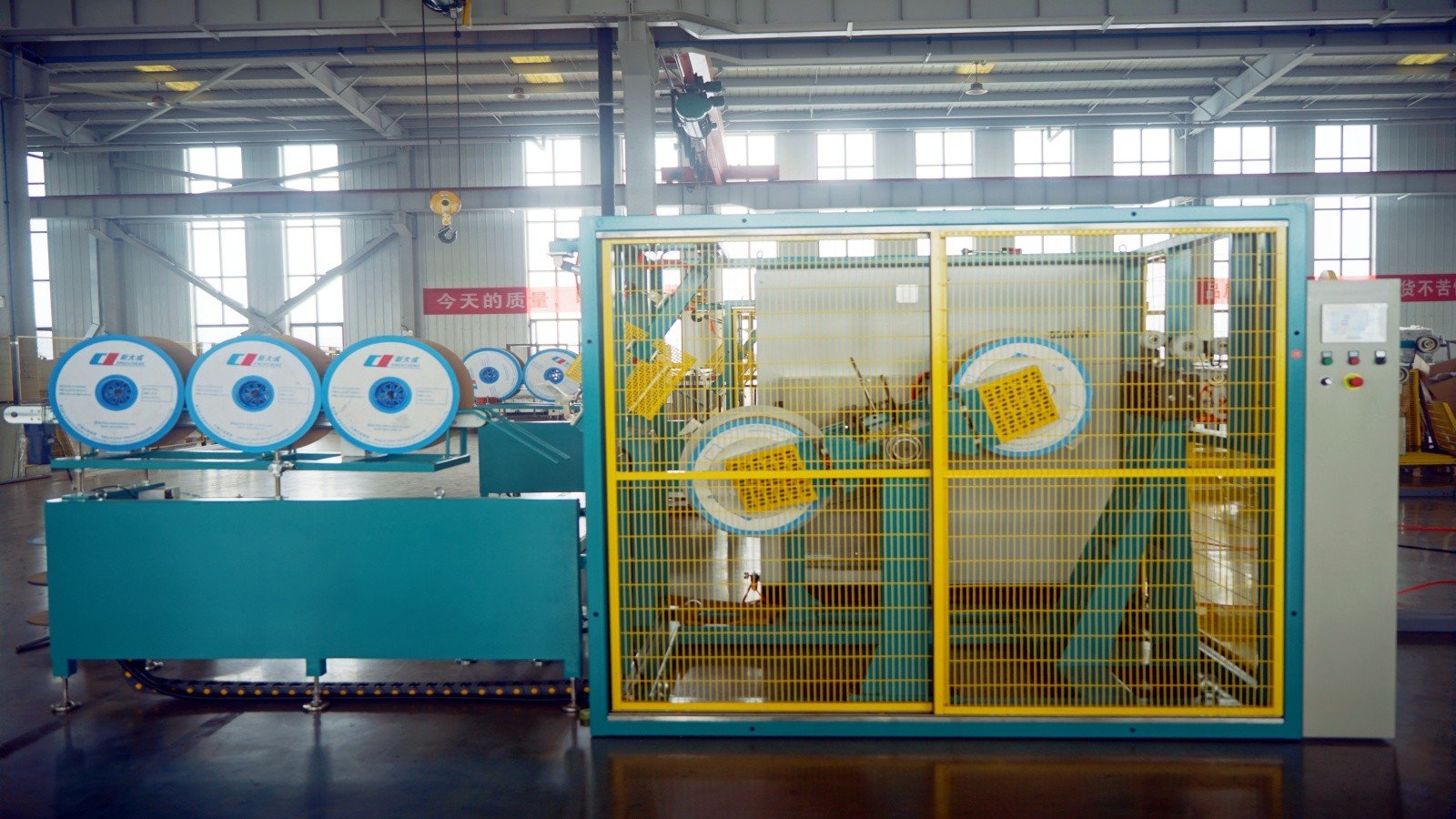

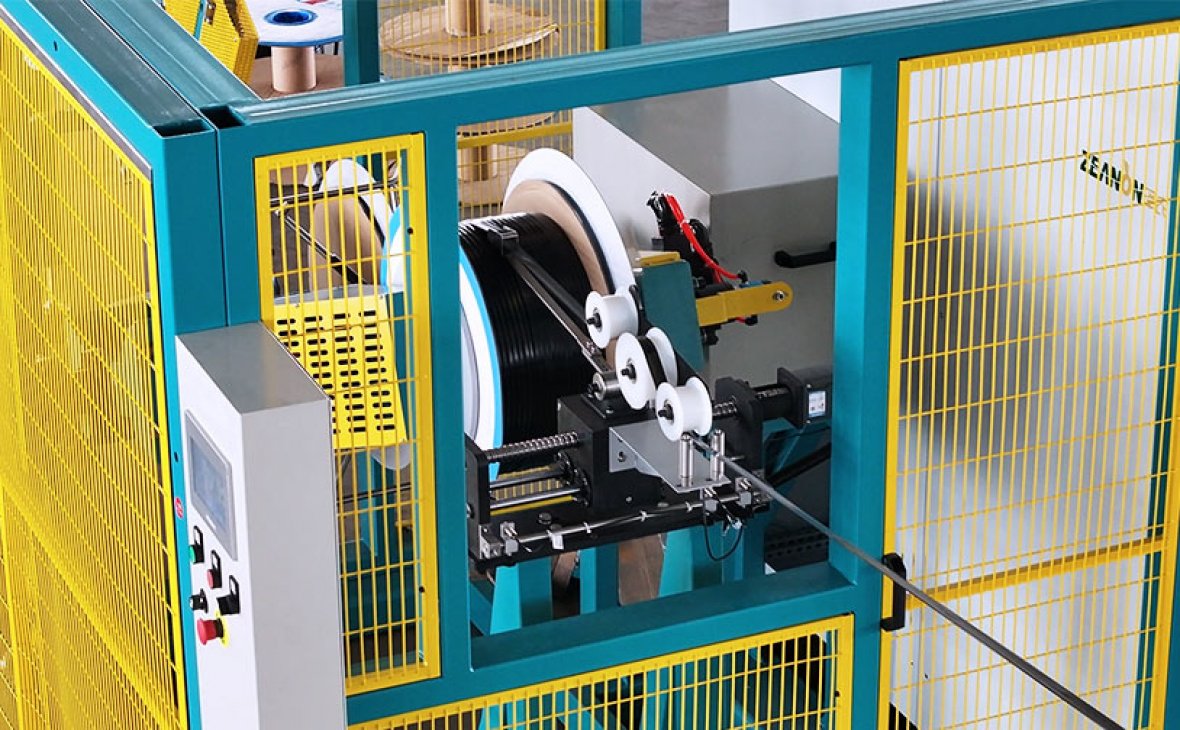

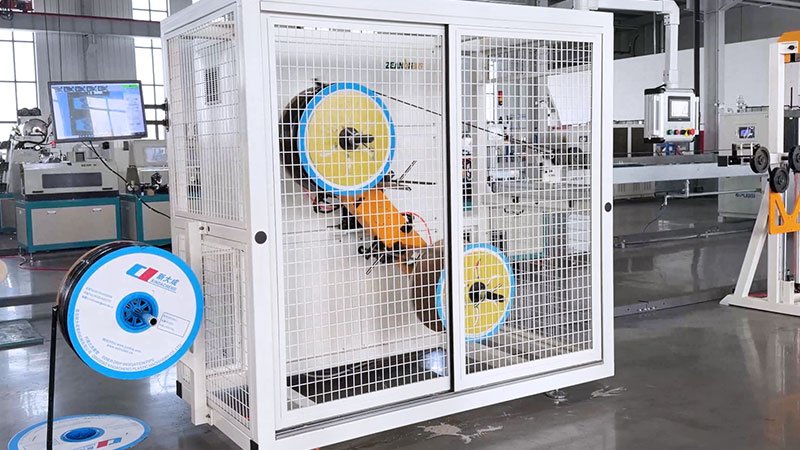

• Auto winder + Pipe accumulator unit.

• Controlled by servo motor, automatically pipe coiling.

• Operated by PLC system.

• This is the last step of drip irrigation pipe machine.
