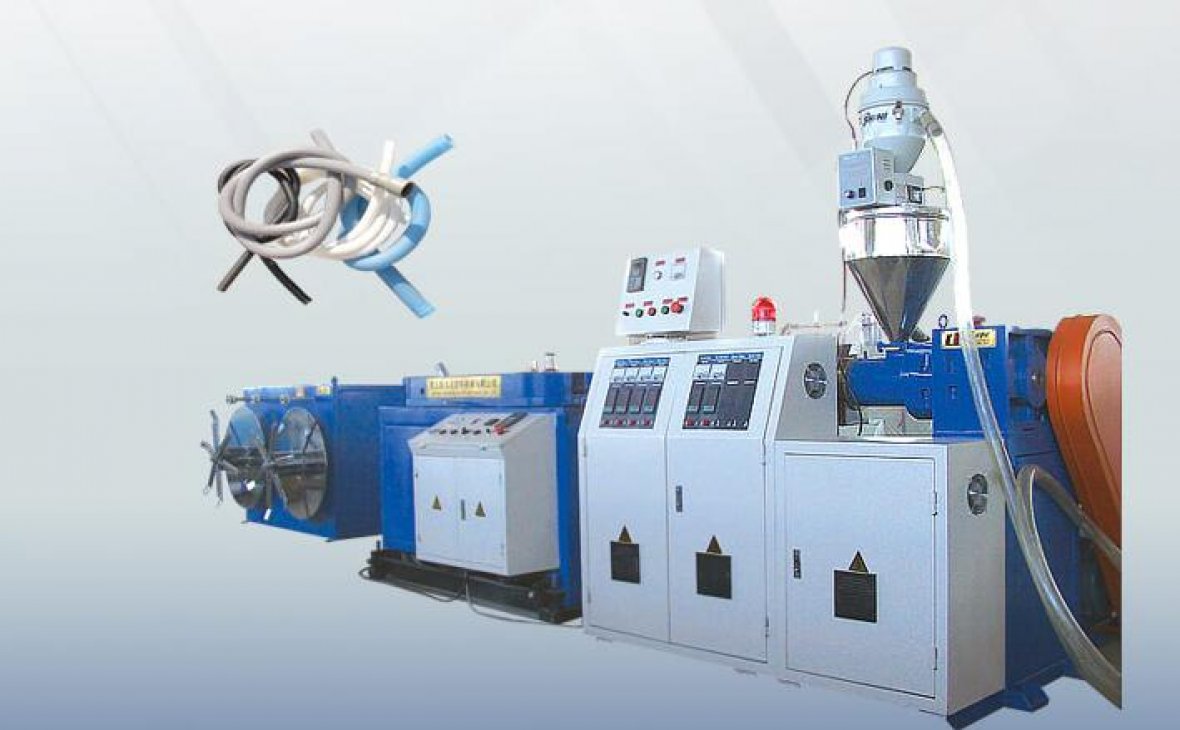

Pipe Production Line

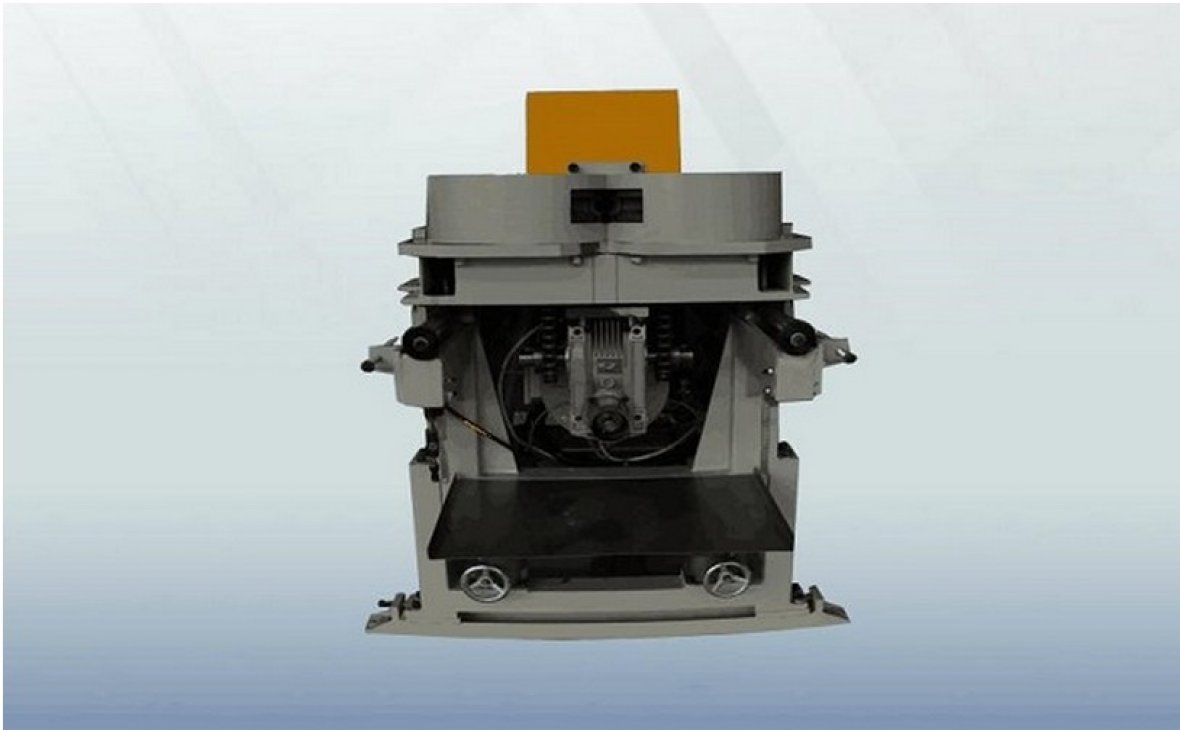

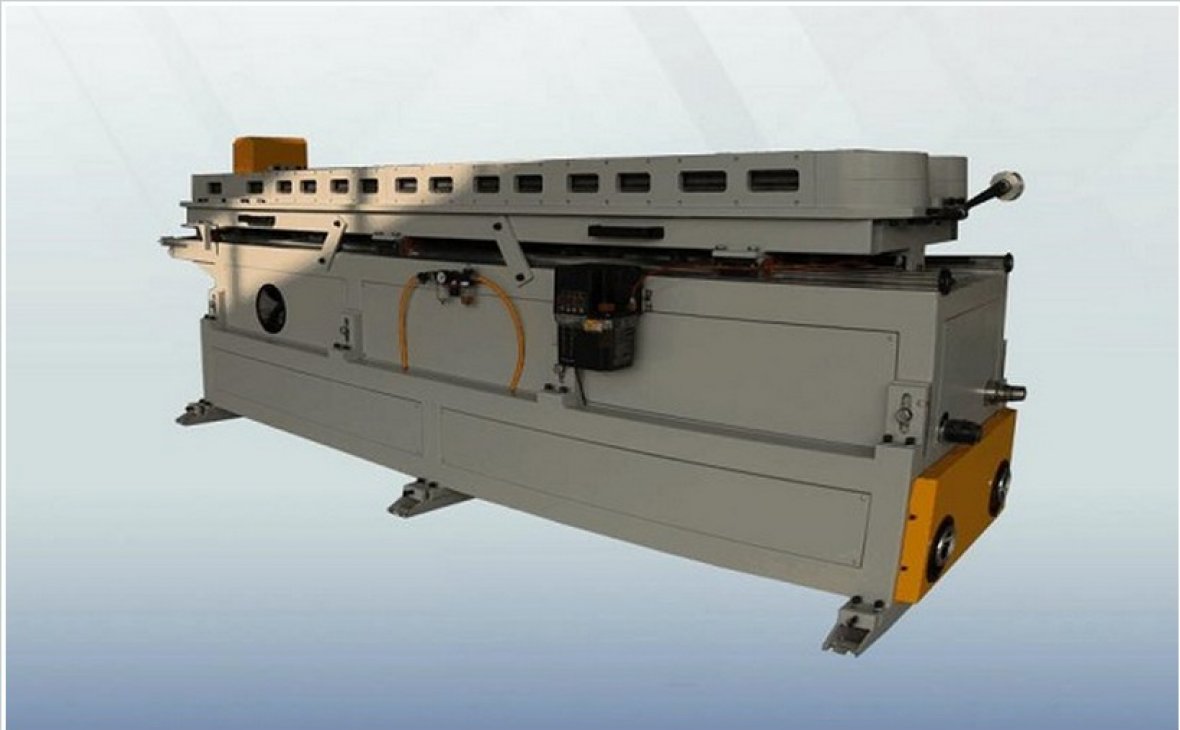

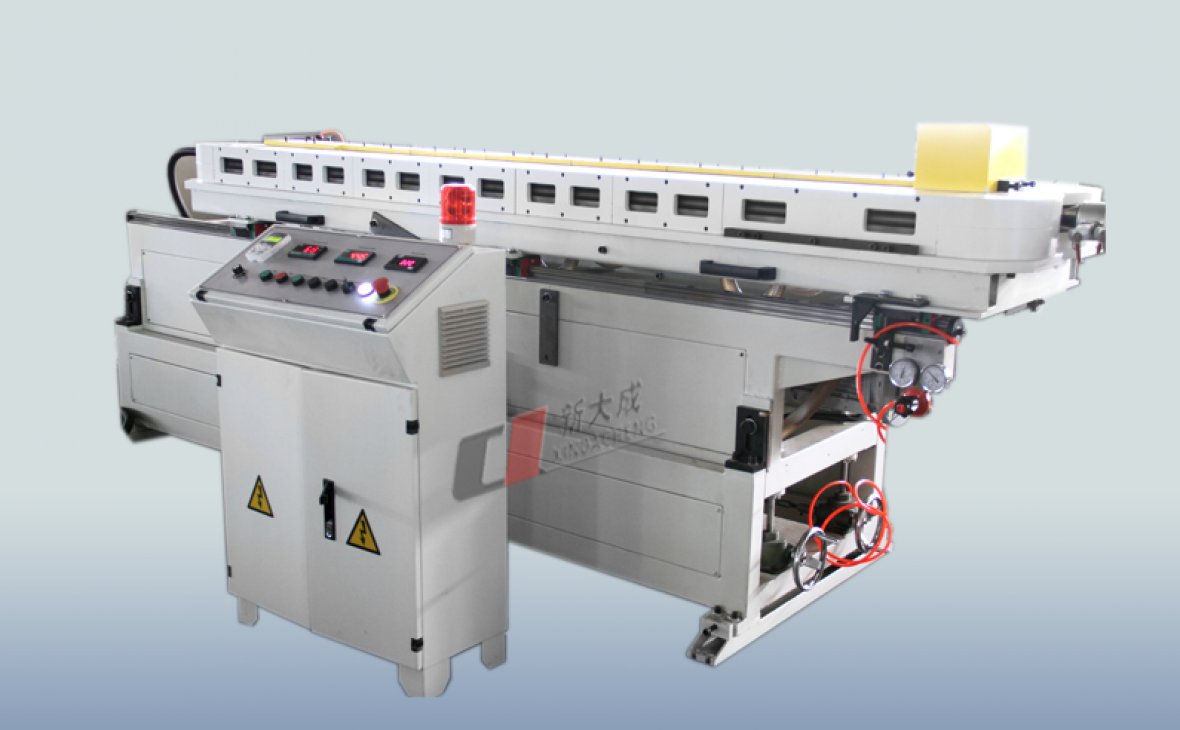

Single Wall Corrugated Pipe Machine and Forming device

Technical parameter:

Production line pipe size4-32mm8-58mm
Mold quantity40、70、9040、70、90
Supporting hostSJ-45/30SJ-65/30
Maximum production rate40m/min40m/min

Product description:

Single wall corrugated pipe can be widely used in golf courses, sports fields and other light loads such circumstances drainage, flooding; interior wire casing; automotive wire casing; prestressed cable casing; air conditioner drainage pipes. Double-wall corrugated pipe can be widely applied highways, slopes, golf courses and other heavy load conditions drainage, flooding; municipal sewage; communications, power supply cable casing and other occasions.

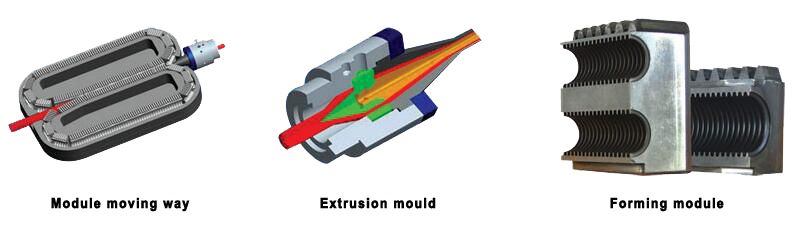

1. Close type corrugator and vacuum for forming

2. Forming module is moving in a tunnel

3. Forming tunnel is clod by water

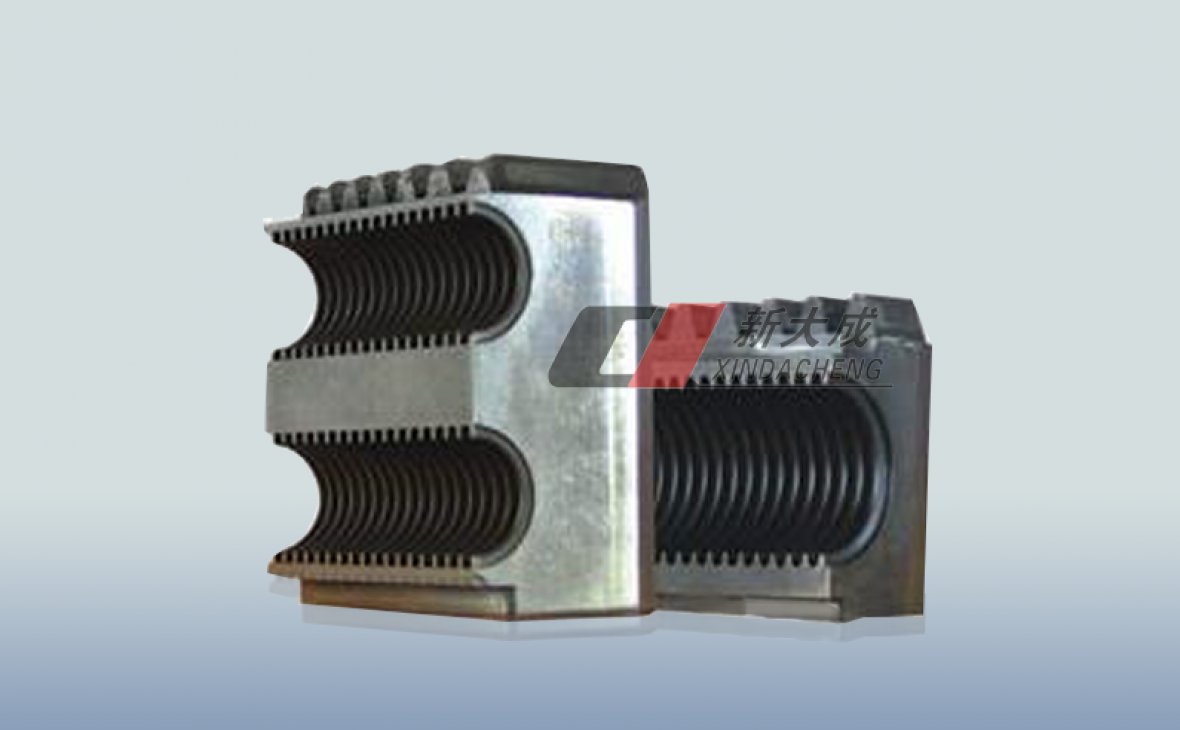

4. Forming module is made of hard alloy steel and anti-corrosion and abrasion.

5. No any connection between forming module, the reduce time to change.

6. Provide single and double wall corrugation pipe head die.
