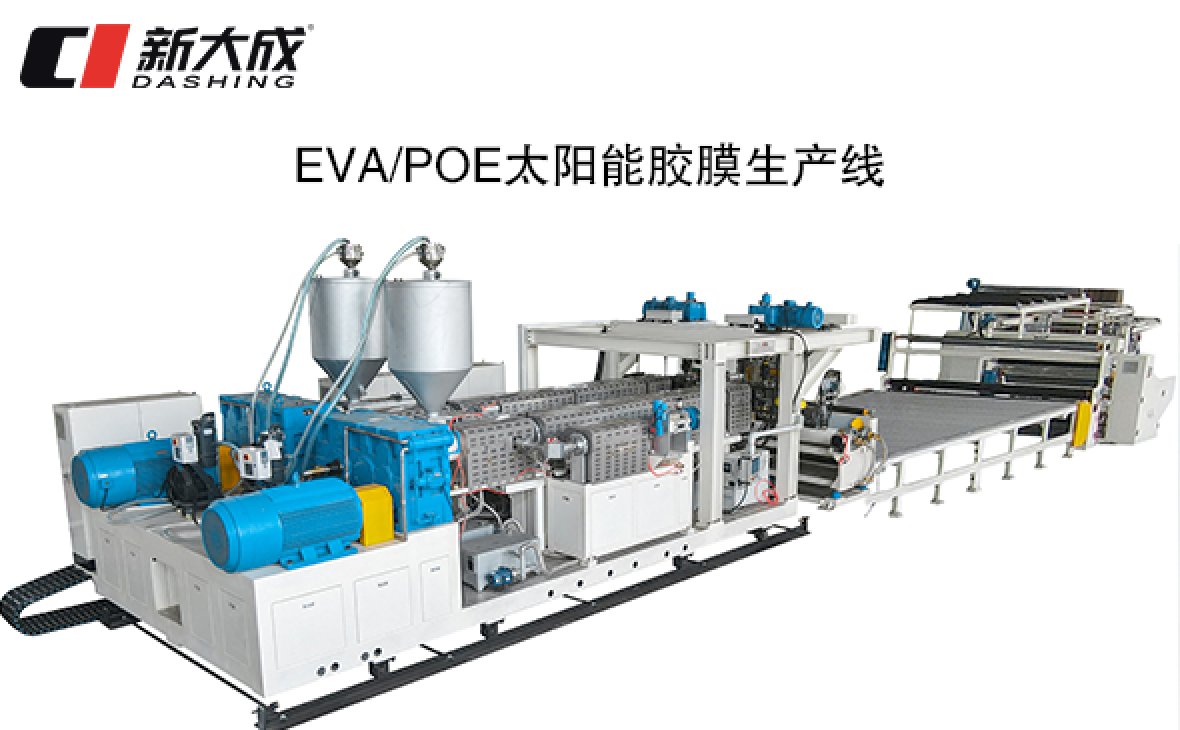

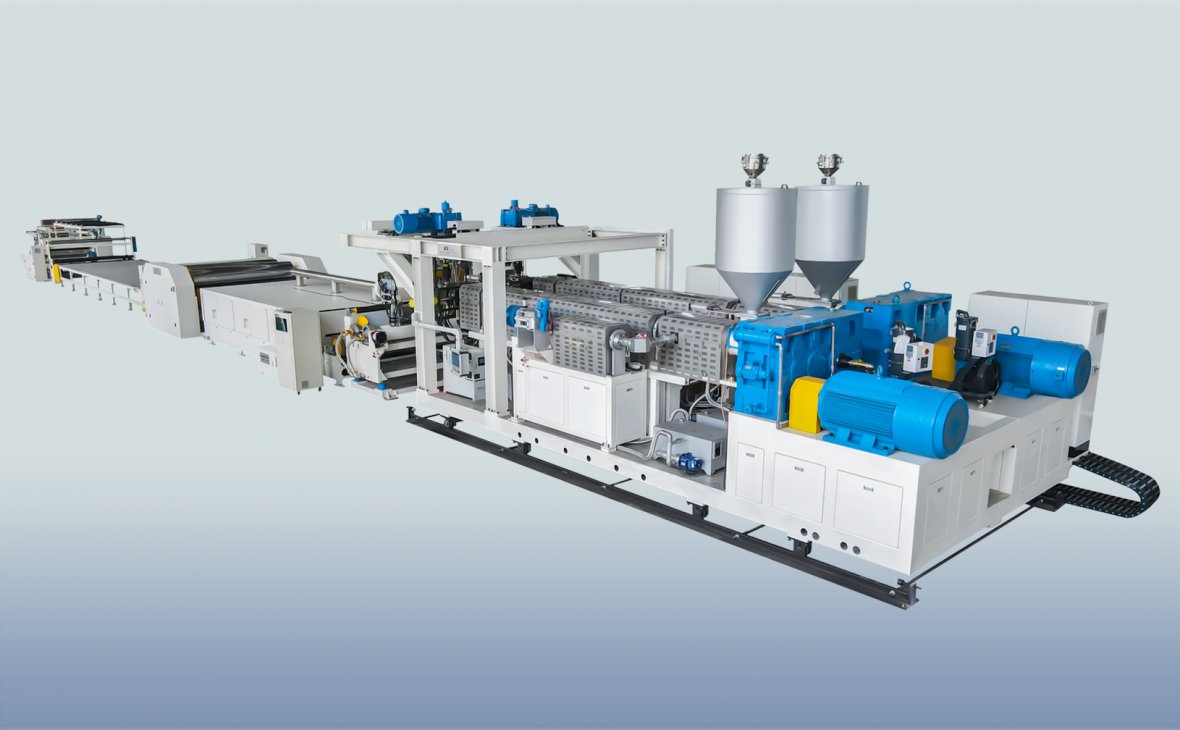

EVA/POE solar film production line
Main technical parameters ：
Type | XDC-2200 | XDC-2200 | XDC-3000 |
Extruder specification | 160 | 180 | 180+180 |
Width of product | 2200mm | 2200mm | 3000mm |
Thickness of Products | 0.02-0.1m'm | 0.02-0.1m'm | 0.02-0.1m'm |
Output | 600kg/h | 800kg/h | 1200kg/h |
Speed | 12m/min | 12m/min | 12m/min |
Equipment features:
EVA/POE solar film production line is our company's latest research and development equipment, the equipment is widely used in solar backplane, building decoration and indoor soundproof glass and other fields, our company's EVA/POE equipment has the characteristics of fast production line, low shrinkage, high degree of automation.

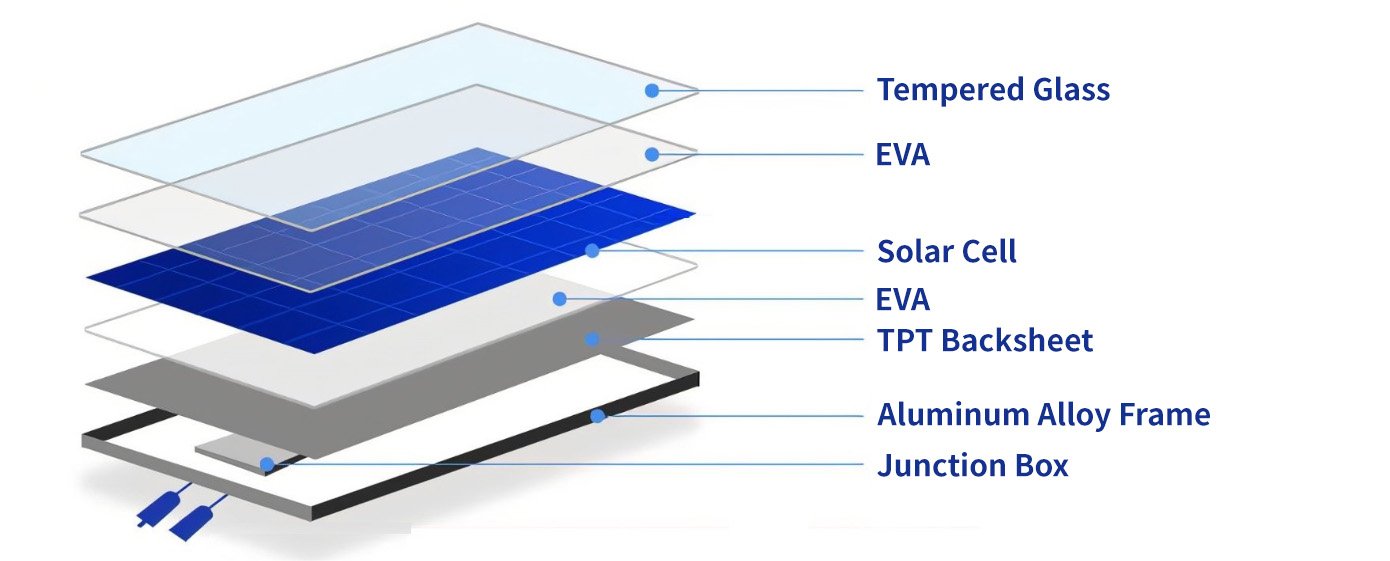

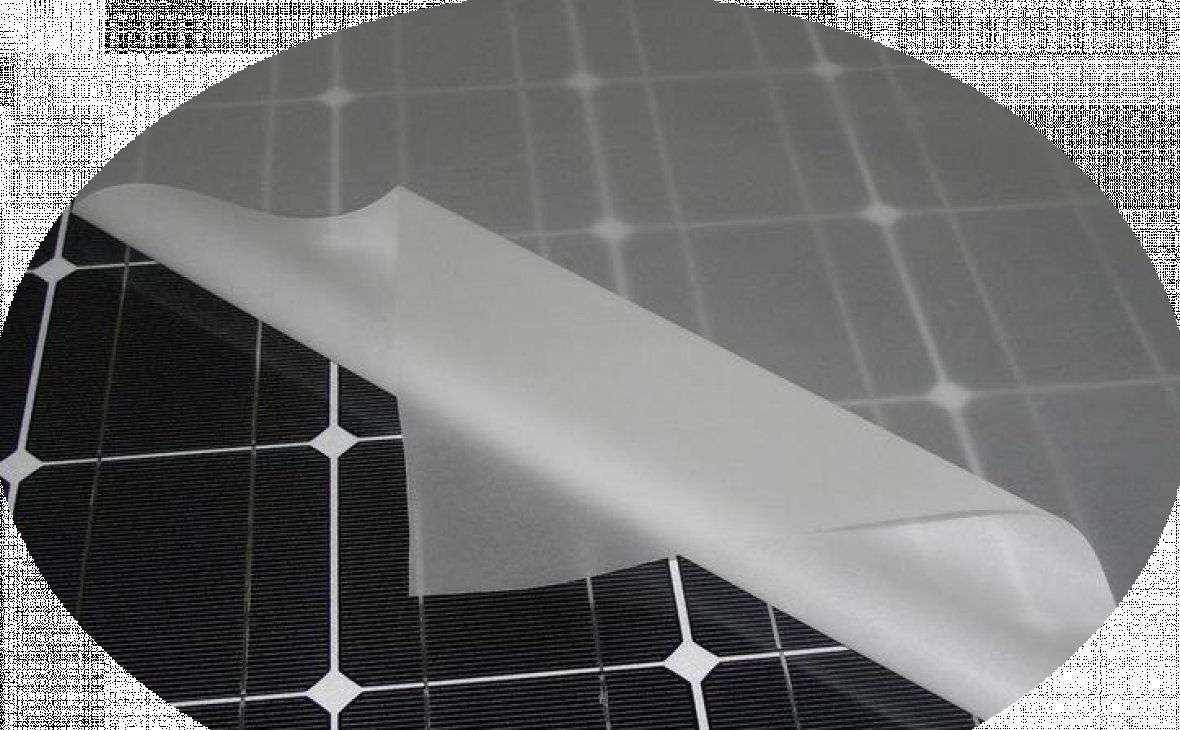

Solar panel encapsulation film is a critical material widely used in photovoltaic modules. It serves to bond photovoltaic glass, solar cells, and backsheets together, requiring high light transmittance, strong adhesion, low water permeability, and high electrical resistivity. Primary types of photovoltaic films include transparent EVA film, white EVA film, POE film, and co-extruded POE film.
Technical Specifications:
Applicable Materials: EVA + additives; POE + additives for solar encapsulation film
Line Frame Width: 3000mm
Module Width: 2600mm set; 3000mm set (Customizable according to client requirements. Multiple strips can be slit online based on demand)
Product Weight: 300-530 g/m²
Extruder Orientation: From back to front (Facilitates production debugging and disconnection)
Line Speed: ≤20 m/min (Actual speed depends on raw materials, process, and working conditions)
Thickness Deviation: TD ≤ 3%, MD ≤ 2%
Melt Pump Diameter: Ø 600mm
Surface Treatment: Matte/Textured (Sandblasted or patterned, customizable per client requirements)
Installed Capacity: Approx. 550 kW (Operating capacity approx. 300 kW)
Cooling Water: Supply Temperature 7-20°C, Pressure 4-6 bar, Circulating Flow Rate 40-50 m³/h
Air Supply: Pressure ≥ 7 bar, Flow Rate 0.9 m³/min
Features & Customization:
Equipment can be diversely customized according to client needs, including single-screw, multi-screw, parallel twin-screw, and two-stage extruder configurations. Our raw material-handling equipment helps shorten your supply chain and reduce costs.

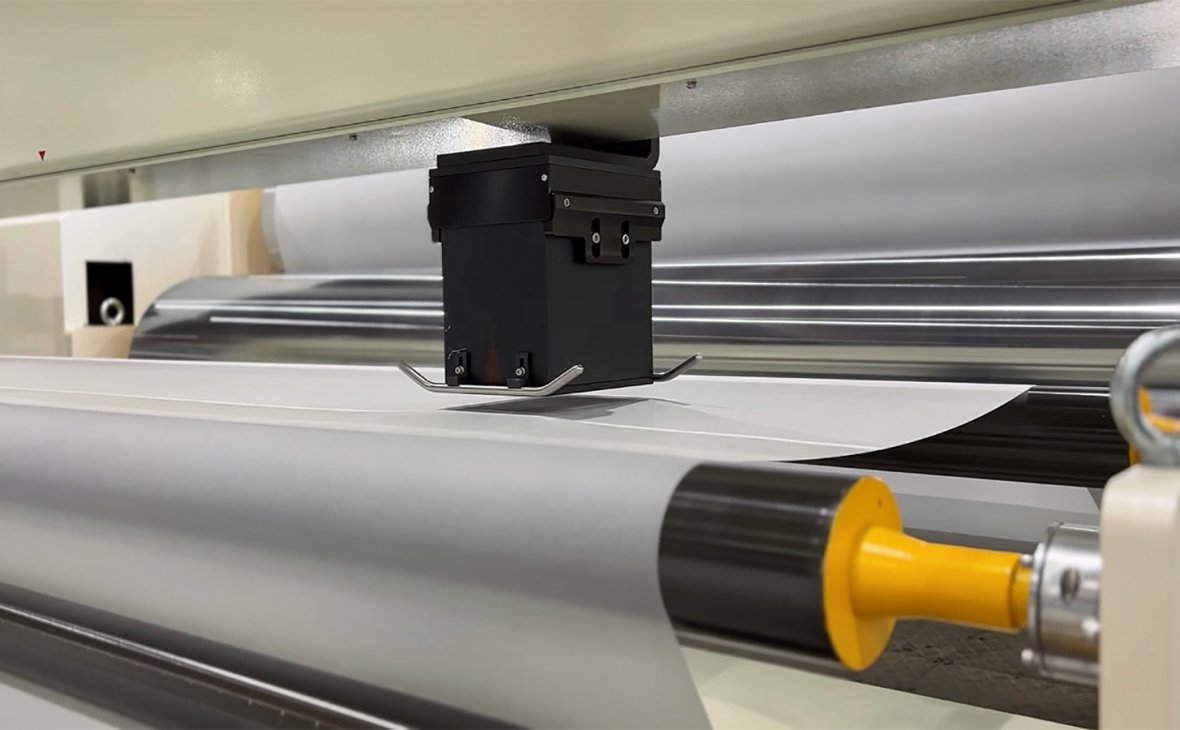

Integrated Thickness Measurement/Auto Gauge Control: Ensures high-quality production. Links with defect detection to create a 3D product map for intuitive, rapid problem analysis and prediction.
High-Precision Intelligent Control: Maximizes production line stability. Efficiently assists in establishing process workflows and enables quick data analysis for reliable production.
Advanced Far-Infrared Annealing Process: Delivers precise temperature control. Utilizes stainless steel and special insulation materials for effective heat retention and energy savings.
Edge Trim Online Recycling System: Significantly reduces material waste and client costs.
Mature EVA/POE Solar Film Equipment Solutions: Offer optimal shrinkage rates, minimal weight variance, quick adjustment response, and intelligent control for comprehensive quality assurance.
Comprehensive Engineering Support: Provides plant layout and utility engineering solutions, offering full project support and one-stop service for client construction needs.
