Dripper & Inject Mold
Cylindrical Dripper & Inline Drip Emitter Manufacturer
Technical parameter：

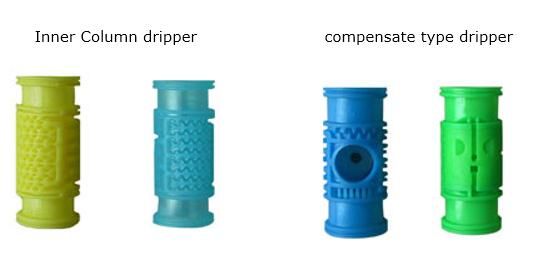

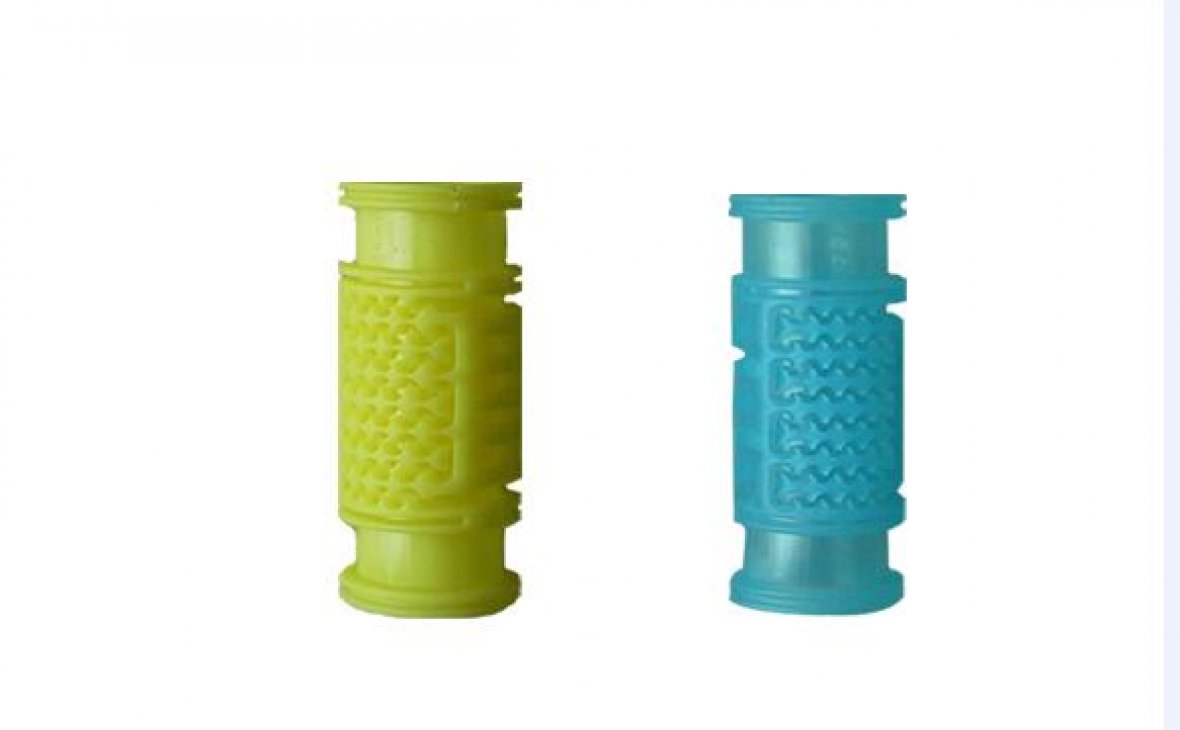

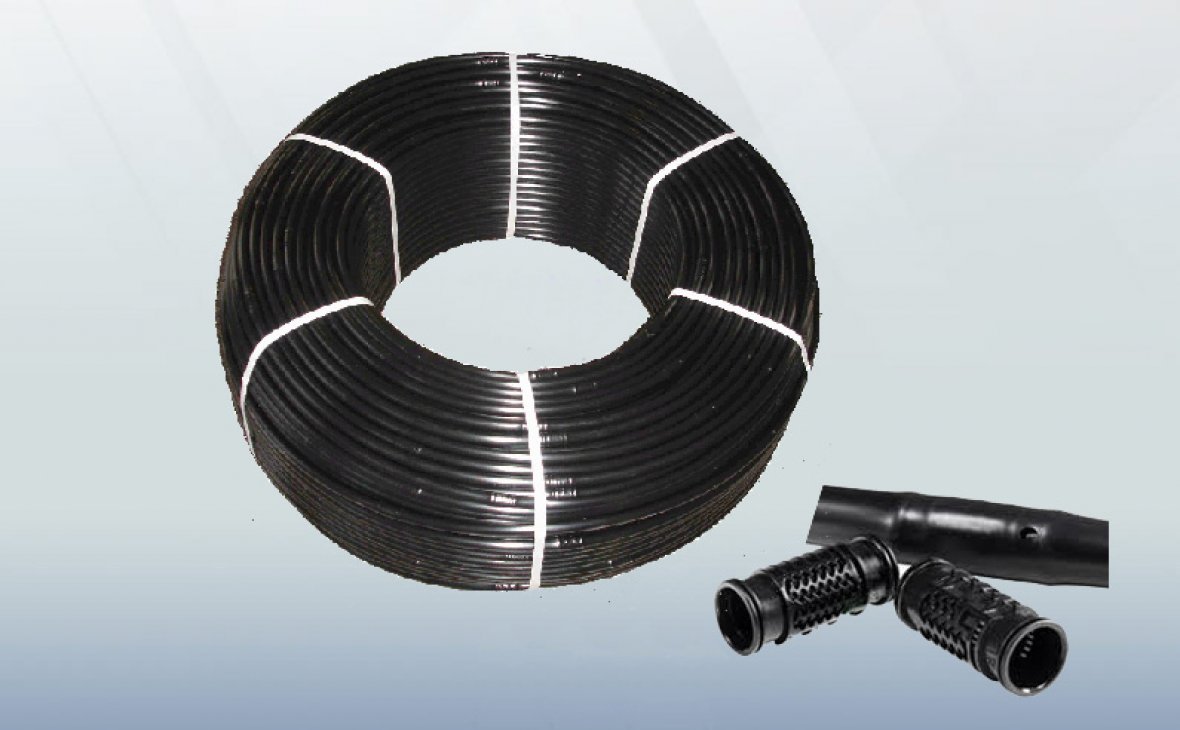

1.Inner Column dripper Irrigation pipe：
Pipe Diameter (mm) | 12、16、20 | |||
Thickness(mm) | 0.5-1.5 | |||
Dropper distance(mm) | 300 | 400 | 500 | 1000 |
Flow | 1.6L,2L,3L,4L | |||
Diameter/per coil | 1000 mm | |||
Weight/per coil | 15-20kg | |||
2.Column irrigation pipe with compensate type dropper:
Pipe Diameter (mm) | 12、16、20 | |||
Thickness(mm) | 0.5-1.5 | |||
Dropper distance(mm) | 300 | 400 | 500 | 1000 |
Flow | 2L, 4L | |||
Diameter/per coil | 1000 mm | |||
Weight/per coil | 15-20kg | |||

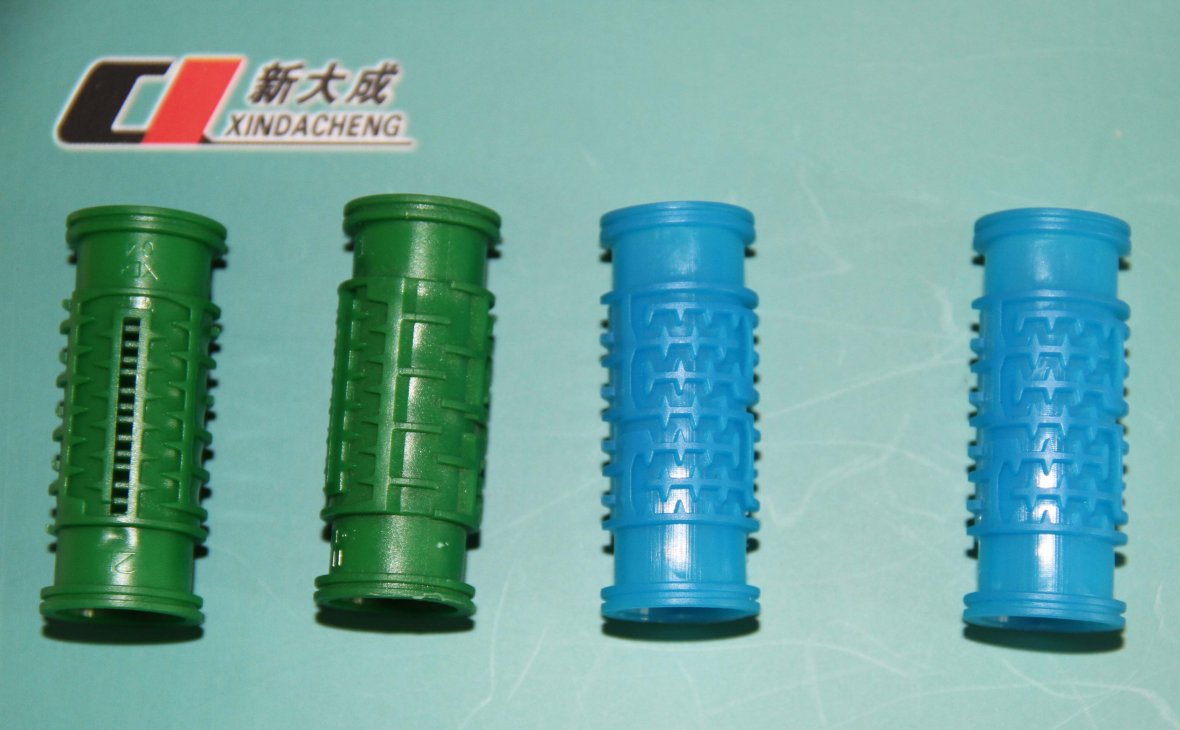

Precision Inline Emitter for Efficient Drip Irrigation Systems
Xindacheng manufactures high-quality cylindrical drippers for modern drip irrigation systems, including common cylindrical drippers and pressure compensated cylindrical drippers. Designed for precision water delivery, anti-clogging performance, and long-term agricultural efficiency, our cylindrical drippers are widely used in drip irrigation pipe production for orchards, greenhouses, field crops, and large-scale agricultural projects.
As the core component inside inline drip irrigation pipe, the cylindrical dripper directly determines irrigation uniformity, anti-blocking capability, and system lifespan. XINDACHENG focuses on advanced dripper structure design, precision mold technology, and stable production standards to ensure every dripper delivers reliable and consistent field performance.
Integrated Cylindrical Structure for Stable Installation
The cylindrical dripper is designed to be precisely inserted into the irrigation pipe during production, becoming a seamless internal component of the drip line. This integrated structure allows the dripper to remain securely fixed while maintaining smooth pipe installation and stable water distribution.
Compared with conventional emitter structures, cylindrical drippers offer stronger mechanical stability and are especially suitable for long production runs and automated drip pipe manufacturing systems.
Structural advantages:
Compact cylindrical design
Easy inline insertion
Stable positioning inside drip pipe
Smooth water pathway integration
Suitable for high-speed production lines
Advanced Anti-Clogging Flow Channel Design
A high-performance dripper must maintain stable flow even under challenging water conditions. Xindacheng cylindrical drippers are engineered with a large filtration inlet area and optimized entrance channel structure, significantly improving resistance to clogging.
The enlarged filtration design helps reduce particle blockage while allowing water to enter efficiently, supporting long-term reliability in agricultural irrigation systems.
Key anti-clogging benefits:
Large water inlet filtration area
Strong impurity resistance
Reduced blockage risk
Better irrigation consistency
Lower maintenance requirements
Turbulent Labyrinth Technology for Uniform Water Flow
Inside each cylindrical dripper, advanced turbulent flow channels create a regulated labyrinth pathway that controls water discharge while improving irrigation uniformity.
This turbulent flow structure forms a longer internal flow path, helping stabilize emitter output while also generating self-cleaning movement that reduces sediment accumulation.
Performance highlights:
Uniform flow output
Enhanced irrigation precision
Partial pressure compensation
Self-cleaning capability
Long operational lifespan

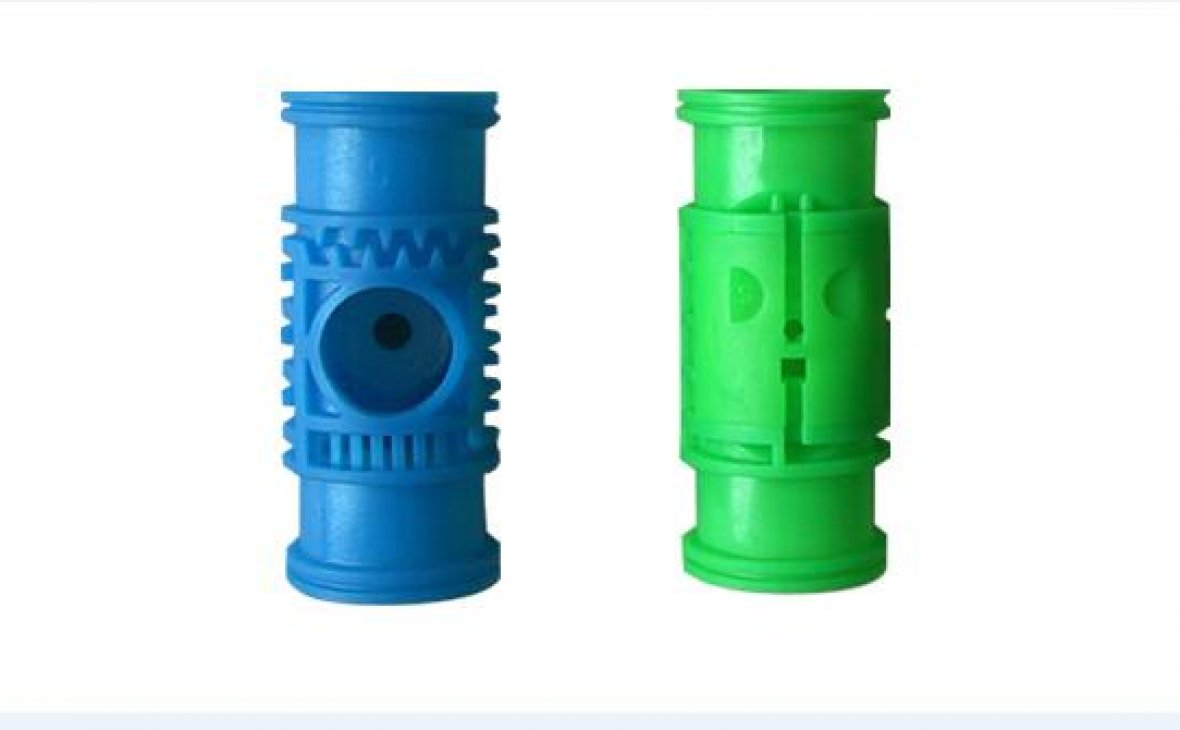

Pressure Compensated Cylindrical Dripper for Precision Agriculture
For more demanding irrigation environments, XINDACHENG offers pressure compensated cylindrical drippers equipped with premium silicone membrane technology.
The silicone diaphragm automatically adjusts water output based on pressure fluctuations, ensuring consistent drip rates across uneven terrain, elevation changes, and long-distance irrigation layouts.
Best suited for:
Sloped farmland
Orchards
Vineyards
Greenhouses
Long irrigation rows
Complex geographical environments
Pressure compensated cylindrical drippers are ideal for growers who require maximum irrigation precision and crop consistency.
Precision Manufacturing for Reliable Dripper Quality
Xindacheng cylindrical drippers are produced using advanced mold engineering and strict production quality standards to ensure dimensional accuracy, stable flow characteristics, and reliable compatibility with drip irrigation pipe systems.
Our focus on dripper precision directly supports:
Better water-saving efficiency
Stable crop irrigation
Reduced system downtime
Higher product consistency
Available Cylindrical Dripper Types
To meet different agricultural and production needs, Xindacheng supplies multiple dripper options:
Common cylindrical dripper
Pressure compensated cylindrical dripper
Customized flow rates
Multiple spacing specifications
Applications
Xindacheng cylindrical drippers are widely used in:
Drip irrigation pipe manufacturing
Orchard irrigation systems
Greenhouse farming
Vegetable cultivation
Sugarcane planting
Cotton irrigation
Commercial agricultural projects
Why Choose Xindacheng Cylindrical Drippers?
With years of experience in drip irrigation component manufacturing, Xindacheng combines precision, durability, and advanced emitter engineering to provide dependable cylindrical dripper solutions for global irrigation markets.
Our advantages:
Precision dripper mold technology
Advanced anti-clogging design
Turbulent flow self-cleaning system
Pressure compensated options
Stable flow performance
Factory-direct manufacturing
Contact Us
Looking for high-quality cylindrical drippers or customized inline dripper solutions?
Xindacheng provides professional dripper manufacturing, technical support, and complete drip irrigation component solutions for modern agricultural markets worldwide.
