PP Strapping Production Line: Key Factors for Stable PP Strap Manufacturing

What Determines Stability in PP Strap Manufacturing?

PP strapping is widely used for carton packaging, logistics, palletizing and general industrial bundling. Although the finished product looks simple, producing consistent PP straps requires several processes to work together accurately.

For manufacturers planning a PP strap production line, the main concern is usually not only production speed. Stable thickness, uniform width, sufficient tensile strength, good surface embossing and consistent roll winding are equally important. A production line that runs quickly but produces frequent thickness variations or unstable rolls can increase material waste and affect downstream packaging performance.

A well-designed PP strapping production line therefore needs coordinated control from raw material feeding to final winding.

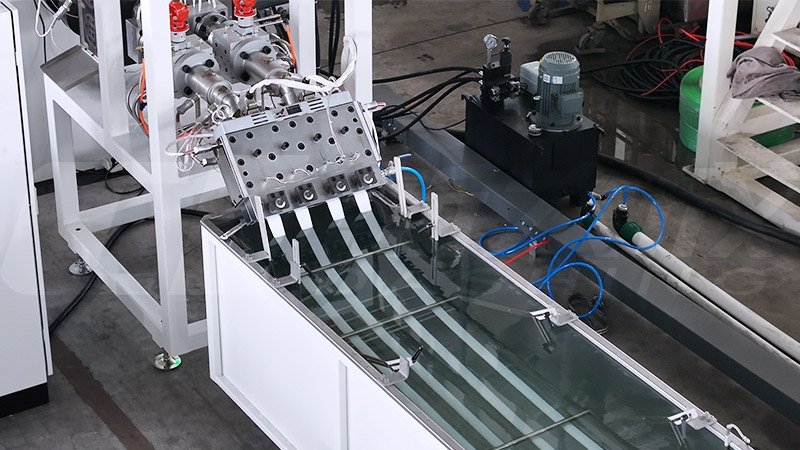

1. Stable Extrusion Is the Starting Point

The extrusion section is the foundation of PP strap manufacturing. PP raw material is melted and homogenized in the extruder before being formed through the die.

If melting and extrusion are unstable, variations can appear in the thickness and width of the strap. These variations may become more noticeable during the following stretching process.

For this reason, the extruder, screw and barrel, die head and melt filtration system should be selected according to the required strap specifications and production capacity. Stable material feeding and melt pressure also help maintain consistent output during continuous production.

When comparing a PP strapping extrusion line, manufacturers should therefore look beyond the extruder's nominal output and consider how consistently the complete extrusion system can operate.

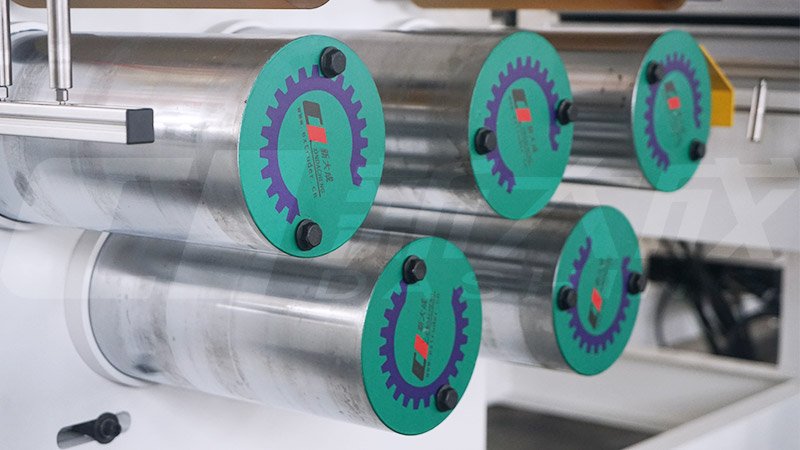

2. Stretching Affects Strength and Dimensional Stability

After cooling and forming, the PP strap passes through the stretching section. Stretching changes the molecular orientation of polypropylene and helps improve the mechanical properties of the finished strap.

The stretching ratio, temperature and line speed need to be coordinated with the target strap specifications. If the stretching conditions are not properly matched, the finished PP strap may show differences in tensile strength, elongation or dimensional stability.

For customers looking for a PP strap manufacturing line for packaging, this section is particularly important because different applications can require different combinations of strap width, thickness, stiffness and tensile performance.

A production line should therefore allow appropriate process adjustment rather than relying only on a fixed operating condition.

3. Heat Setting Helps Control the Finished Strap

After stretching, heat setting and cooling help stabilize the dimensions of the PP strap.

This stage can reduce internal stress generated during stretching and help the finished strap maintain more consistent dimensions. Proper temperature control is important because excessive or insufficient heat treatment can influence the final properties of the strap.

In continuous polypropylene strapping production, the relationship between stretching, heat setting and cooling should be considered as one complete process rather than as independent machine sections.

4. Embossing Should Match the Application

Embossing creates a textured surface on the PP strap. The surface pattern can increase friction between straps and help improve bundling performance.

However, embossing quality also depends on factors such as roller condition, pressure, temperature and line speed. Uneven embossing can affect the appearance and performance of the finished product.

For manufacturers producing PP packing straps for different customers, adjustable process parameters can provide greater flexibility when changing strap specifications.

5. Winding Quality Is Part of Production Quality

The final winding process is sometimes overlooked when evaluating a PP strap production line, but it directly affects handling, storage and subsequent packaging operations.

A suitable winder should maintain stable tension and arrange the strap neatly during winding. Poor tension control can result in loose rolls, uneven edges or inconsistent roll formation.

Automatic winding can also reduce repetitive manual operations and help maintain consistent roll production during long production runs. Depending on the production requirements, manufacturers can select an automatic or semi-automatic winding configuration.

How to Choose a PP Strapping Production Line

Before purchasing a PP strap making machine or complete production line, manufacturers should first define the finished product requirements.

Important factors include the required strap width and thickness, number of straps produced simultaneously, target production capacity, raw material type, degree of automation and required winding method.

The intended application should also be considered. PP straps used for cartons and general packaging may have different requirements from straps used for heavier industrial bundling.

It is therefore more practical to select the complete process configuration according to the final product rather than choosing individual machines only by their maximum output.

PP Strapping Production Line for Different Production Requirements

A complete PP packing strap production line can integrate feeding, extrusion, cooling, stretching, heat setting, embossing and winding into a continuous production process. The configuration can be adjusted according to the required product specifications and production capacity.

For manufacturers who are starting a new PP strap manufacturing project, the production line should be evaluated as a complete system. For existing factories, upgrading specific sections such as the extrusion, control or winding system may also be considered when the existing equipment is still suitable for continued production.

The objective is not simply to increase line speed, but to achieve a practical balance between output, product consistency, energy consumption, labor requirements and long-term operating stability.

Conclusion

Stable PP strap manufacturing depends on the coordination of every stage of the production process. Consistent extrusion provides a reliable starting point, while controlled stretching, heat setting, embossing and winding determine much of the final product quality.

When selecting a PP strapping production line, manufacturers should therefore evaluate the complete production process and match the equipment configuration with their target strap specifications, capacity and application.

For a new PP strap project, providing the required strap width, thickness, number of straps, target output and raw material information can help determine a more suitable PP strapping extrusion line configuration.
