Automation and Quality Control in High-Speed Drip Tape Manufacturing

In the global drive for agricultural water conservation and efficient crop production, drip irrigation technology stands out as a cornerstone solution. Among the key enablers of advanced drip irrigation systems is high-speed drip tape manufacturing equipment, where automation and quality control are not just value-added features but essential pillars for meeting large-scale agricultural demands. As farmers and irrigation project developers seek cost-effective, durable, and high-performance drip tapes, manufacturers are turning to integrated automated systems to enhance production efficiency, reduce material waste, and ensure consistent product quality. This article delves into the critical role of automation and quality control in high-speed drip tape manufacturing, with a focus on the cutting-edge XDC-450 High Speed Internal Flat Dripper Irrigation Pipe Production Line — a system that sets new benchmarks in speed, automation, and precision.

The Imperative of Automation in High-Speed Drip Tape Manufacturing

Drip tape manufacturing involves complex, sequential processes: dripper feeding, pipe extrusion, dripper insertion, punching, calibration, and winding. Traditional semi-automated lines often struggle with bottlenecks, inconsistent dripper spacing, and slow line speeds — issues that directly impact production output and product reliability. Automation addresses these pain points by streamlining workflows, minimizing human intervention, and enabling continuous high-speed operation.

For modern agricultural applications, where large acreages require tens of thousands of meters of drip tape, production lines must deliver speeds that match demand without compromising quality. The Xindacheng 450 line exemplifies this, boasting a maximum production speed of 450 meters per minute. This high speed is not achieved in isolation; it is supported by a suite of automated components that work in synergy to maintain process stability and precision.

Core Automated Components of the Xindacheng 450m/min Production Line

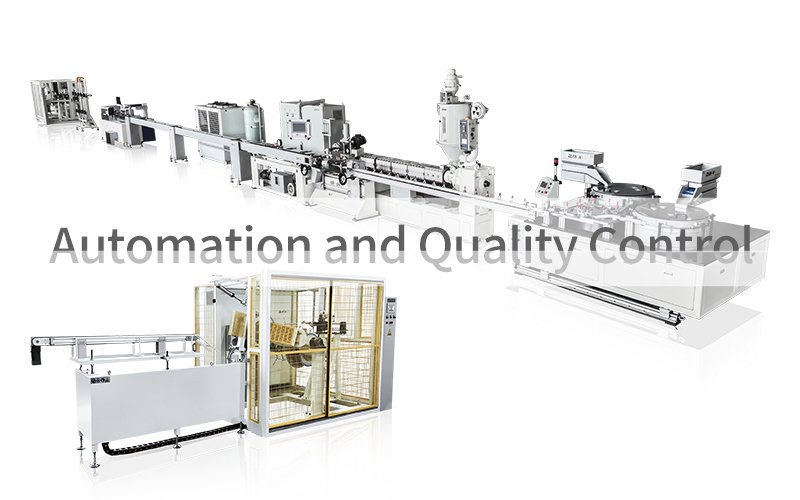

The XDC-450 line integrates multiple automated systems to optimize every stage of drip tape manufacturing. Each component is designed to enhance efficiency, reduce downtime, and ensure uniform product quality — key requirements for large-scale irrigation projects.

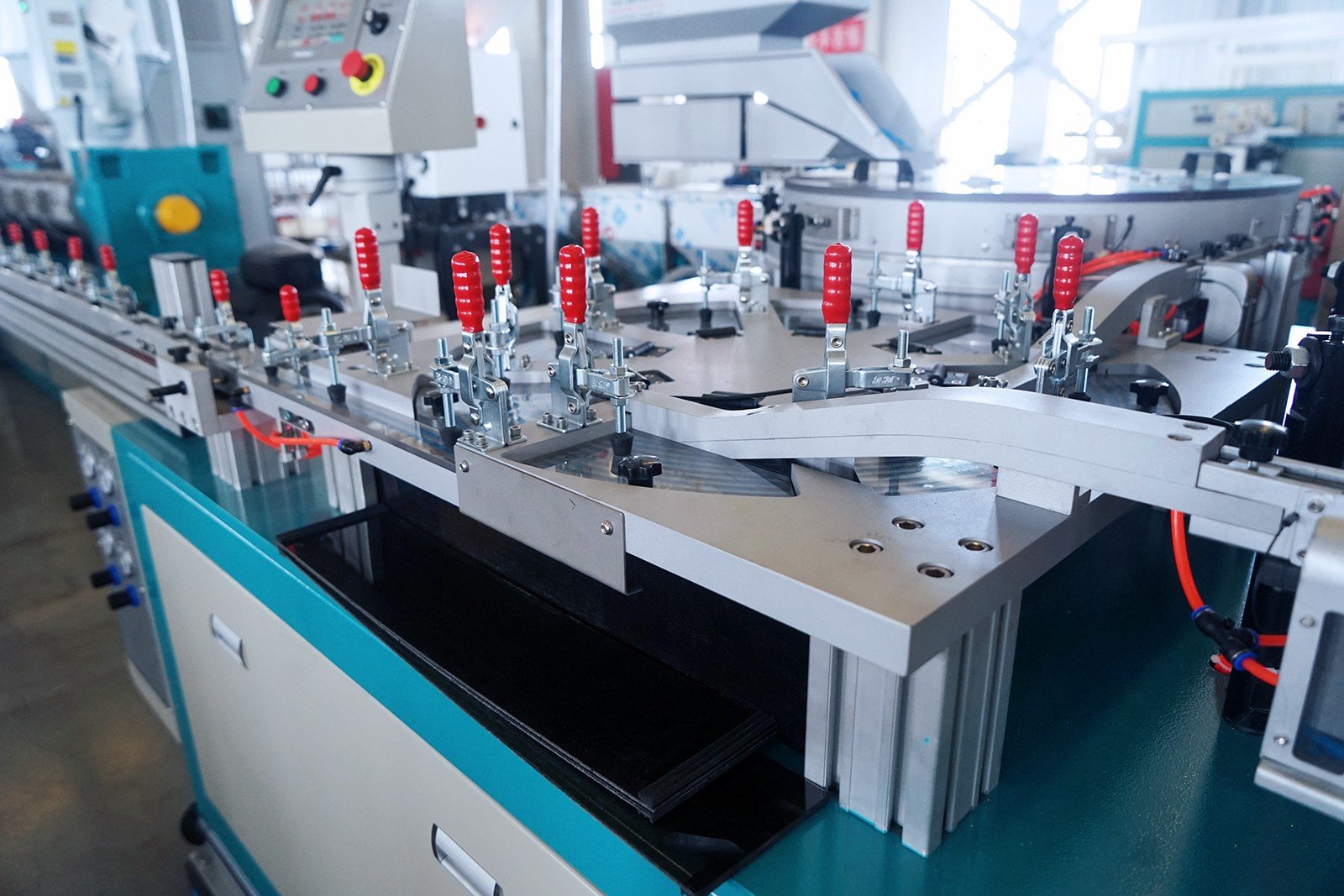

1. Automated Dripper Feeding and Insertion System

Drippers are the heart of drip tape, and their accurate, high-speed insertion is critical to performance. The XDC-450 addresses this with a double-set dripper feeder device capable of feeding up to 4,500 drippers per minute— a rate perfectly synchronized with the line's 450 m/min production speed.

A standout feature is the automated dripper buffer and storage device. This system eliminates downtime caused by defective drippers: if a low-quality dripper blocks the feeder, the buffer releases pre-stored drippers to maintain continuous operation. Additionally, the line includes a one-button automatic pipe-holding dripper insert device (adopting European technology), which ensures drippers are inserted at precise intervals without manual adjustment. This automation not only boosts speed but also guarantees consistent dripper spacing — a key factor in uniform water distribution for crops.

2. Servo-Driven Extrusion and Precision Calibration

The extrusion process directly impacts drip tape thickness, durability, and material efficiency. The XDC-450 uses a servo direct-drive extruder, which offers two key advantages:

• Energy savings: Servo technology reduces power consumption compared to traditional extruders, lowering operational costs.

• Stable output: The servo drive maintains consistent extrusion pressure, ensuring uniform pipe thickness.

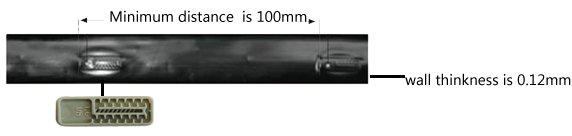

Complementing the extruder is a Germany-engineered extruder die head and calibrating system. This system allows real-time adjustment of tape thickness, ensuring compliance with strict quality standards. The thin-wall design (minimum thickness 0.12 mm) and lightweight construction (tape weight <7 g/m) reduce material usage by 30% — a significant cost-saving benefit enabled by precise, automated thickness control.

3. Automated Punching with Online Quality Monitoring

Punching accuracy is non-negotiable for drip tape: poorly aligned or missing holes disrupt water flow and render the tape unusable. The XDC-450 solves this with a 4-unit double automatic punching device — a world-leading technology that operates at 4,000 punches per minute.

What sets this system apart is its online automatic imaging analysis and monitoring punching system, controlled by a PLC. Here's how it ensures quality:

• Real-time monitoring: The imaging system captures and analyzes every punch, verifying hole position, size, and integrity.

• Error auto-alarm: If a punch is misaligned, missing, or defective, the PLC triggers an immediate alarm, stopping the line (if necessary) to prevent defective products from entering the next stage.

• Dynamic adjustment: The system tracks punching errors and automatically adjusts the punching mechanism in real time, minimizing waste and maintaining consistency.

This closed-loop quality control ensures punching rate — a critical metric for manufacturers and farmers alike.

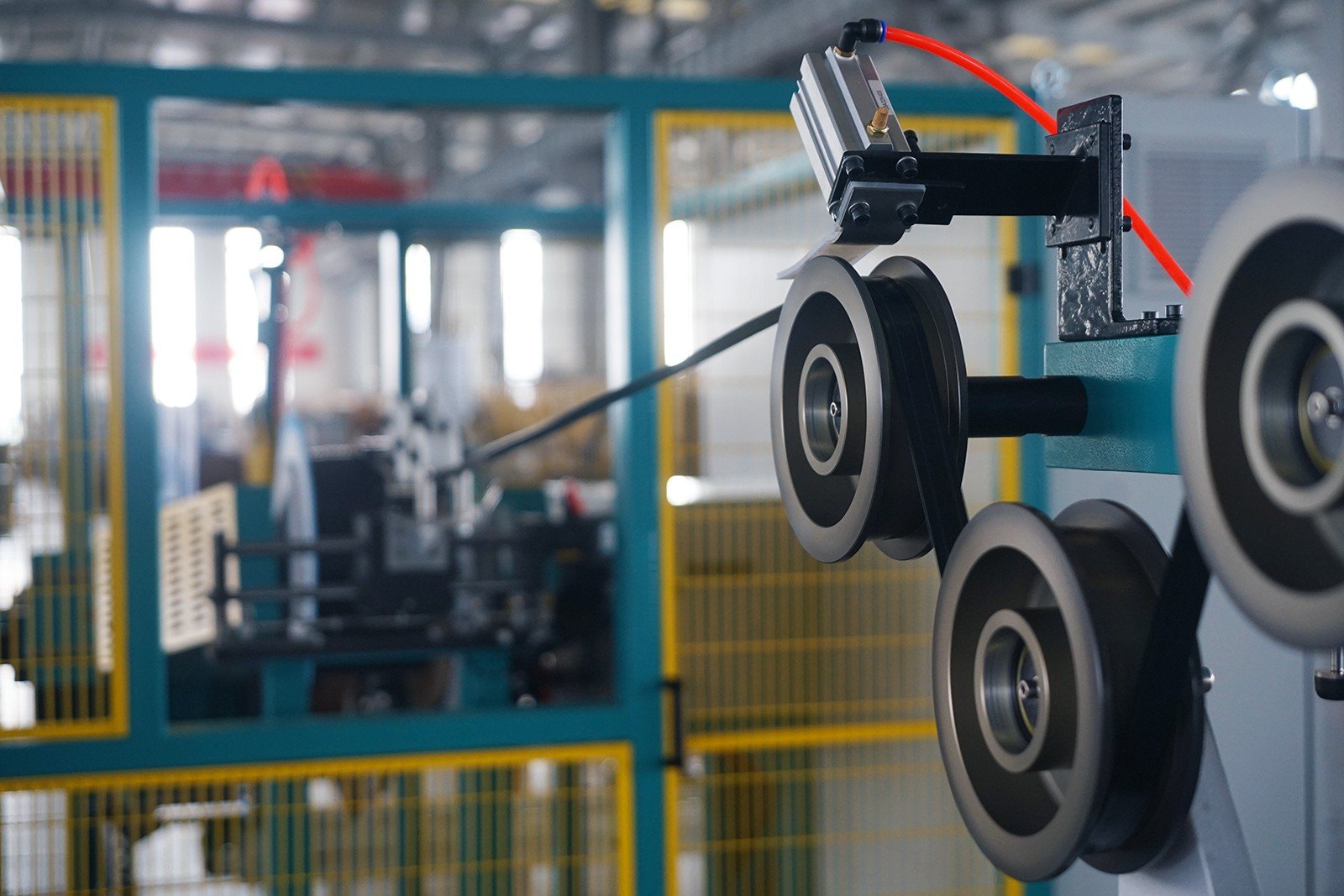

The Role of Automated Winder and Accumulator: Completing the Production Cycle

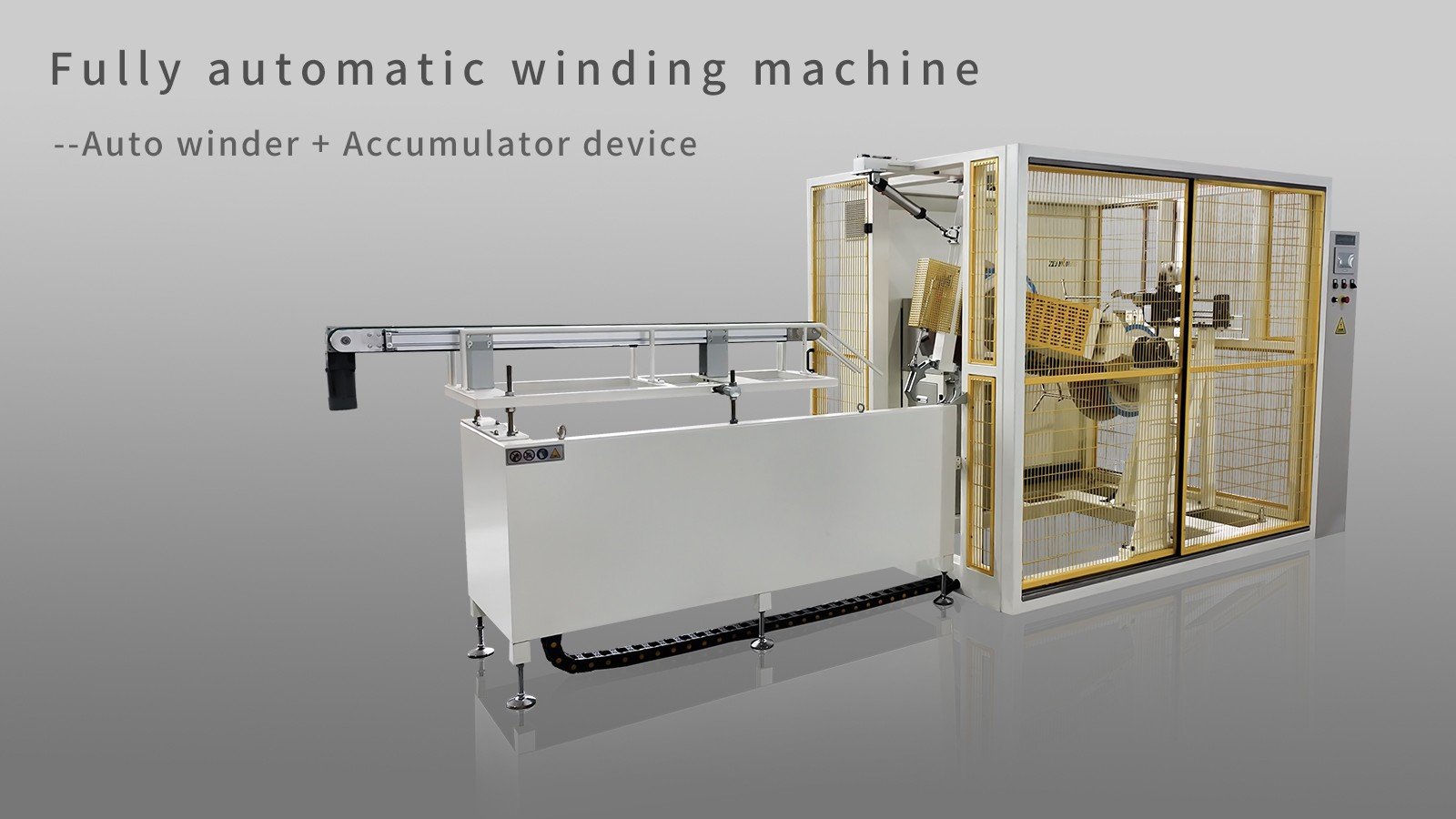

No high-speed manufacturing line is complete without a reliable winding system, which must keep pace with the line's output while ensuring neat, manageable rolls. The XDC-450 includes an automated winder integrated with a European parallel accumulator device — a combination that delivers seamless, efficient winding.

Key Features of the Automated Winder

• Servo motor drive: The winder is powered by a servo motor, which enables precise speed synchronization with the production line. This prevents tape stretching or slack, preserving the integrity of the drippers and punches.

• Multi-function automation: The system automates the entire winding process, including roll formation, slicing, roll changing, length metering, and cutting. Operators only need to initiate the process — no manual intervention is required for routine tasks.

• PLC control: Centralized PLC control ensures consistency across rolls and allows for easy adjustment of roll parameters to meet customer requirements.

The Critical Role of the Parallel Accumulator

The European parallel accumulator acts as a "buffer" between the production line and the winder. During roll changes, the accumulator stores excess drip tape temporarily. This eliminates the need to slow down or stop the high-speed extrusion and punching processes, maintaining the line's 450 m/min speed and maximizing productivity. Without the accumulator, frequent line stops would drastically reduce output and increase material waste — making it an indispensable component of the automated system.

Conclusion: Automation and Quality as Drivers of Agricultural Efficiency

Xindacheng's High Speed Internal Flat Dripper Irrigation Pipe Production Line represents the future of drip tape manufacturing — where automation and quality control work in tandem to deliver speed, cost savings, and reliability. From the servo-driven extruder and 4,500-dripper-per-minute feeder to the PLC-controlled punching system and automated winder, every component is designed to eliminate inefficiencies and ensure consistency.

For manufacturers, this translates to higher production volumes, lower material waste, and reduced labor costs. For farmers, it means access to lightweight, durable drip tapes that deliver uniform water distribution, boost crop yields, and conserve water — a critical advantage in an era of growing water scarcity. As agricultural technology continues to evolve, the XDC-450 stands as a testament to how automation and quality control can transform irrigation manufacturing, supporting sustainable and efficient agriculture worldwide.
