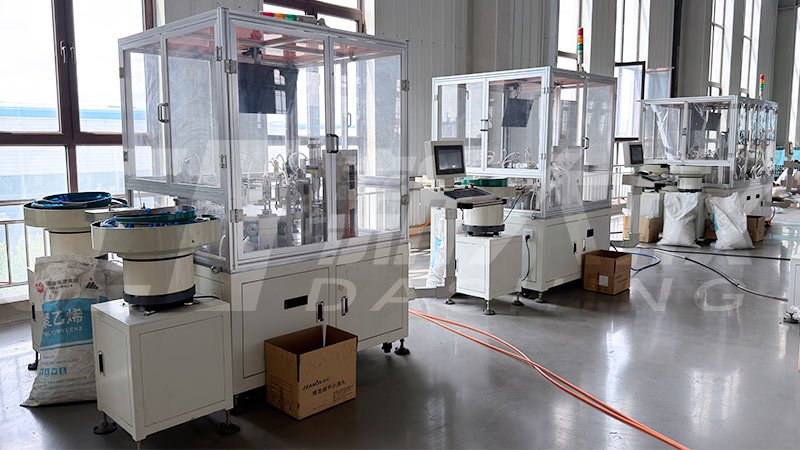

Pressure Compensating Dripper Assembly Machine: How PC Drippers Are Assembled

Pressure compensating drippers are widely used in irrigation systems where maintaining relatively consistent water discharge under different operating pressures is important. Compared with conventional drippers, a pressure compensating dripper contains an internal pressure-regulating structure that helps control water flow.

For manufacturers producing pressure compensating drippers, assembly is an important part of the manufacturing process. The components need to be correctly positioned and assembled to achieve consistent product performance. A pressure compensating dripper assembly machine is designed for this purpose, including the assembly of the pressure-regulating elastic component inside the dripper.

What Is a Pressure Compensating Dripper Assembly Machine?

A pressure compensating dripper assembly machine is equipment used to assemble the components of a pressure compensating dripper, also known as a PC dripper.

A typical PC dripper contains several components that work together to regulate water flow. One important component is the pressure-regulating elastic element, which responds to changes in water pressure and works with the internal structure of the dripper.

The assembly machine is designed to accurately handle and assemble these components rather than simply manufacture the individual dripper parts.

For irrigation dripper manufacturers, automated assembly can help improve assembly consistency and reduce the amount of manual work required during production.

How Does PC Dripper Assembly Work?

The exact assembly process depends on the structure and design of the pressure compensating dripper. In general, a PC dripper assembly machine may include component feeding, positioning and assembly operations.

The process can be understood as several basic stages.

1. Dripper Components Feeding

The individual components of the pressure compensating dripper are supplied to the assembly system.

Accurate feeding is important because different components may have different shapes, sizes and assembly positions. The feeding system needs to deliver the components in a suitable orientation for the following assembly operation.

2. Component Positioning

After feeding, the components need to be positioned correctly before assembly.

For a pressure compensating dripper, the position of the internal pressure-regulating component is particularly important because its location affects how the internal structure functions.

3. Installation of the Pressure-Regulating Elastic Component

One of the key operations in PC dripper assembly is installing the pressure-regulating elastic component into the dripper.

This elastic element is part of the pressure compensation mechanism. The assembly equipment needs to place it in the specified position according to the dripper design.

Accurate installation helps maintain consistency between assembled drippers.

4. Dripper Assembly

After the internal components have been positioned, the remaining components are assembled according to the product structure.

The specific assembly method depends on the dripper design, component configuration and required production process.

5. Finished Dripper Output

After assembly, the completed pressure compensating drippers are discharged from the machine for subsequent inspection, packaging or integration into the irrigation product manufacturing process.

Why Is Accurate PC Dripper Assembly Important?

The performance of a pressure compensating dripper depends not only on the design of its individual components but also on how those components are assembled.

For example, incorrect positioning of an internal pressure-regulating component may affect the operation of the compensation mechanism.

For this reason, manufacturers looking for pressure compensating dripper assembly equipment should consider the compatibility between the machine and their specific dripper design.

Important factors include the dripper dimensions, internal component structure, component feeding method and required production capacity.

What Types of Drippers Can the Machine Assemble?

Pressure compensating drippers can have different structures and dimensions depending on the irrigation application and product design.

Therefore, a pressure compensating dripper assembly machine should be selected according to the actual dripper structure rather than only the product name.

Before machine configuration, manufacturers should provide information such as:

• Pressure compensating dripper drawing

• Overall dripper dimensions

• Internal component structure

• Pressure-regulating elastic component specifications

• Material information

• Required production capacity

• Required automation level

These details allow the equipment configuration to be evaluated according to the actual assembly requirements.

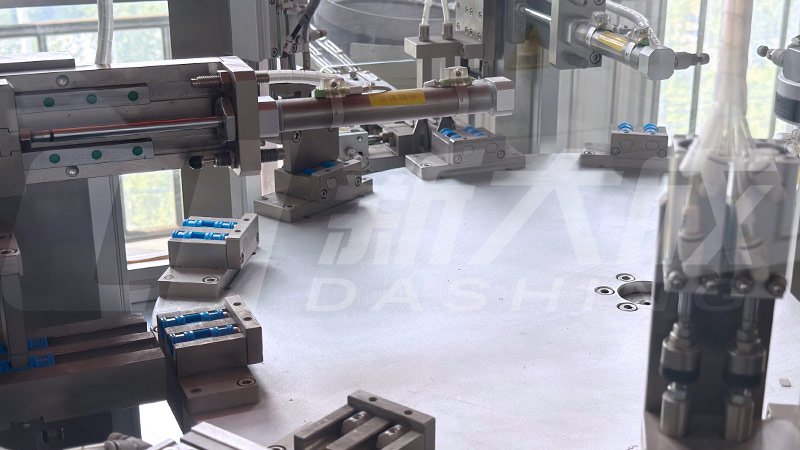

Automatic Pressure Compensating Dripper Assembly for Irrigation Production

Automation is increasingly important for irrigation component manufacturers seeking consistent production processes.

An automatic PC dripper assembly machine can integrate component feeding, positioning and assembly operations into a dedicated system. Compared with manual assembly, automated equipment can provide a more consistent assembly process and reduce dependence on manual component installation.

For manufacturers producing large quantities of pressure compensating drippers, the appropriate level of automation should be selected according to the required output, product structure and production plan.

How to Choose a Pressure Compensating Dripper Assembly Machine?

There is no single machine configuration suitable for every PC dripper. The correct equipment depends on the product design and manufacturing requirements.

Before contacting a machine manufacturer, it is useful to prepare the following information:

Dripper design: drawings, dimensions and internal structure.

Elastic component: dimensions and installation requirements of the pressure-regulating component.

Production capacity: required output or production target.

Automation: whether the machine will be used as a standalone assembly system or as part of a larger production project.

Product variation: whether one machine needs to handle different dripper models.

Providing this information can help the machine manufacturer evaluate the required assembly method and configuration more accurately.

Pressure Compensating Dripper Assembly Equipment for Your Project

A suitable assembly machine should be matched to the actual pressure compensating dripper design and production requirements.

If you are planning a pressure compensating dripper production project, you can provide the dripper drawing, component specifications, target output and other technical requirements. These details can be used to evaluate the suitable pressure compensating dripper assembly machine configuration for your application.

The machine can be considered for manufacturers that need dedicated equipment for assembling pressure compensating drippers and installing the internal pressure-regulating elastic component used in the compensation mechanism.
