In a drip tape production line, extrusion and emitter feeding must work together to produce tape with consistent dimensions and correctly positioned emitters. If tape speed changes without a corresponding adjustment to emitter feeding, the result may include inconsistent emitter spacing, missed insertion, or production interruptions. The exact causes depend on the line design, emitter type, control system, and product specifications.
This guide explains the relationship between line speed and emitter spacing, the main factors affecting synchronization, and the checks manufacturers should make when configuring a drip irrigation tape extrusion line.
Table of Contents
Why Synchronization Matters in Drip Tape Manufacturing

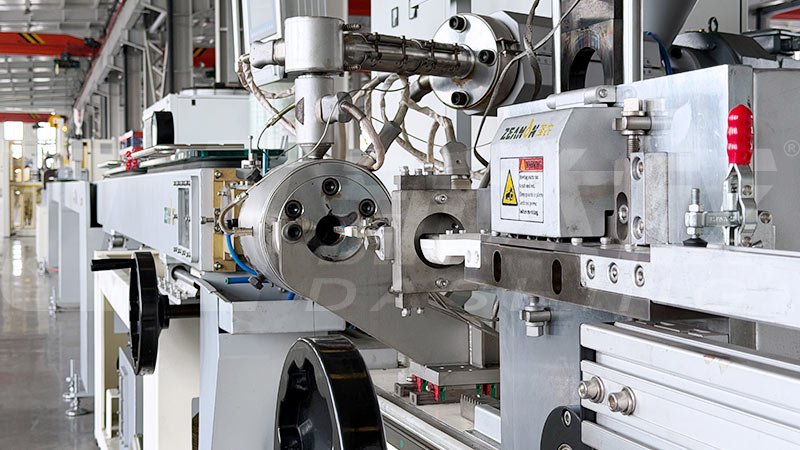

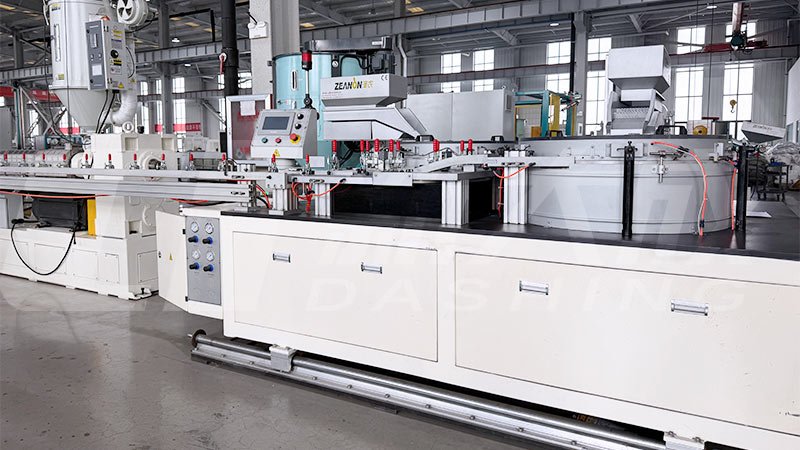

A drip tape production line may combine polymer extrusion, emitter feeding or insertion, cooling, haul-off, perforation, and winding. These operations are connected, so a change in one process can affect the others.
Emitter feeding must follow the actual movement of the tape and the required emitter spacing. Poor coordination can lead to spacing errors, missing emitters, rejected product, or unnecessary stops. Identifying the source of a problem is important: feeder timing, extrusion stability, haul-off, and cooling may require different adjustments.
The Relationship Between Line Speed and Emitter Spacing
When emitter spacing remains constant, increasing the tape line speed requires a proportional increase in the theoretical emitter feeding rate, assuming one emitter is placed at each specified interval.
Theoretical emitter feeding rate (emitters/min) = Line speed (m/min) × 1,000 ÷ Emitter spacing (mm)
For example, at a line speed of 100 m/min and an emitter spacing of 300 mm, the theoretical feeding rate is approximately 333 emitters per minute.
This calculation estimates the required emitter placement frequency based on line speed and spacing. It does not represent the machine's verified feeding capacity or maximum production speed. Actual operation depends on the feeder's rated capacity, emitter transfer and placement stability, control response, and the operating limits specified by the equipment manufacturer.
Use this calculation as an initial reference when checking whether the emitter feeding system can meet the required production rate. Confirm the final operating settings through equipment specifications and production testing.
Key Factors That Affect Synchronization
1. Actual tape speed
Check measured tape movement rather than relying only on a speed setpoint. Acceleration, deceleration, haul-off slip, or startup conditions can change the actual distance traveled.
2. Required emitter spacing
Confirm the target spacing and acceptable tolerance before setting the feeding rate. Different product specifications may require different rates.
3. Feeder capacity and response
The emitter feeding system must support the required rate without repeated interruptions. Rated capacity, emitter orientation, material replenishment, and the insertion or bonding mechanism can all affect performance.
4. Extrusion stability and tape dimensions
Changes in melt output, wall thickness, cooling, or haul-off can affect tape stability. Synchronization settings cannot correct every upstream extrusion problem.
5. Control and signal coordination
Depending on the equipment design, coordination may use encoder feedback, a shared speed reference, servo control, or linked operating settings. The correct method depends on the line's control architecture.
Common Synchronization Problems and Troubleshooting
| Observed issue | Possible factors | What to check |
Inconsistent emitter spacing | Unstable tape speed, feeder timing, or speed measurement | Compare actual line speed with feeding timing and measure spacing on tape samples. |
Missing emitters | Interrupted feeding, incorrect orientation, or insertion problems | Inspect the feeding path, emitter supply, orientation, and insertion operation. |
Frequent stops at higher speeds | Feeder limits, control response, or downstream constraints | Confirm rated feeder capacity and test in controlled speed increments. |
Fluctuating tape dimensions | Extrusion, cooling, haul-off, or material conditions | Check the relevant process conditions separately before changing feeder settings. |
Settings fail at different speeds | Fixed timing or insufficient speed coordination | Verify how the feeding rate responds to changes in actual tape speed. |
These are troubleshooting starting points rather than definitive diagnoses. Inspect the equipment and production samples to confirm the cause.
A Practical Setup Checklist
Confirm tape dimensions, wall thickness, emitter type, required spacing, and target production speed.
Check that the feeder and insertion system support the required operating rate.
Verify the actual tape speed measurement and the method used to coordinate the feeder with the main line.
Start at an approved commissioning speed and inspect emitter position, spacing, and tape dimensions.
Increase speed in controlled steps while recording settings and checking samples.
If defects appear, investigate feeding, extrusion, cooling, and haul-off conditions separately.
Record accepted operating conditions for each product specification and follow the manufacturer's procedures.
What to Confirm When Selecting a Drip Tape Production Line
Do not evaluate a drip tape production line by extruder speed alone. Confirm the intended tape dimensions, wall thickness, emitter type, emitter spacing, target output, feeding method, perforation requirements, cooling and haul-off arrangement, and winding configuration.
Ask the supplier how emitter feeding is coordinated with actual line speed, what operating range is supported, and how performance will be checked during commissioning. If the project requires multiple tape specifications or emitter spacings, provide those requirements before the equipment configuration is finalized.
Explore our drip irrigation tape production line and related drip tape and pipe winding equipment. Contact our team to discuss the configuration required for your project.
Frequently Asked Questions
How is the emitter feeding rate calculated?
A simplified theoretical rate is line speed in meters per minute multiplied by 1,000 and divided by emitter spacing in millimeters. The feeder's rated capacity and operating method must also be checked.
Can increasing extrusion speed affect emitter spacing?
Yes. If tape speed increases but emitter feeding timing does not adjust accordingly, emitter spacing may change. The result depends on the line's synchronization and control design.
Why can emitter spacing vary during startup?
During acceleration, the tape may not yet be moving at its target speed. Feeder response and the startup sequence can affect the first section of tape. Follow the commissioning procedure and inspect startup samples.
What information should I provide when requesting a drip tape production line?
Provide tape dimensions, wall thickness, emitter type, required spacing, target output, perforation requirements, and winding preferences. These details help the supplier assess the appropriate line configuration.
