How to Choose a Drip Irrigation Tape Production Line for Different Tape Specifications
Table of Contents
What Specifications Should Be Considered Before Choosing a Drip Tape Production Line?
How to Select the Right Drip Irrigation Tape Production Line
Choosing the right drip irrigation tape production line starts with the specifications of the drip tape to be produced. Diameter, wall thickness, emitter spacing, production speed, punching method, and finished roll requirements all affect the configuration of the extrusion line.
For manufacturers planning to produce different types of drip irrigation tape, understanding these factors can help determine the appropriate drip tape production line and avoid selecting equipment based only on its maximum output.
What Specifications Should Be Considered Before Choosing a Drip Tape Production Line?
Before selecting a drip tape manufacturing machine, manufacturers should define the required product specifications and production capacity.
The main parameters include:
Drip tape diameter
Drip tape wall thickness
Emitter spacing
Dripper flow rate
Hole size and punching pattern
Production speed
Required output
Finished roll length
Winding method
These parameters provide the basis for configuring the extruder, forming system, punching unit, inspection system, and automatic winding machine.
For example, a production line designed for thin-wall drip tape may require more precise control of material output, cooling, traction, and winding tension than a line producing thicker tape.
Drip Tape Diameter and Wall Thickness
Diameter and wall thickness are two basic parameters when configuring a drip tape extrusion line.
The extrusion system needs to provide stable melt output across the required production range. Consistent material distribution is particularly important for thin-wall drip tape because variations in wall thickness can affect product performance and material consumption.
A manufacturer planning to produce several drip tape sizes should therefore provide the complete diameter and wall thickness range when requesting a drip irrigation tape machine.
The equipment configuration can then be evaluated according to the required product range rather than a single tape specification.
Production Speed and Output
Production speed is another important factor when selecting a drip irrigation tape production line.
A high-speed line needs coordinated control of extrusion, forming, cooling, traction, punching, inspection, and winding. Increasing the extrusion speed without considering the downstream equipment can affect dimensional stability and finished roll quality.
For manufacturers targeting large production volumes, a high speed drip tape production line can provide higher output per production shift. However, the required speed should always be considered together with the product specification and actual production demand.
The suitable production capacity depends on the target market, working hours, product range, and expected annual output.
Emitter Spacing and Punching Requirements
Emitter spacing is an important specification for drip irrigation products.
Different agricultural applications may require different emitter spacing, so the drip tape production line should be configured according to the required spacing range.
The punching system must also remain synchronized with the tape speed to maintain consistent hole positioning. Depending on the product design, different punching or forming solutions can be used.
When purchasing a drip tape extrusion machine, manufacturers should therefore specify the required emitter spacing and punching pattern in advance.
Cooling and Forming System
After extrusion, the hot polymer material needs to be formed and cooled into the required tape dimensions.
Stable cooling and forming are important for maintaining the dimensional accuracy of the finished drip tape. The cooling section should match the required production speed and tape specifications.
For a high-output drip irrigation tape production line, the extrusion and cooling systems need to operate continuously and consistently with the traction system.
This is particularly relevant when producing thin-wall drip tape at higher speeds.
Automatic Inspection and Quality Control
Quality control is an important part of modern drip tape manufacturing.
Depending on the production line configuration, inspection can be used to monitor product appearance, dimensions, punching position, and other production parameters.
Stable extrusion conditions combined with effective inspection can help manufacturers identify production deviations before large quantities of tape are produced.
For manufacturers supplying agricultural irrigation markets, consistent product quality is especially important because variations in tape dimensions or outlet positioning can affect installation and irrigation performance.

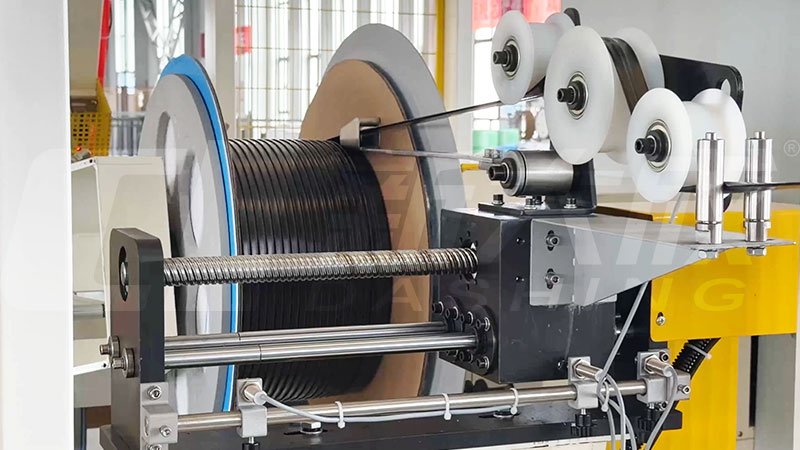

Automatic Winding for Finished Drip Tape Rolls
The final stage of a drip tape production line is winding the finished tape into rolls.
A drip tape and pipe winding machine can control winding length, tension, cutting, roll changeover, and unloading according to the required level of automation.
For high-volume production, automatic winding can reduce manual operations and maintain consistent roll formation. The winding system should be selected according to the required roll length, roll diameter, tape speed, and packaging process.
Therefore, the winding section should be considered as part of the complete drip tape manufacturing machine, rather than as an independent unit.
How to Select the Right Drip Irrigation Tape Production Line
There is no single configuration suitable for every drip tape manufacturer. The appropriate equipment depends on the required product specifications and production target.
Before purchasing a drip irrigation tape production line, manufacturers should confirm:
Tape diameter: What diameter range will be produced?
Wall thickness: Is the line intended for standard or thin-wall drip tape?
Emitter spacing: What spacing range is required?
Production speed: What output is required per minute or per hour?
Punching: What hole size, position, and punching method are required?
Winding: What roll length and winding method are required?
Automation: Which processes need automatic inspection, roll changeover, and unloading?
Product range: Will the same line produce multiple tape specifications?
Providing these details allows a drip tape production line manufacturer to evaluate the required extrusion, forming, punching, inspection, and winding configuration more accurately.
Choosing a Drip Tape Production Line Manufacturer
For a complete drip tape production line, equipment integration is as important as the performance of individual machines. The extruder, forming system, punching unit, inspection system, and winding machine need to work together according to the target product specifications.
Xindacheng manufactures drip irrigation tape and pipe production lines for different product specifications and production requirements. Its equipment range covers extrusion, punching, inspection, and automatic winding processes for drip irrigation products.
For a detailed explanation of the complete production process, see our drip tape production process guide.
Manufacturers planning a new drip tape production line can provide their required tape diameter, wall thickness, emitter spacing, production speed, and roll specifications for equipment evaluation.
Conclusion
Selecting a drip irrigation tape production line should begin with the finished product requirements rather than the machine's maximum speed alone. Diameter, wall thickness, emitter spacing, production capacity, punching requirements, and winding specifications all influence the final equipment configuration.
A properly configured drip tape extrusion line can provide stable production across the intended product range, while an appropriate punching, inspection, and winding system helps maintain consistent finished rolls.
For manufacturers looking for a drip tape manufacturing machine, defining the product specifications and production target in advance is the first step toward selecting a suitable production line.
