How a Drip Irrigation Tape Production Line Works: From Extrusion to Finished Roll
Table of Contents
What Is a Drip Irrigation Tape Production Line?
A drip irrigation tape production line is an integrated system used to manufacture thin-wall drip irrigation tape with regularly positioned water outlets or embedded drippers. The production process normally includes plastic extrusion, dripper feeding and insertion, sizing and cooling, haul-off, punching and automatic winding.
Unlike a single extrusion machine, a complete drip tape production line requires coordination between material output, dripper feeding, line speed, punching position and winding speed. The final production result depends on the operation of the complete system rather than the rated speed of one machine.
The Main Production Stages of Drip Irrigation Tape

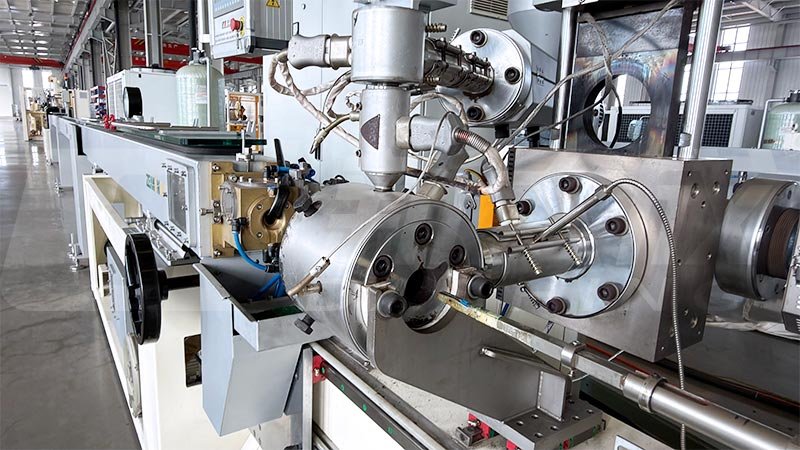

1. Plasticizing and Extrusion
Plastic resin is fed into the extrusion system, where it is plasticized and formed into the required tape profile. Extrusion conditions affect wall thickness, dimensional stability and the consistency of the finished tape.
Material selection and extrusion parameters should be determined according to the required tape specification, wall thickness and production speed.
2. Dripper Feeding and Insertion
For drip tape with embedded flat drippers, the drippers must be supplied and positioned continuously during extrusion. The feeding system needs to maintain a stable supply rate and coordinate with the extrusion speed.
Dripper spacing is determined according to the irrigation application and product specification. Incorrect synchronization can result in missing or incorrectly positioned drippers.
3. Sizing and Cooling
After forming and dripper insertion, the tape passes through sizing and cooling sections. These sections help establish the final dimensions and stabilize the material before downstream processing.
Cooling conditions need to remain consistent with the material and production speed. Stable sizing is particularly important for thin-wall drip tape because small dimensional variations can affect the finished product.
4. Haul-Off and Line-Speed Control
The haul-off system controls the movement of the tape through the production line. Its speed must be coordinated with extrusion output and other downstream processes.
Stable line-speed control helps maintain consistent wall thickness, dripper spacing and punching position. For high-speed production, synchronization between different sections becomes increasingly important.

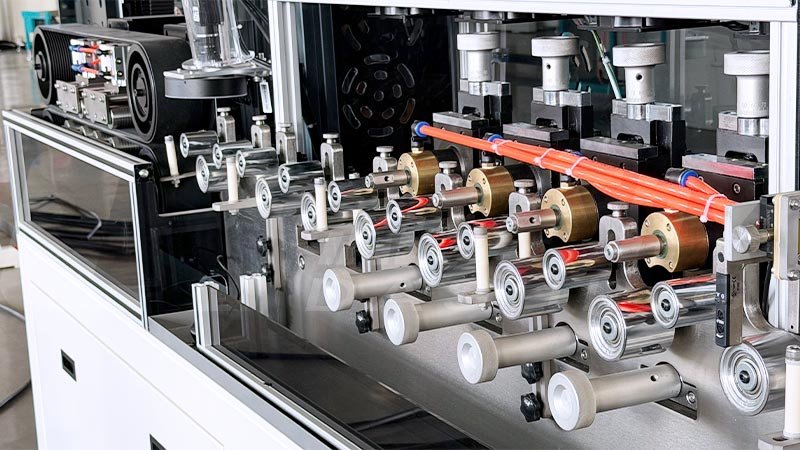

5. Punching or Hole Formation
Depending on the product design, holes may be formed at specified positions along the tape. The punching system must work together with the line-speed control system to maintain the required hole spacing and position.
For production lines using scoring or laser punching technology, the processing method can be selected according to the tape structure and required production configuration.
6. Automatic Winding
The finished drip tape is collected by a winding system after the production process. An automatic winder can control tape arrangement, length measurement, cutting, roll change and unloading.
For continuous production, the winding section is part of the overall production capacity. If winding cannot keep pace with extrusion, the actual output of the complete line may be limited even when the extrusion section operates at a higher speed.
Why Line Synchronization Matters More Than a Single Machine Specification
A drip irrigation tape production line contains several processes that operate continuously. Extrusion, dripper feeding, haul-off, punching and winding need to work at compatible speeds.
For example, increasing extrusion speed without adjusting dripper feeding or punching speed can affect dripper spacing and hole positioning. Similarly, a high extrusion output does not automatically mean that the complete line can maintain the same finished-product output.
For this reason, production line evaluation should consider the coordinated performance of the complete system rather than maximum speed alone.
What Specifications Should Be Confirmed Before Buying a Drip Tape Production Line?
The main product and production parameters should be confirmed before selecting equipment. Important information includes:
Drip tape diameter or width
Wall thickness
Dripper type and dimensions
Dripper spacing
Required water outlet configuration
Target production speed
Required roll length
Required level of automation
Production material and formulation
These specifications determine the configuration of the extrusion, dripper feeding, punching and winding sections.
Production Speed Is Not the Only Measure of a Drip Tape Line
Production speed is an important parameter, but it should be evaluated together with product stability and actual operating requirements. A suitable line should maintain consistent tape dimensions, dripper positioning, punching accuracy and winding quality at the required production speed.
Xindacheng's XDC-DGG-450B drip line equipment is designed for Φ12–20 mm drip products, with a maximum line speed of up to 450 m/min under specified production conditions. The system can support dripper feeding of up to 4,500 pieces/min and punching speeds of up to 4,000 holes/min, depending on the configuration and product requirements.
Actual production capacity depends on product specifications, material conditions, process parameters and equipment configuration.
How to Plan a Drip Irrigation Tape Manufacturing Line
A practical production plan normally starts with the finished drip tape specification rather than the machine model. The required tape size, wall thickness, dripper type, spacing and roll length should be defined first.
The equipment configuration can then be selected around these requirements. This approach helps ensure that extrusion, dripper feeding, punching and winding capacity are properly matched.
Frequently Asked Questions
What machine is used to manufacture drip irrigation tape?
Drip irrigation tape is normally manufactured using a complete production line that integrates extrusion, dripper feeding, forming, cooling, haul-off, punching and winding equipment.
What is the difference between a drip tape machine and a drip tape production line?
A drip tape machine may refer to an individual section or the complete equipment. A production line normally refers to the integrated system covering extrusion and the downstream processes required to produce finished drip tape.
What information is needed to select a drip irrigation tape production line?
The manufacturer normally needs the required tape size, wall thickness, dripper type, dripper spacing, production speed, roll length and automation requirements.
Can one drip tape production line produce different specifications?
This depends on the machine configuration and the range of products to be produced. The required product specifications should be confirmed before equipment selection.
Is a high-speed drip irrigation tape production line always the right choice?
Not necessarily. The appropriate production speed depends on the required output, product specification, material, automation level and the capacity of the complete production system.
From Production Line Design to Finished Drip Tape
A drip irrigation tape production line is a coordinated manufacturing system. Product specifications should be defined first, followed by selection of extrusion, dripper feeding, punching and winding equipment.
For a new project or an existing production line upgrade, providing the target tape specifications and production requirements allows the equipment configuration to be evaluated according to the actual application.
Xindacheng provides drip irrigation tape production equipment and related systems for different product specifications and production requirements.
Planning a drip irrigation tape production line?
Send us your tape diameter, wall thickness, dripper type, spacing and target production speed. Our technical team can review the requirements and recommend a suitable line configuration.
