Drip irrigation pipe production line
Technical parameter：
Item | Pipe diameter | Pipe thickness | Production speed | Distance of dripper |
XDC-450 | Φ12-16-20-22-25mm | 0.12-0.6mm 0.2-1.0mm （optional） | 400-450m/min | 100、150、200、300、400、500-1500mm |
| Distance 100mm | Line speed 400m/min |
| Distance 200mm | Line speed 450m/min |
| Distance 300mm | Line speed 450m/min |
Product description：

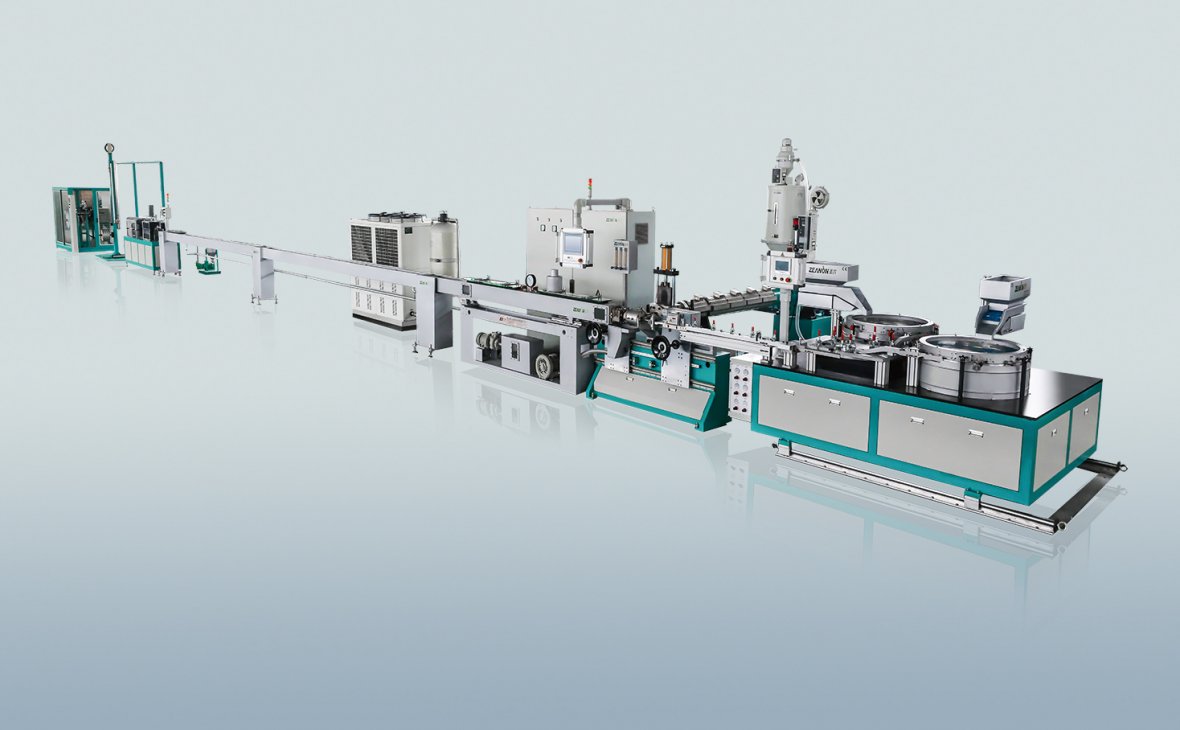

Qingdao Xindacheng, under its independent brand ZEANON, offers a state-of-the-art High-Speed Internal Flat Dripper Irrigation Pipe Production Line, designed for superior performance in water-saving agricultural applications. This fully automated drip irrigation pipe production line produces drip pipes with diameters ranging from Φ12mm to Φ25mm and wall thickness as fine as 0.12mm, achieving remarkable line speeds of up to 450 meters per minute.
The production line integrates European technology and features a high-precision double-set dripper feeder capable of inserting 4,500 drippers per minute. With an intelligent dripper buffer mechanism, the system ensures continuous operation without interruption. An advanced online imaging and monitoring punching unit tracks perforation status in real time, supported by PLC control for automatic error alerts and consistent product quality.
Feature 1: Material Efficiency
ZEANON irrigation pipe weighs under 7grams per meter, reducing raw material usage by 30% and significantly lowering production costs.

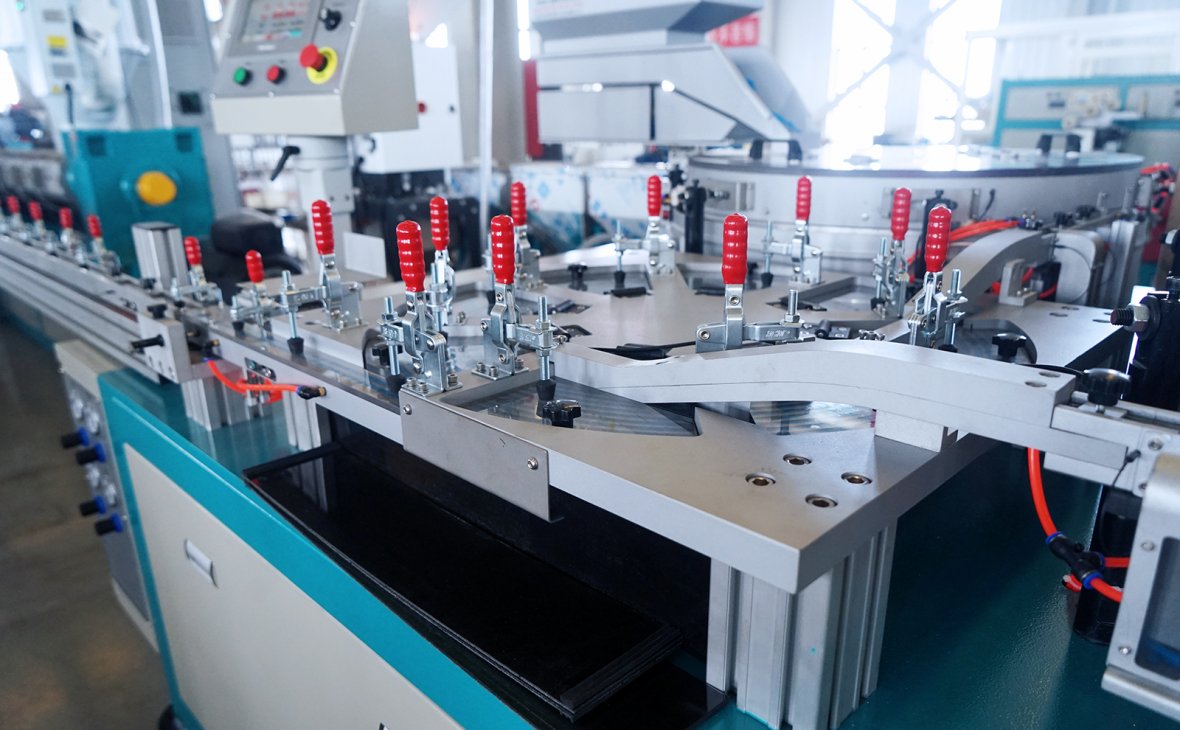

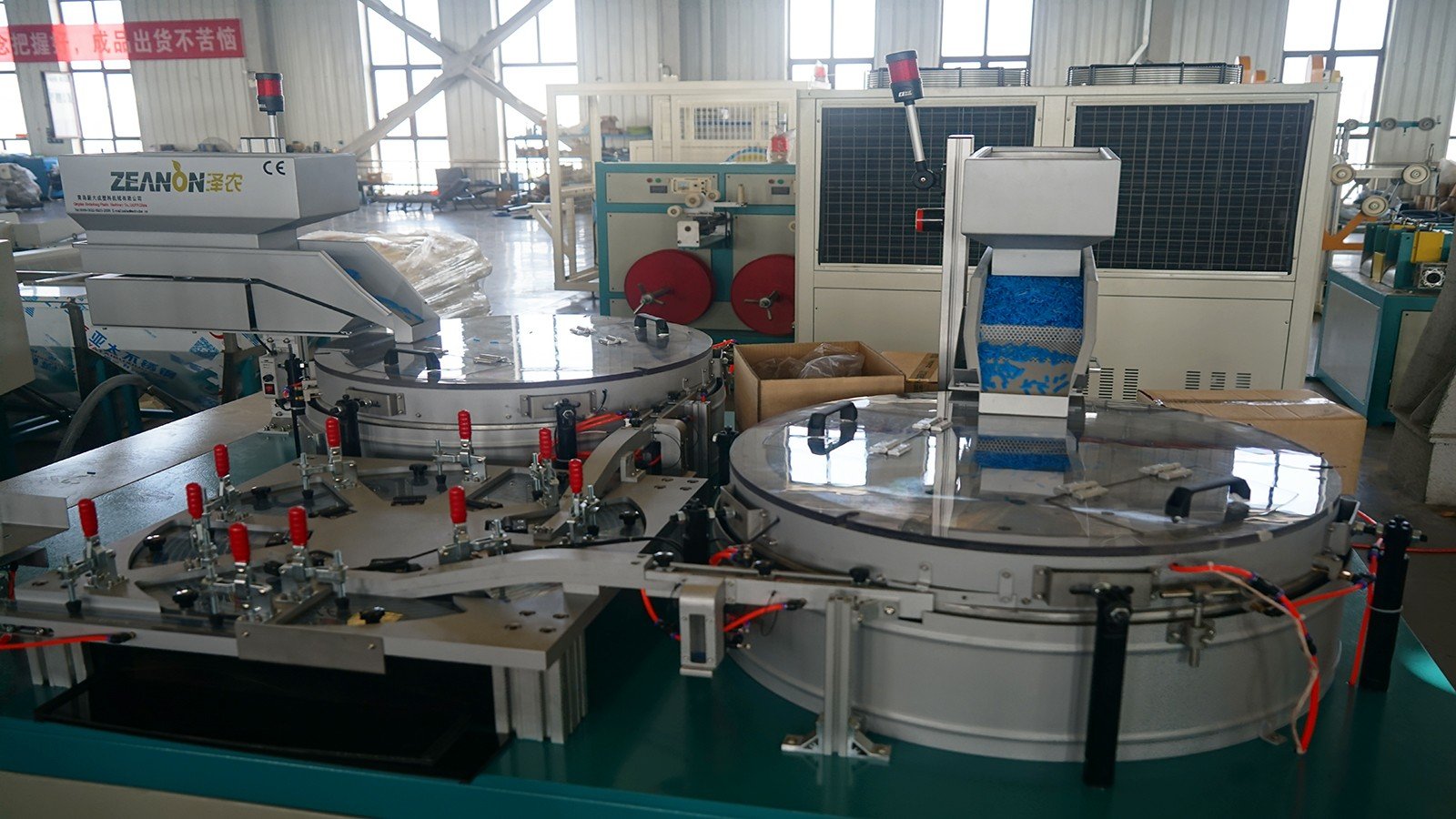

Feature 2: High-Speed Dripper Screening
Equipped with double-set of automatic screening and identification devices.
The screening number of drippers 4,500 per minute with precision and stability.

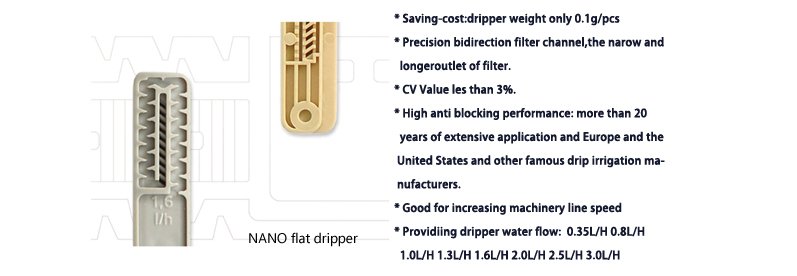

Feature 3: Premium Dripper
Ultra-lightweight dripper weighing merely 0.1g per piece, exclusively distributed in China by Qingdao Xindacheng.
Manufactured in Europe using high-efficiency injection molding technology for superior performance.
Ensures consistent product quality and reliability.

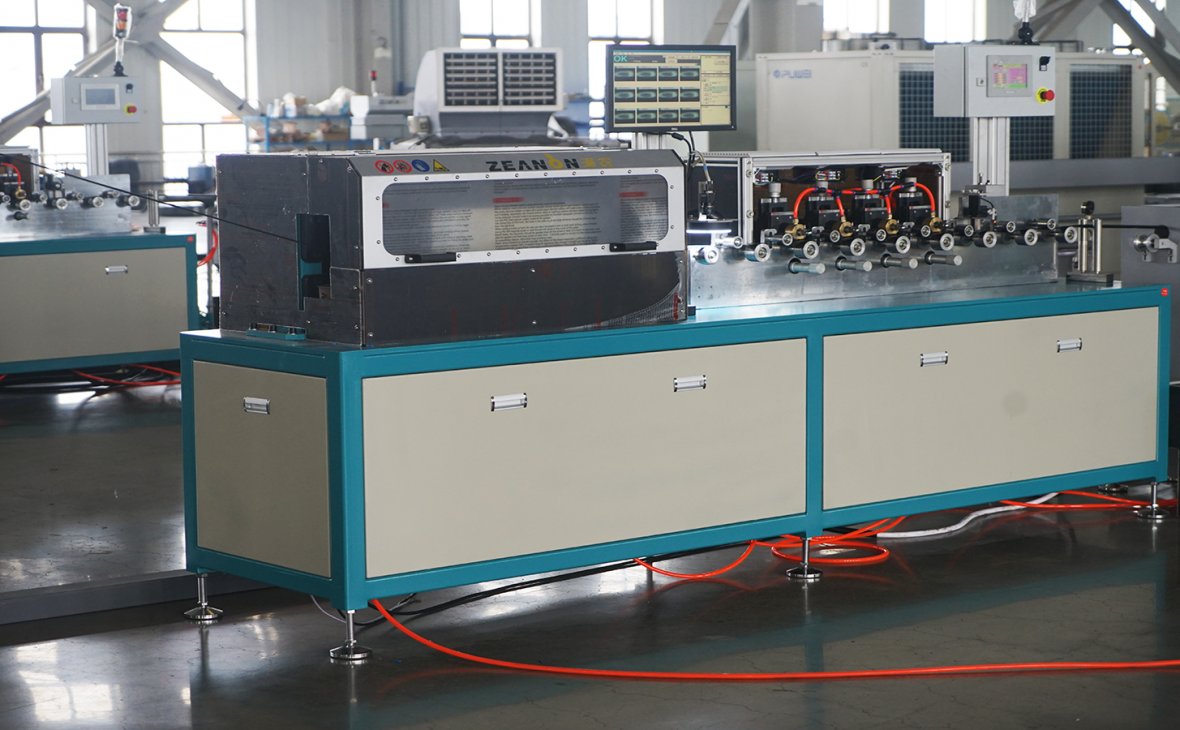

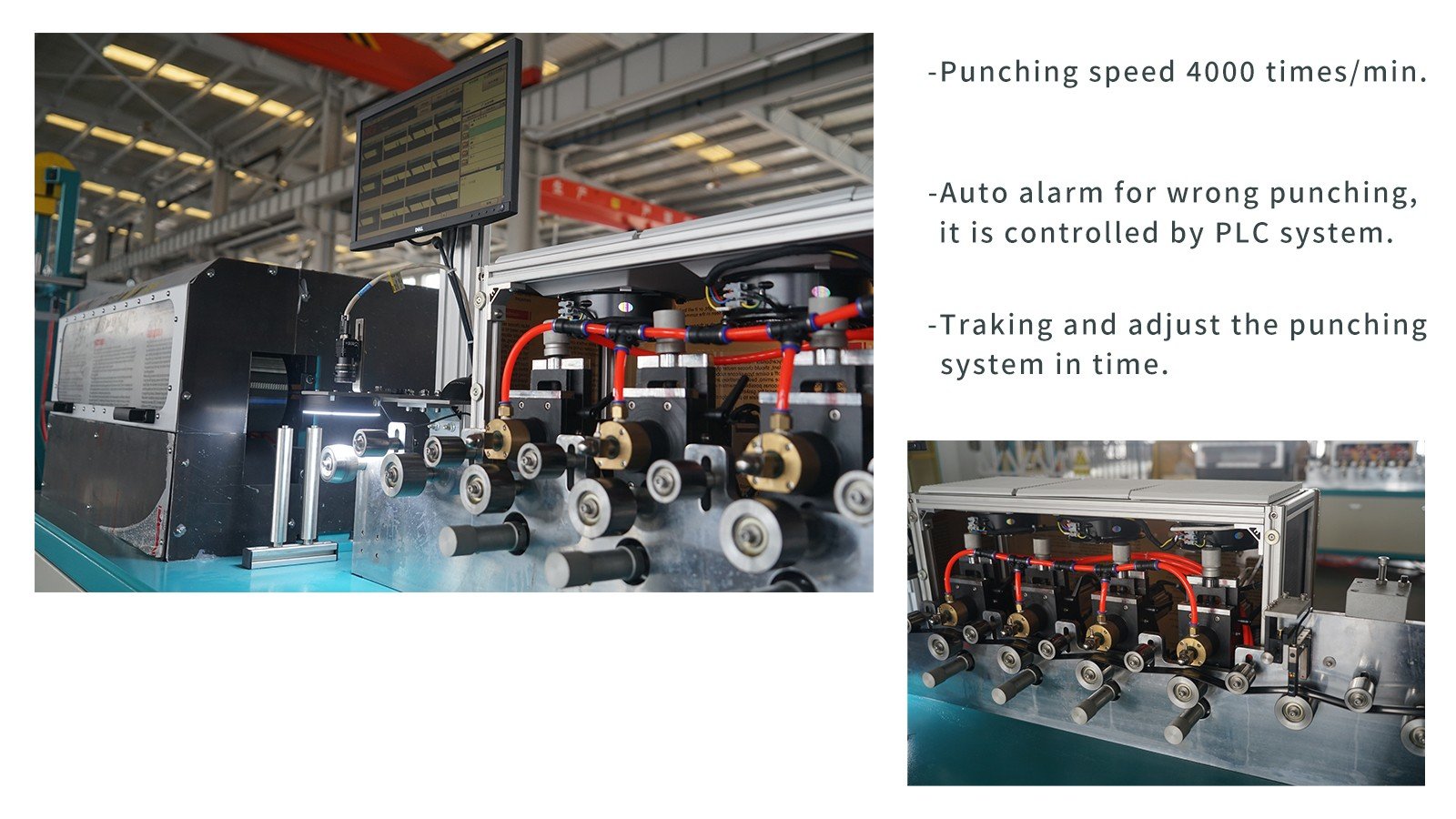

Feature 4: Intelligent Punching System
Punching speed 4000 times/min.
Double automatic punching (four units) with real-time online monitoring and image recognition.
The PLC-controlled system enables automatic error alarm, instant tracking, and continuous self-adjustment for flawless perforation.
Feature 5:

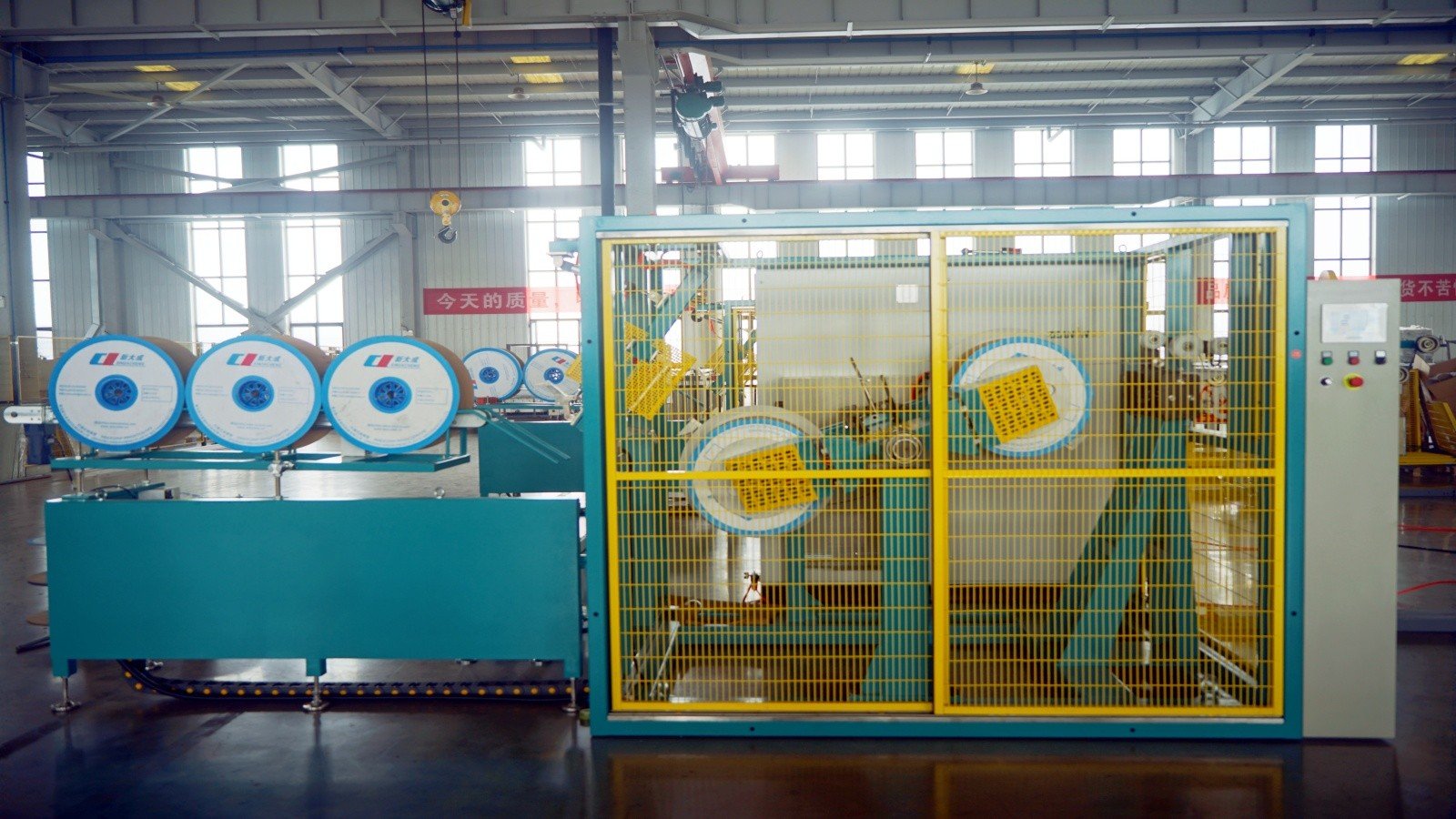

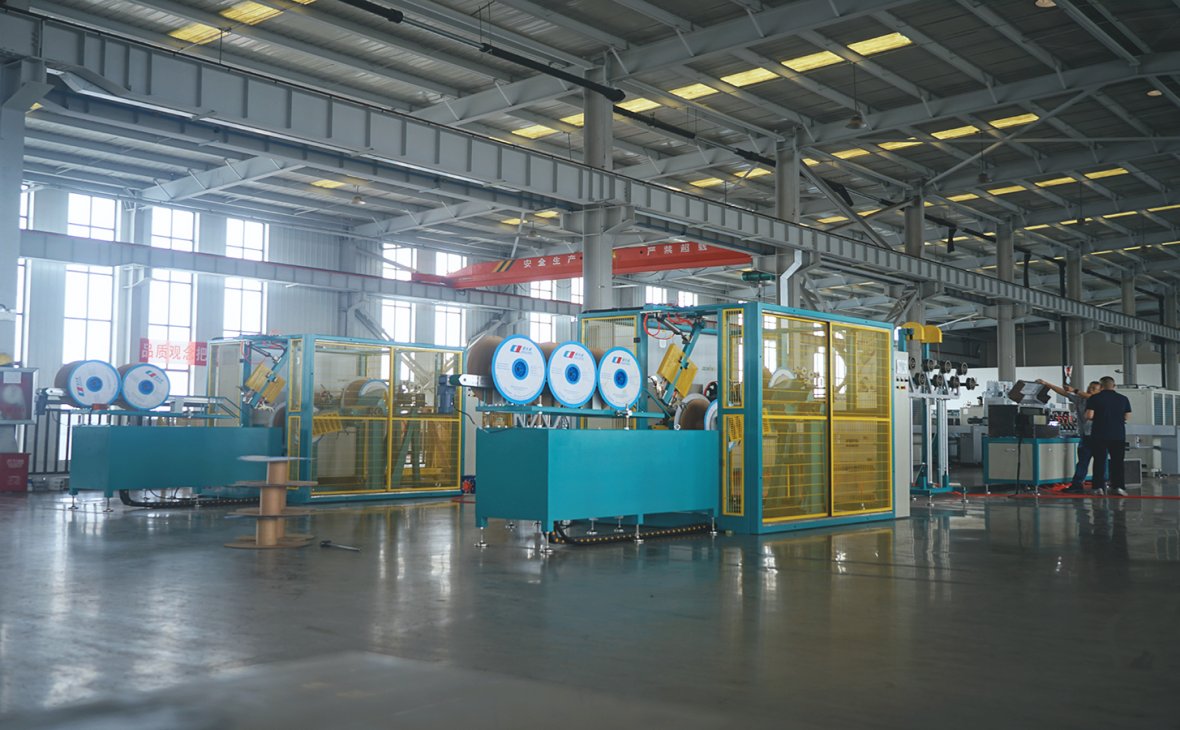

Fully Automatic Winding and Accumulation System
Equipped with an auto winder and European-style parallel pipe accumulator for continuous operation.
Servo motor-driven coiling ensures precise tension control and neat, uniform pipe winding.
Seamlessly integrated PLC system enables fully automatic cutting, switching, counting, and packaging.
Designed as the final and essential module of the drip irrigation production line, it significantly enhances efficiency and reduces manual intervention.
