How Drip Irrigation Pipe is Made: Process, Technology & Sustainability
Drip irrigation has transformed modern farming by delivering water directly to plant roots with maximum efficiency. But how is the essential component—drip irrigation pipe—manufactured at scale? This behind-the-scenes look uncovers the sophisticated production process that combines cutting-edge engineering, automation, and stringent quality control. Using Qingdao Xindacheng's industry-leading high-speed internal flat dripper production line as a case study, we break down how drip tape is made—from raw materials to finished roll.

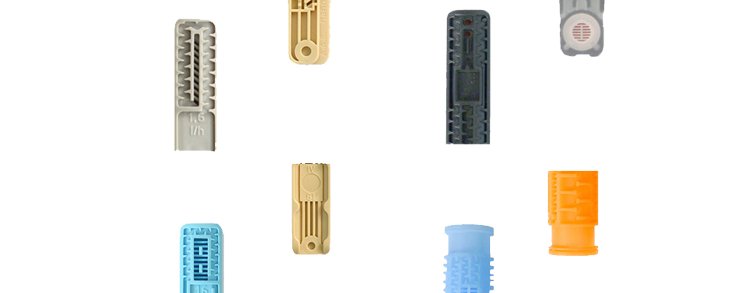

Step 1: Dripper Preparation – The Heart of the System
The internal flat dripper is the core of any drip irrigation system. These micro-engineered components regulate flow, prevent clogging, and ensure even water distribution.

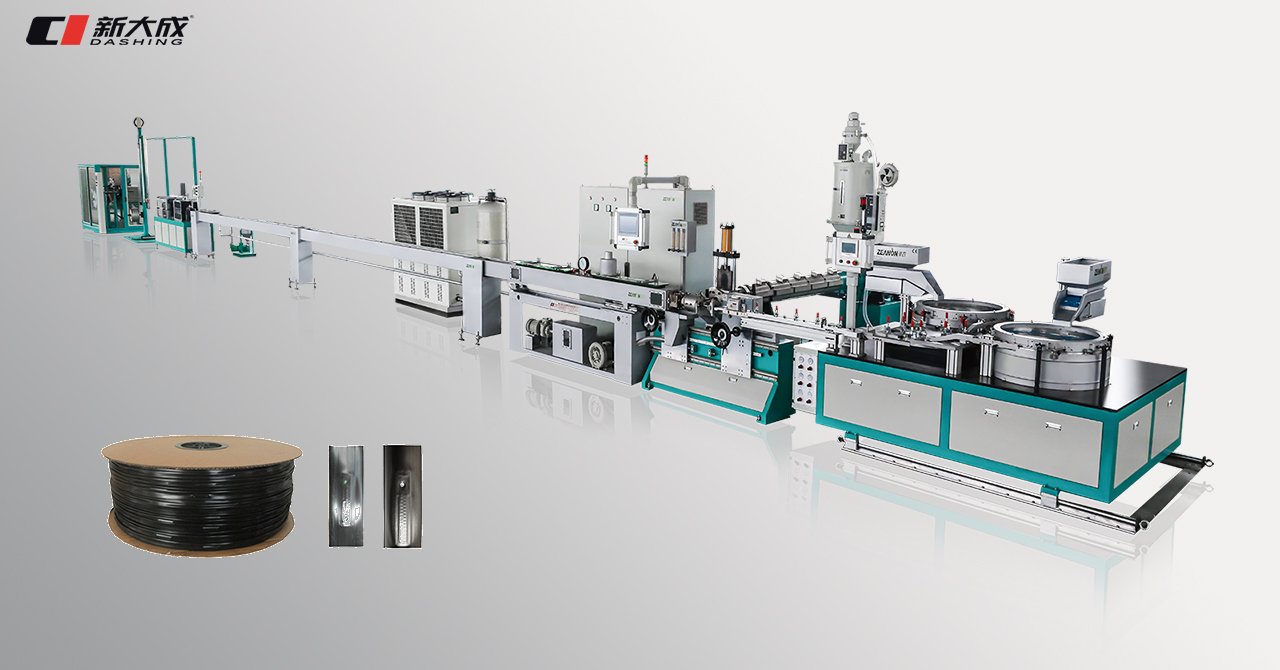

In the High Speed Internal Flat Dripper Irrigation Pipe Production Line:
Drippers are imported and weigh only 0.1g each, reducing material use without compromising durability.
Each unit includes a bidirectional filter and a narrow outlet, with a CV under 3%—guaranteeing consistent flow rates from 0.35L/H to 3.0L/H.
A double-set feeder inserts up to 4,500 drippers per minute. An integrated buffer prevents jams and avoids production stoppages.
Step 2: Pipe Extrusion – Transforming Pellets into Thin-Wall Tubing
The pipe itself begins as polyethylene pellets. These are melted and shaped through an advanced servo direct-drive extruder.
Key features of this stage:
A German-engineered die head allows adjustable wall thickness from 0.12mm to 1.0mm.
The thin-wall design uses 30% less plastic, resulting in pipe weighing under 7g per meter.
A calibration system ensures perfect diameter consistency (sizes include Φ12mm to Φ25mm).
Step 3: Dripper Integration – High-Speed Precision Placement
Drippers are inserted into the pipe at customizable intervals: 100mm, 200mm, 300mm, and up to 1500mm.
The line achieves:
Speeds of 450 meters per minute at 200mm/300mm spacing.
400 meters per minute at tighter 100mm spacing.
Continuous feeding via a dripper storage system, enabling non-stop production.
Step 4: Hole Punching – Accuracy Guaranteed by Vision Systems
Precision-punched holes allow water to escape aligned with each dripper. Any misalignment causes irrigation failure.
Xindacheng's system includes:
A 4-unit double automatic punching mechanism capable of 4,000 punches/minute.
Real-time imaging analysis and PLC-controlled auto-correction, ensuring 100% punching accuracy and instant error alerts.
Step 5: Winding and Metering – Automation to the Finish
The pipe is wound into uniform rolls using a servo-driven auto-winder and a parallel accumulator.
This stage offers:
Fully automatic spool changing and cutting.
Precise length measurement per roll.
No manual handling—reducing labor and ensuring consistency.
Why It Matters: Efficiency, Sustainability & Performance
Modern drip irrigation pipe production isn’t just about speed—it’s about building a more sustainable and productive agricultural future.
Eco-Friendly Design: Thin-wall and lightweight dripper technology cuts plastic use by 30%.
Farm-Ready Performance: CV < 3% ensures even water distribution for higher crop yields.
Long Lifespan & Low Maintenance: Anti-clogging drippers extend pipe life to over 20 years.Global Accessibility: High-speed production lowers costs, making water-efficient irrigation viable for more farmers.
Conclusion
From raw polymer to precision-perforated pipe, the manufacturing of drip irrigation systems is a feat of engineering that supports sustainable agriculture worldwide. Understanding how drip tape is made—and what technologies ensure its quality—helps farmers, irrigators, and industry professionals make smarter, more informed choices.
