PET Strapping band Winder
Technical Parameters
| Item | Specification |
|---|---|
| Application | PET Strapping Band Winding |
| Strap Width Range | 5–32 mm |
| Standard Roll Core Diameters | 200 mm / 405 mm |
| Other Core Sizes | Customizable |
| Winding Control | Servo-Controlled Traversing |
| Speed Control | Inverter-Based Closed-Loop Control |
| Tension Control | Automatic Adjustment |
| Jumbo Winder Capacity | Up to 300 kg per roll |
| Jumbo Reel Diameter | Up to 1,500 mm |
| Available Configurations | Automatic / Semi-Automatic / Single-Station / Double-Station |
Specifications vary by model. Jumbo roll capacity and maximum reel diameter apply to the corresponding heavy-duty configuration, not necessarily to every winder.

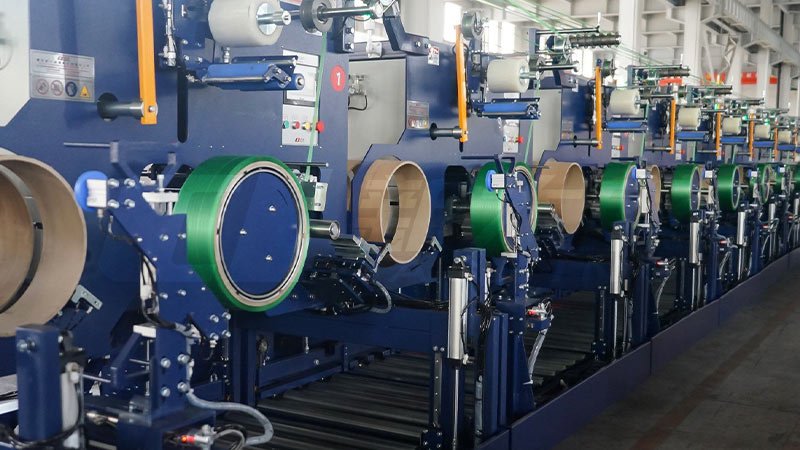

Xindacheng's PET Strapping Band Winder is designed to collect PET packaging straps into neat, uniform rolls for storage, transportation and automatic packaging applications. The winding system uses servo-controlled traversing and closed-loop speed control to help maintain consistent roll formation and winding tension.
Different configurations are available for standard PET strap winding and heavy-duty jumbo rolls. Depending on production requirements, customers can select automatic, semi-automatic, single-station or double-station winding solutions. Winding width, roll core size and other specifications can also be customized.
Key Features
Servo-Controlled Winding & Traversing
The servo motor controls the traversing width and distance according to the strap specification. Winding parameters can be set through the control system without replacing mechanical parts for different strap sizes within the machine's design range.
This helps maintain an orderly winding pattern and consistent roll shape.
Closed-Loop Speed & Tension Control
An inverter-based closed-loop control system regulates winding speed, while automatic tension adjustment helps keep the strap stable during winding.
The coordinated control of speed, tension and traversing helps reduce uneven winding and strap deformation.
Flexible Winding Specifications
The standard winding system accommodates PET straps from 5 mm to 32 mm wide. Winding width can be set according to the required roll specification.
Standard roll core diameters include 200 mm and 405 mm. Other core sizes can be discussed according to project requirements.
Heavy-Duty Jumbo Winder
For applications requiring large rolls, the heavy-duty jumbo winder supports a winding capacity of up to 300 kg per roll, with a reel diameter of up to 1,500 mm.
The servo-controlled traversing system adjusts the winding path according to the strap size, helping produce flat, orderly rolls suitable for downstream automatic packaging equipment.
Automatic & Semi-Automatic Options
The winding system can be selected according to the production line layout and labor requirements:
Automatic winder: Servo-controlled traversing, automatic tension adjustment and programmed winding.
Heavy-duty jumbo winder: Large-roll winding for applications requiring higher roll weight.
Semi-automatic single-station winder: A compact solution for individual winding operations.
Semi-automatic double-station winder: Two winding stations for flexible roll handling and production organization.
Main Winder Configurations

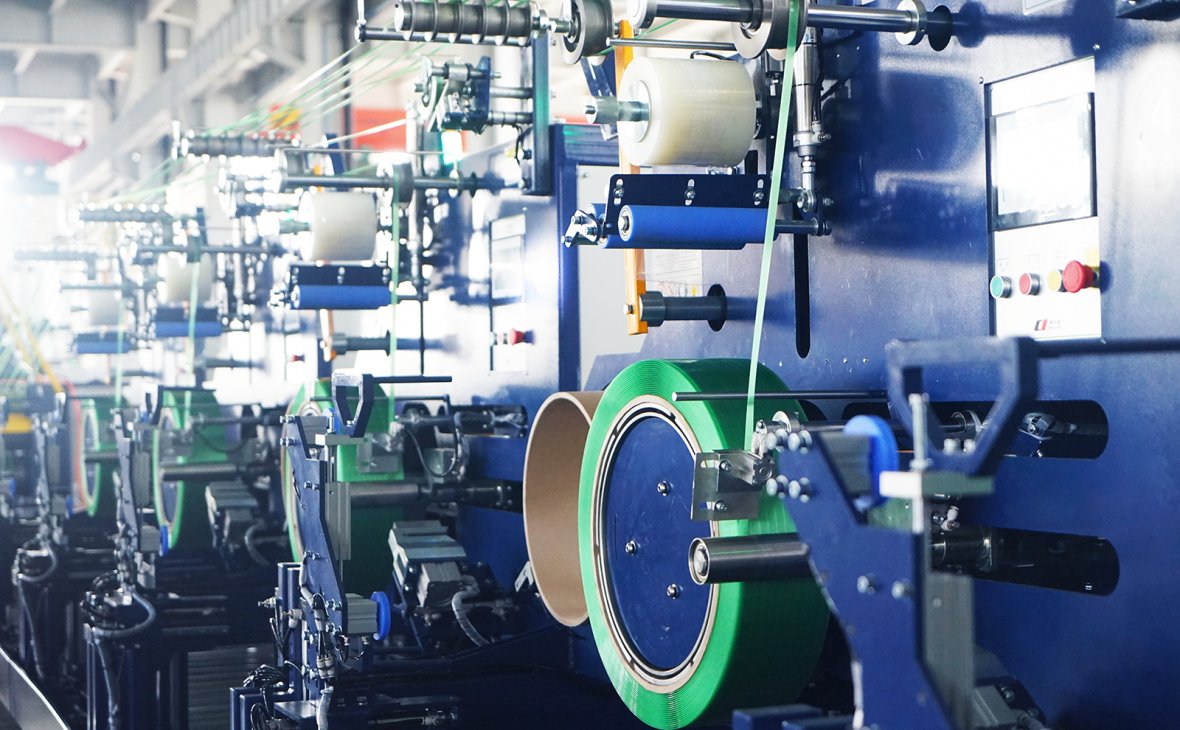

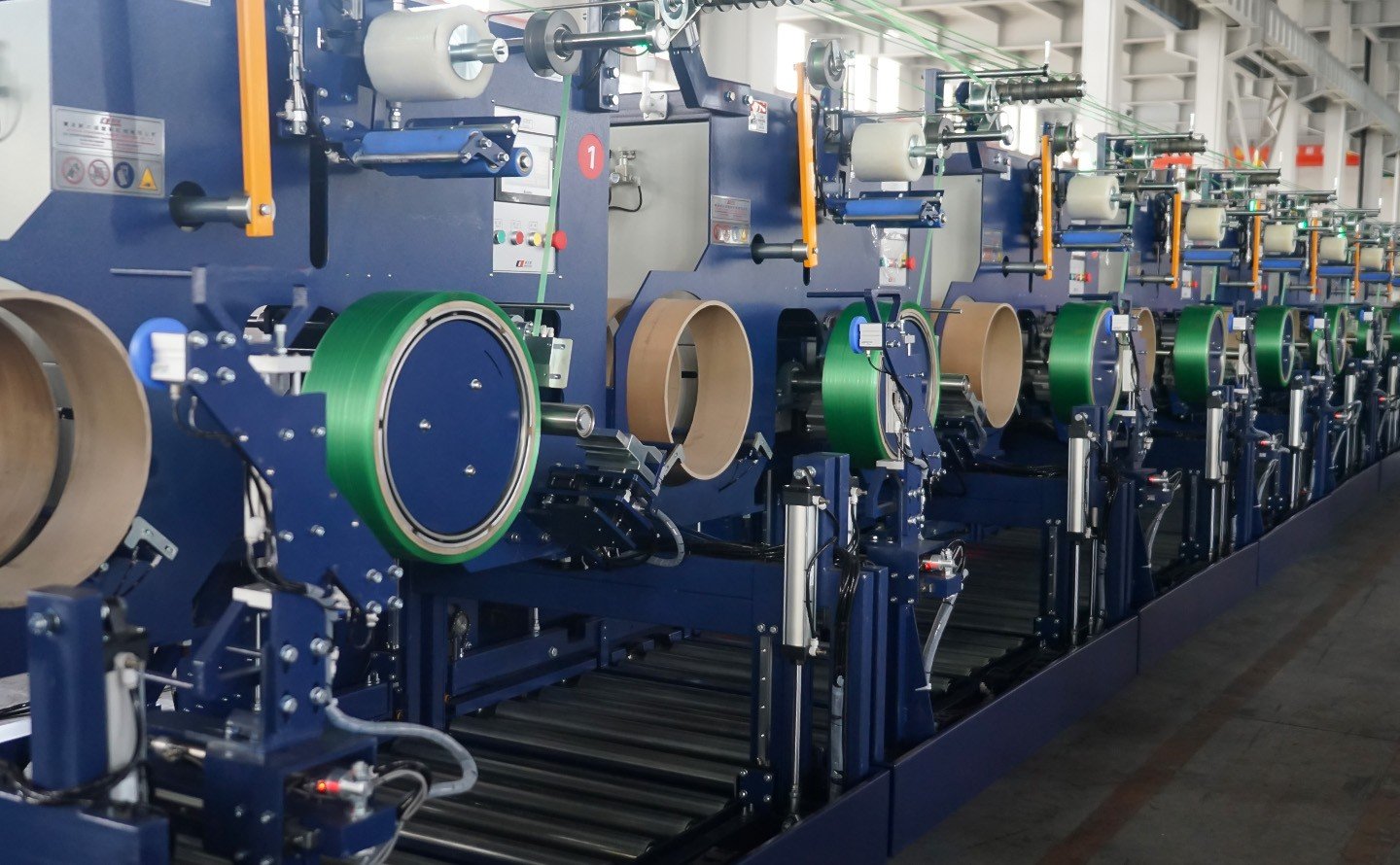

Automatic PET Strap Winder
The automatic winder coordinates winding speed, tension and traversing through its control system. Winding parameters can be adjusted according to strap width and the desired roll specification.
It is suitable for PET strap manufacturers looking for consistent roll formation and reduced manual adjustment during production.

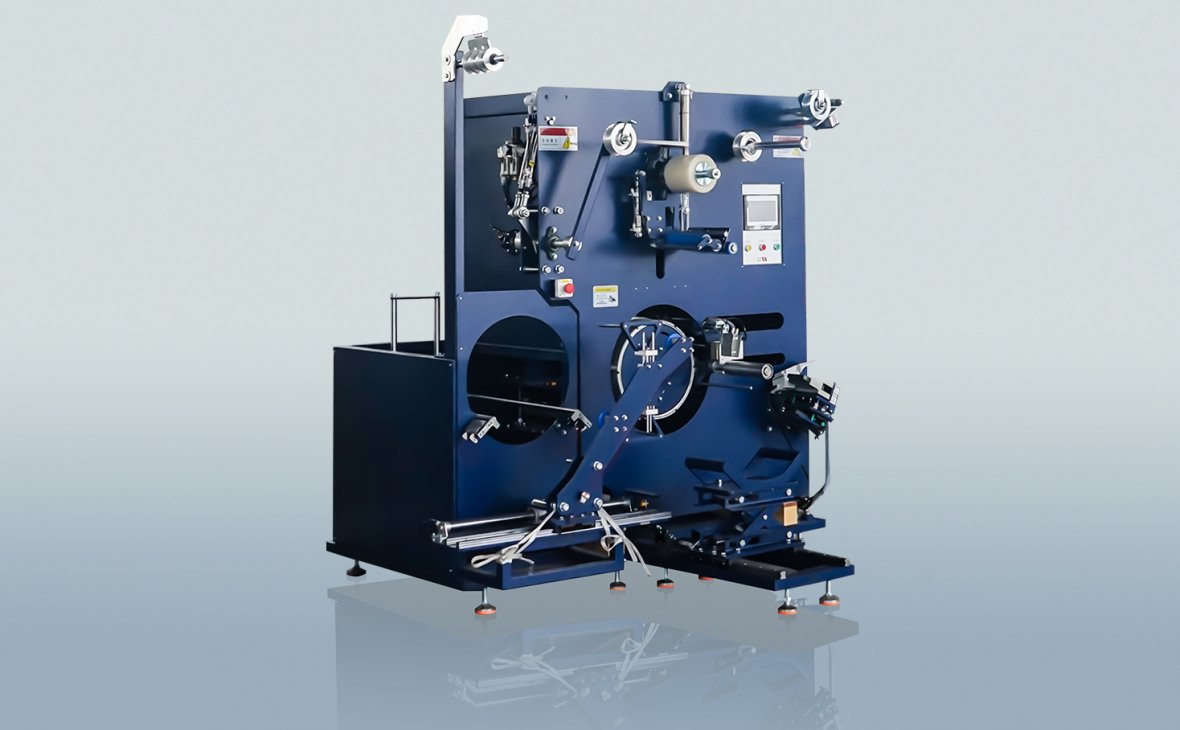

Heavy-Duty Jumbo PET Strap Winder
The jumbo configuration is designed for large PET strap rolls weighing up to 300 kg per roll, with a maximum reel diameter of 1,500 mm.
Servo-controlled traversing helps distribute the strap evenly across the roll width. The final winding configuration can be selected according to strap dimensions, roll weight and downstream packaging requirements.

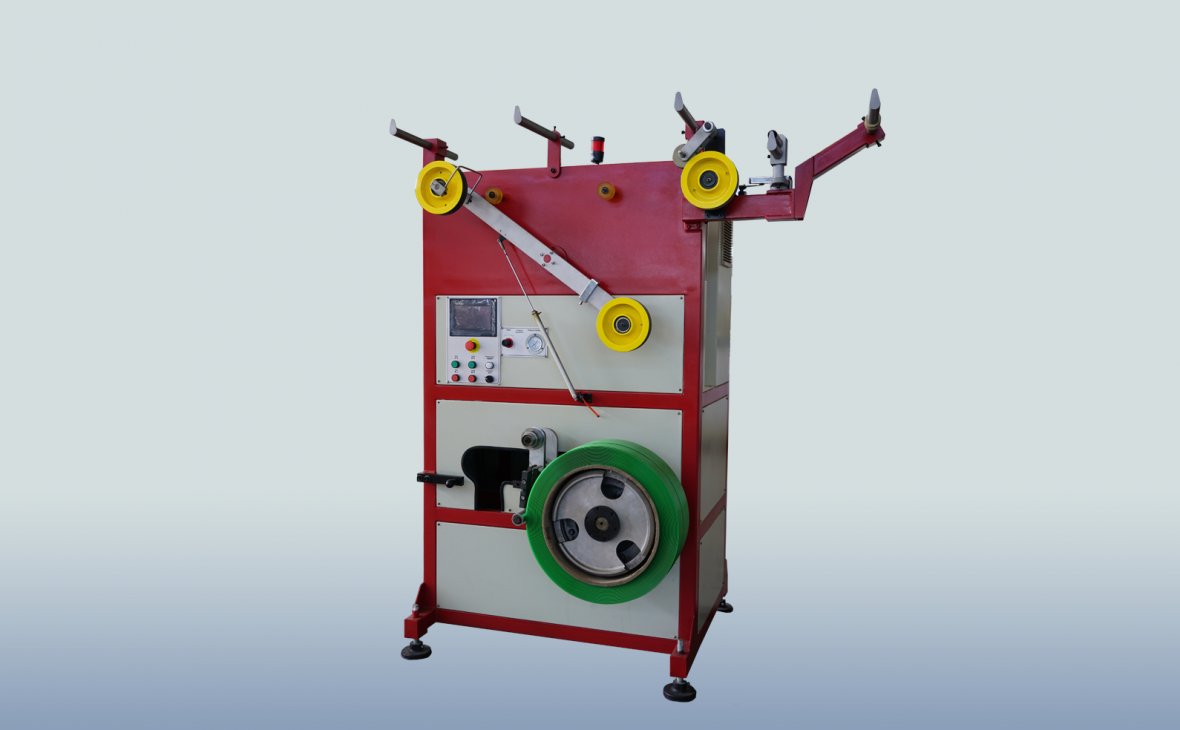

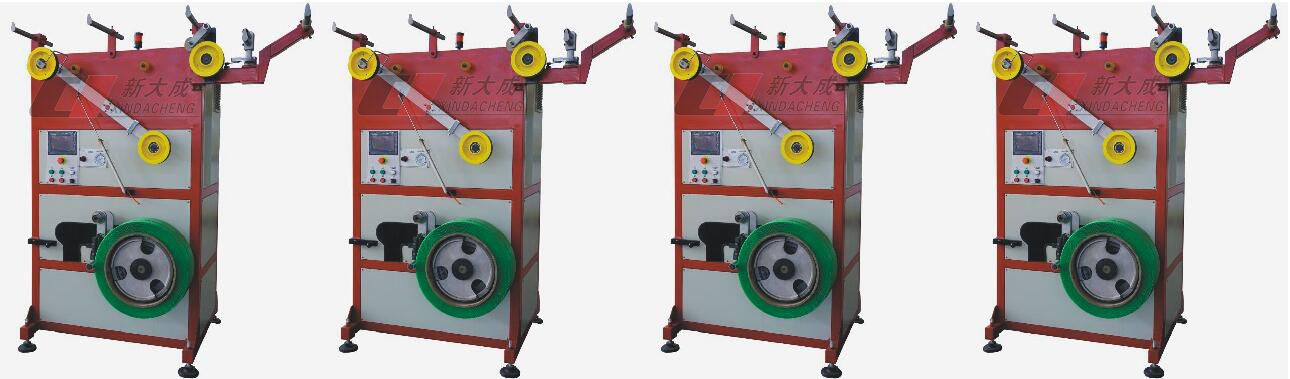

Semi-Automatic Single-Station Winder
The single-station configuration provides a straightforward winding solution for production setups that require an individual winding station. It can be selected according to the production layout and required level of automation.

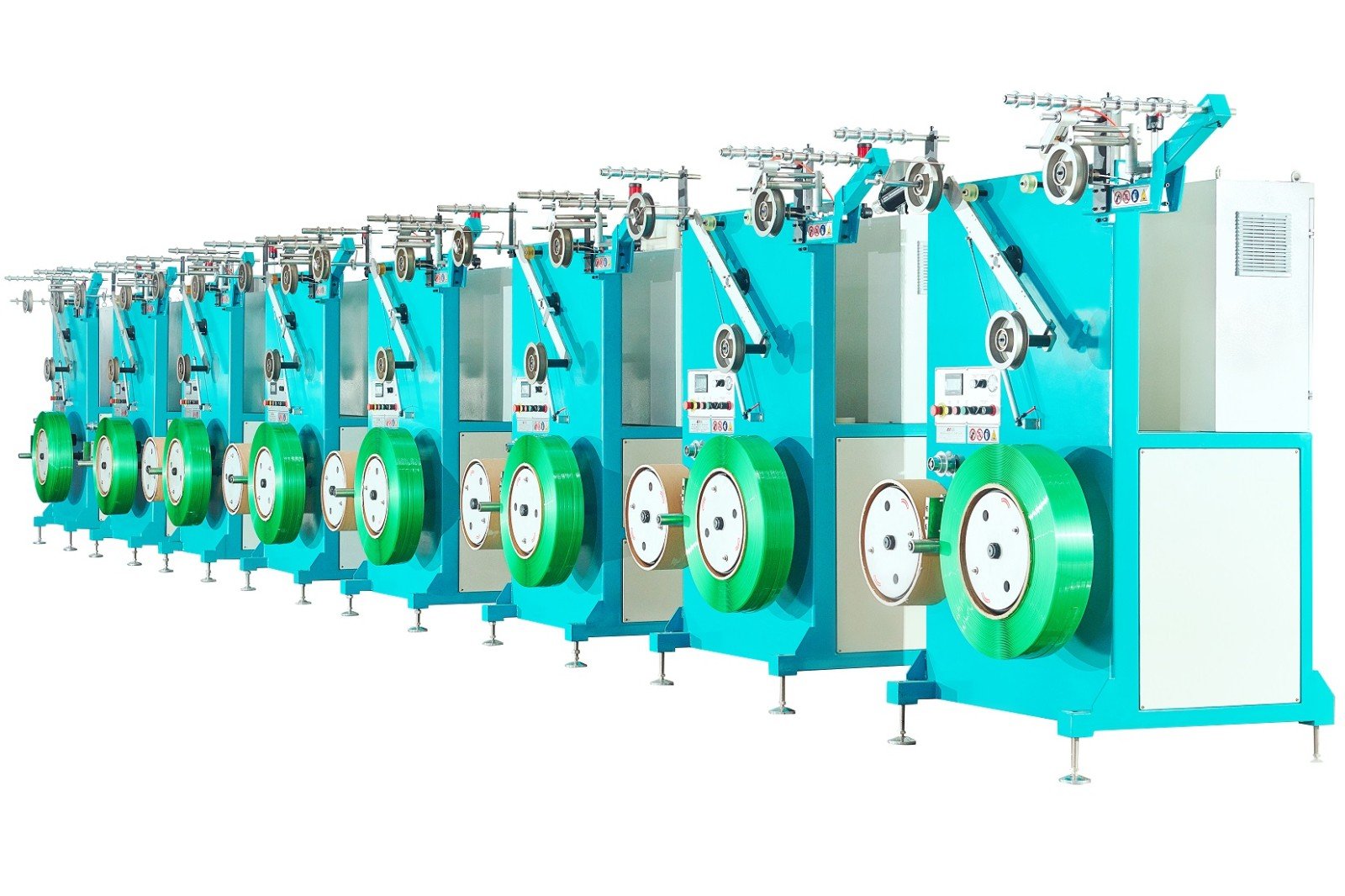

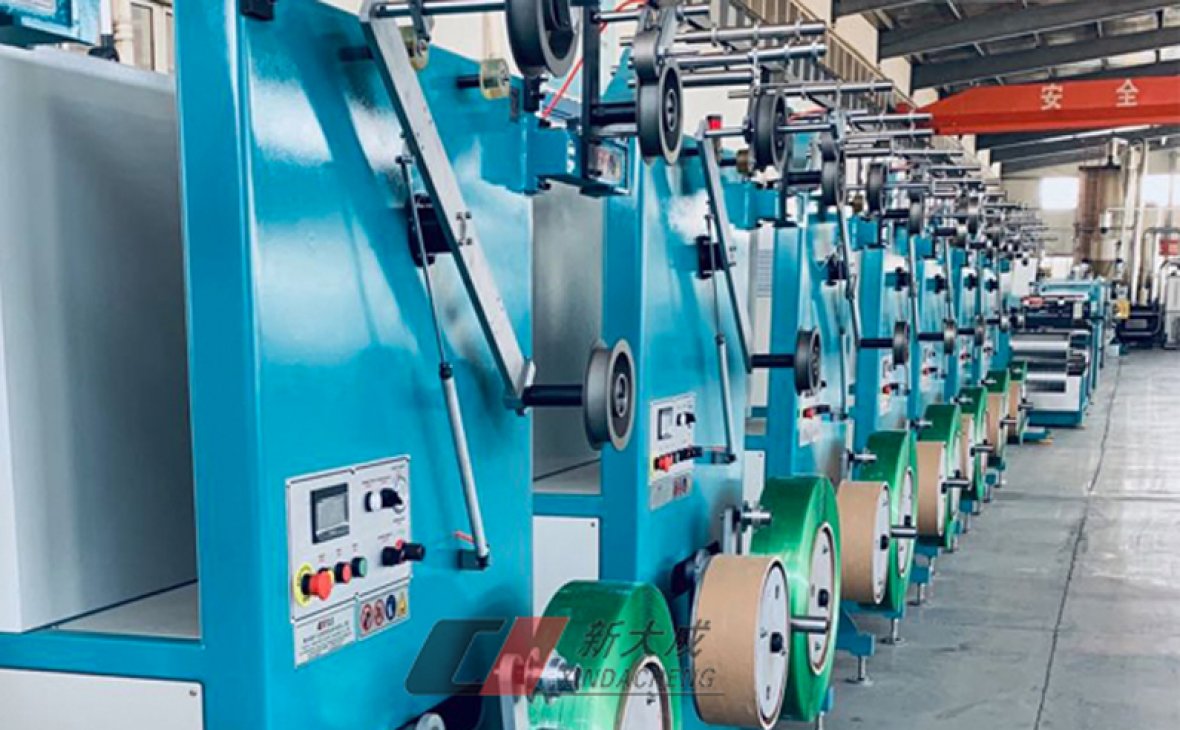

Semi-Automatic Double-Station Winder
The double-station configuration provides two winding positions for flexible roll handling. The appropriate operating arrangement depends on the selected model and production requirements.
Applications
PET strap winders are used by manufacturers of PET packaging straps and operators upgrading existing strap production lines. Depending on the configuration, they can support standard roll winding or large-roll production for applications such as:
Steel and metal packaging
Building materials
Paper and cardboard packaging
Industrial goods bundling
PET strap production lines supplying automatic packaging systems
Integration with Existing Production Lines
A PET strap winder can be selected as part of a new production line or evaluated for integration with an existing line.
To assess compatibility, the required information includes strap width and thickness, production speed, desired roll weight, roll core diameter, winding width and automation level. The final configuration should match the output and operating conditions of the upstream production equipment.
Why Xindacheng
Xindacheng manufactures plastic processing machinery and winding equipment for industrial packaging applications. Winder configurations can be selected according to roll specifications, winding requirements and production line layout.
From standard PET strap winding to heavy-duty jumbo rolls, the equipment selection can be tailored to the customer's production needs.
Global Equipment Delivery
Xindacheng supplies winding equipment to international customers. Machines are assembled and prepared for shipment according to the confirmed equipment configuration and project requirements.
Exhibition Experience
Xindacheng participates in international plastics and packaging machinery exhibitions, showcasing extrusion and winding equipment to manufacturers and industry professionals.
CE Certification
CE certification information is available according to the specific machine model and configuration. Relevant documentation can be confirmed for the equipment selected for your project.
Cooperation & Industry Experience
Xindacheng works with customers and industry partners in plastic processing and industrial packaging, providing equipment solutions for PET strap production and winding applications.
Request a PET Strap Winder
To identify a suitable winding solution, please provide your strap width, thickness, production speed, target roll weight, core diameter and required automation level. Xindacheng can evaluate the appropriate winder configuration based on your production line and roll specifications.
Full automatic strapping band Winder video：
Single Station Winder video：
Double Station Winder video：
