How to Diagnose Winding Problems in PET Strapping Band Production
Winding problems in PET strapping band production should be diagnosed by checking both the incoming strap and the winding system. Uneven roll edges, loose layers, unstable roll formation, and inconsistent finished-roll dimensions can have different causes, so changing winding tension alone may not solve every problem.
A practical diagnosis starts by identifying the visible defect, checking where it first appears, and comparing the incoming strap condition with the winder's operating setup.
Contents
1. Identify the Type of Winding Defect
Before adjusting the equipment, describe the defect as precisely as possible. This makes it easier to distinguish a strap-quality issue from a winding or alignment issue.
| Observed condition | What to check first | Why it matters |
|---|---|---|
| Uneven roll edges | Strap width consistency, guide alignment, and traverse movement | The incoming strap or its path may be inconsistent |
| Loose or poorly arranged layers | Winding tension, strap tracking, and the winding setup | The strap may not be laid consistently onto the reel |
| Irregular roll shape | Incoming strap condition, alignment, and winding stability | The defect may involve more than one part of the process |
| Variation in finished-roll dimensions | Roll changeover settings, target roll dimensions, and measurement method | The setup may not match the required finished roll |
| Repeated defects after a product change | New strap dimensions, guides, and winder configuration | The previous setup may not suit the new specification |
These are starting points for troubleshooting, not definitive diagnoses. The cause should be confirmed by observing the machine and checking the actual product.
2. Check the Incoming Strap Before Adjusting the Winder

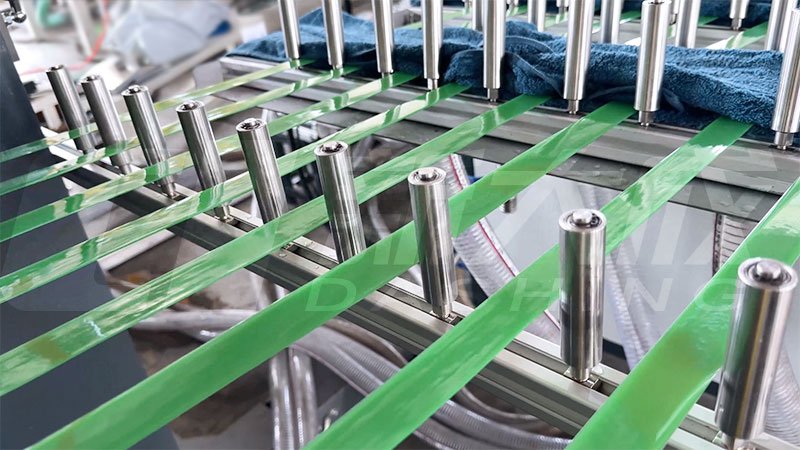

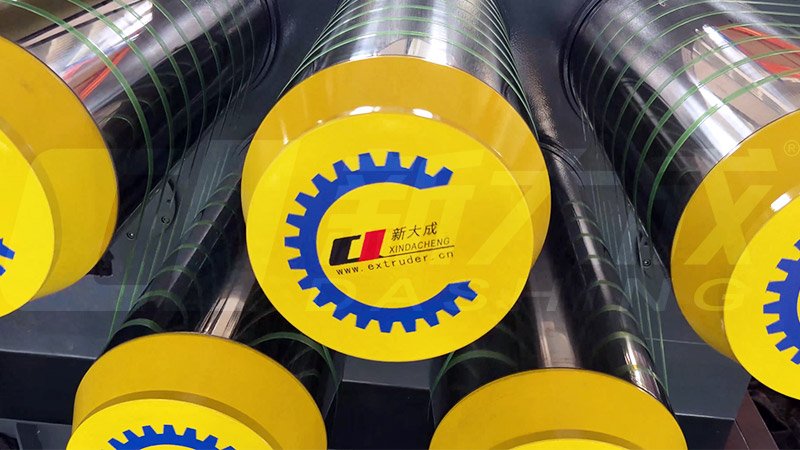

The winder receives material from the upstream production process. If the incoming PET strap already has inconsistent width, thickness, edges, or tracking behavior, the finished roll may show irregularities even when the winding equipment is operating normally.
Check the strap at the entrance to the winding section. Compare its dimensions at several points and observe whether it follows a consistent path.
If the strap condition changes before it reaches the winder, investigate the upstream process first. If the incoming strap is consistent but the defect appears during winding, focus on the strap path, guiding components, traverse movement, and winding setup.
This distinction helps prevent unnecessary adjustments to the winder when the source of the problem lies elsewhere.
3. Evaluate Strap Alignment and Traverse Movement
The strap must follow a controlled path as it is laid onto the reel. Misalignment, inconsistent guiding, or irregular traverse movement can contribute to uneven roll edges.
During operation, observe whether the strap moves consistently across the intended winding width. Check for visible rubbing, repeated lateral displacement, or interruptions in the traverse movement.
Also confirm that the guiding and winding configuration matches the strap width and the intended roll dimensions. A setup used for one strap specification should not automatically be assumed suitable for every other specification.
If the strap begins moving sideways before entering the winder, check the upstream path. If the movement starts at the winding section, inspect the relevant guides and traverse mechanism.
4. Check Winding Tension and Roll Formation Together
Winding tension affects how the strap is laid onto the reel, but tension should not be assessed in isolation.
If the strap layers are loose or poorly arranged, check tension control alongside strap alignment and the incoming material condition. If the roll becomes irregular as it grows, observe whether the winding condition changes with roll diameter or during speed changes.
Record the product specification and operating conditions when the defect occurs. Compare more than one finished roll under comparable conditions before deciding whether an adjustment has solved the problem.
The correct settings depend on the machine configuration, strap dimensions, and required finished-roll characteristics. There is no single tension value that can be recommended for every PET strapping band winder.
5. Confirm the Required Finished-Roll Specifications
Before choosing or adjusting a winding system, define the required finished-roll dimensions and handling method.
Important information includes:
Strap width and thickness
Required roll weight and outer diameter
Core diameter and reel arrangement
Whether roll changeover is manual or automatic
Whether cutting, strapping, or unloading functions are required
The production conditions under which the winder will operate
These requirements affect the appropriate winding configuration and the level of automation needed.

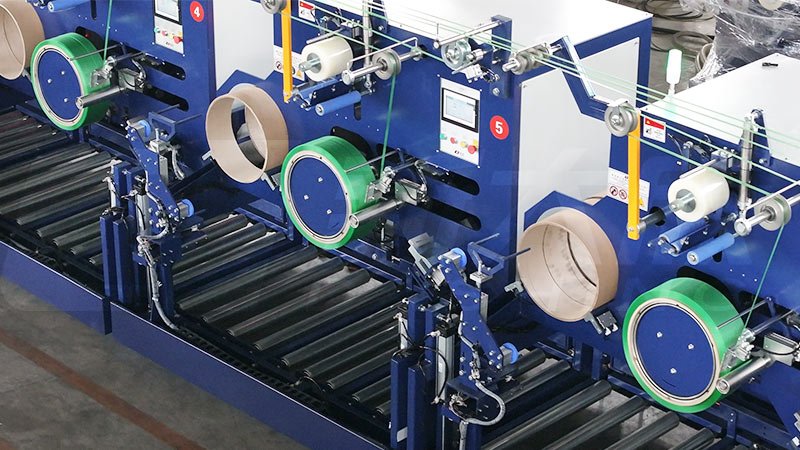

For example, Xindacheng's jumbo PET strapping band winder configuration includes a strap-width range of 5–32 mm, a stated roll weight of up to 300 kg, a maximum reel diameter of 1,500 mm, and 200 mm or 405 mm core options. The configuration also includes servo traverse and automatic tension control.
These are configuration-specific specifications, not universal requirements for all PET strap winders. Confirm the required product range and finished-roll dimensions before comparing equipment.
6. Check Automatic Changeover and Downstream Handling
For a production line that uses automatic winding, roll formation is only one part of the evaluation. The changeover sequence and finished-roll handling should also suit the production requirements.
Confirm which functions are included in the selected configuration. Depending on the equipment, winding systems may support functions such as automatic changeover, cutting, strapping, and unloading. These functions should not be assumed to be included in every machine.
During a production trial, observe whether the strap remains controlled through the winding and changeover sequence. Record any recurring misalignment, interruption, or operator intervention.
If a defect occurs only during changeover, investigate the changeover sequence separately from steady-state winding.
7. Use a Repeatable Winding Inspection Procedure
A repeatable inspection procedure makes it easier to compare results and determine whether a change has improved winding quality.
For each trial, record:
The PET strap width and thickness.
The target finished-roll weight and dimensions.
The winder configuration and relevant operating conditions.
The appearance and dimensions of the finished roll.
Any visible strap tracking or tension-related issues.
The adjustments made and the result observed.
Use the same measurement method when comparing finished rolls. If the product has specified dimensional or performance requirements, verify them through the appropriate measurements or tests rather than visual inspection alone.
Conclusion
Diagnosing PET strapping band winding problems requires checking the incoming strap, alignment, traverse movement, tension control, finished-roll requirements, and changeover operation. Identifying where a defect first appears is more useful than changing several settings at once.
When selecting a PET strapping band winder, provide the strap dimensions, required roll weight and diameter, core size, production conditions, and desired automation level. These details help determine which winding configuration is appropriate for the intended production line.
