Drip Irrigation Pipe Machine Buying Guide 2025
When venturing into the production of drip irrigation pipes, selecting the right equipment is crucial for the success of your operation.
Selecting the right drip irrigation pipe production machine is critical for agricultural businesses. Production speed (450m/min vs 400m/min) directly impacts your:
✔ Output volume
✔ Operational costs
✔ Final product quality
This 2025 guide covers:
→ Plastic extrusion fundamentals
→ Speed vs. quality balance
→ Machine selection criteria
How Drip Irrigation Pipes Are Made: Plastic Extrusion Process
Drip irrigation pipes are primarily manufactured through plastic extrusion, a process where raw plastic materials are melted and shaped into the desired pipe form.
At the heart of this process is the extrusion die, which acts as the workhorse, responsible for melting, mixing, and pushing the plastic material through a die to form the pipe.

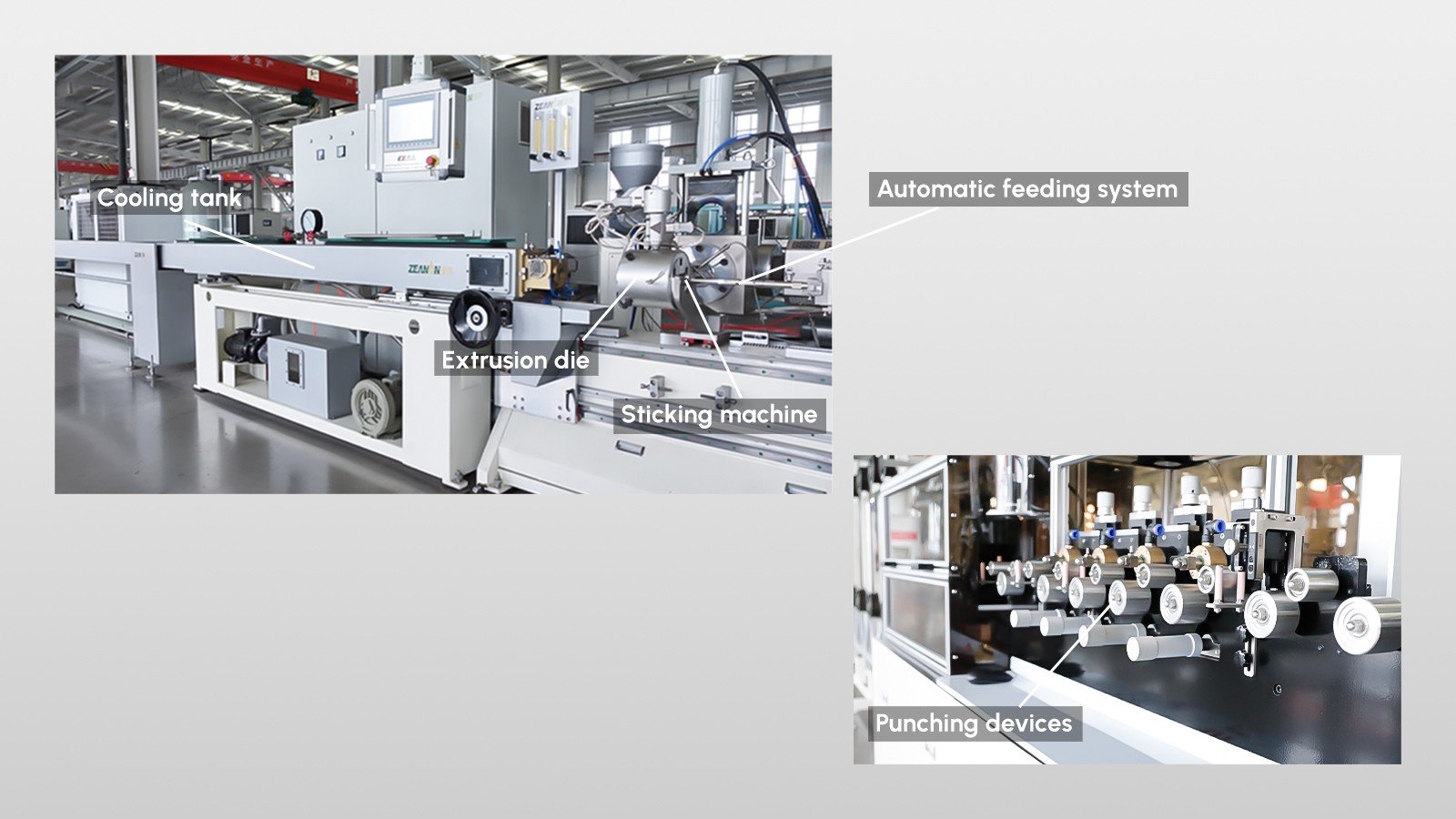

Key Components of a Production Line:
Plastic extruder: Melts raw materials
Extrusion die: Shapes molten plastic into pipes
Cooling system: Stabilizes pipe dimensions
Punching devices: Creates emitter & pipe holes
Defining Production Speed and Its Influencing Factors
Production speed, typically measured in meters per minute (m/min), refers to how fast the production line can manufacture the drip irrigation pipes.
This speed is influenced by several factors within the plastic extruder and the production line.
The power and efficiency of the extruder’s motor, the design of the screw (which affects material conveyance and melting), and the cooling efficiency of the system all play roles.
A faster production speed means more pipes are produced in a given time, which can significantly boost your output volume.
For example, a line operating at 450m/min will naturally yield more pipes per hour than one running at 400m/min, assuming consistent operation and similar downtime.
Balancing Speed and Quality
However, it’s important to strike a balance.
Poorly formed pipes can fail during drip irrigation system installation, causing leaks, reduced water distribution efficiency, and ultimately, higher costs for repairs and replacements.
⚠ Inconsistent wall thickness (leads to burst pipes under pressure)
⚠ Poor emitter hole precision (causes uneven water distribution)
⚠ Higher reject rates (up to 5% vs 2% at 400m/min)
While a higher production speed may seem appealing for increasing output, it can’t be achieved at the expense of quality.
Xindacheng’s Equipment Quality Control Tips:
Use laser micrometers for real-time thickness monitoring
Implement automated vision systems for hole inspection
Maintain melt temperature within ±0.5°C of target
Matching Machine Speed to Irrigation Needs
Moreover, the production speed of your drip irrigation pipe machine must align with the requirements of your drip irrigation systems.
Different applications, such as agricultural fields, greenhouses, or landscaping, may demand pipes of varying diameters, wall thicknesses, and dripper spacing.
The production line must be capable of adjusting speed to accommodate these specifications without compromising quality.
Key Buying Considerations for 2025
When evaluating a drip irrigation pipe production line, consider not only the maximum speed it can reach but also its stability and reliability at different speeds.
A line that operates smoothly across a range of speeds offers greater flexibility, allowing you to adapt to changing market demands or specific project needs.
Top 5 Evaluation Criteria:
Speed adjustability (Look for 10% over/under capacity)
Energy efficiency (Compare kWh/meter metrics)
After-sales support (Spare parts availability)
Automation level (Auto-diameter adjustment saves labor)
Compliance (ISO 9261:2024 for drip irrigation pipes)
Conclusion: Finding Your Optimal Speed
In conclusion, production speed is a vital factor in determining the output of your drip irrigation pipe production. It’s closely linked to the performance of the plastic extruder and the overall efficiency of the production line.
By understanding how speed affects quality and aligning it with the needs of drip irrigation system installation and the specifics of your target market, you can make an informed decision when buying a drip irrigation pipe machine. Remember, the goal is to find a balance between speed, quality, and reliability to maximize your production output and ensure the success of your drip irrigation pipe business.
