High-Speed Round Drip Irrigation Pipe Production Line Technologies

In the face of global water scarcity and the growing demand for food security, modern agricultural practices increasingly rely on efficient irrigation solutions. Drip irrigation systems have emerged as a cornerstone of sustainable agriculture, delivering water and nutrients directly to plant roots with minimal waste. At the heart of this revolution is the high-speed round drip irrigation pipe production line, a marvel of engineering that integrates several advanced technologies to manufacture high-quality, reliable, and cost-effective irrigation products. This article explores the core key technologies that define these production lines, highlighting their role in enhancing manufacturing efficiency, ensuring product consistency, and promoting environmental sustainability.

1. Two-Layer Co-Extrusion Technology with Mark Colour Line

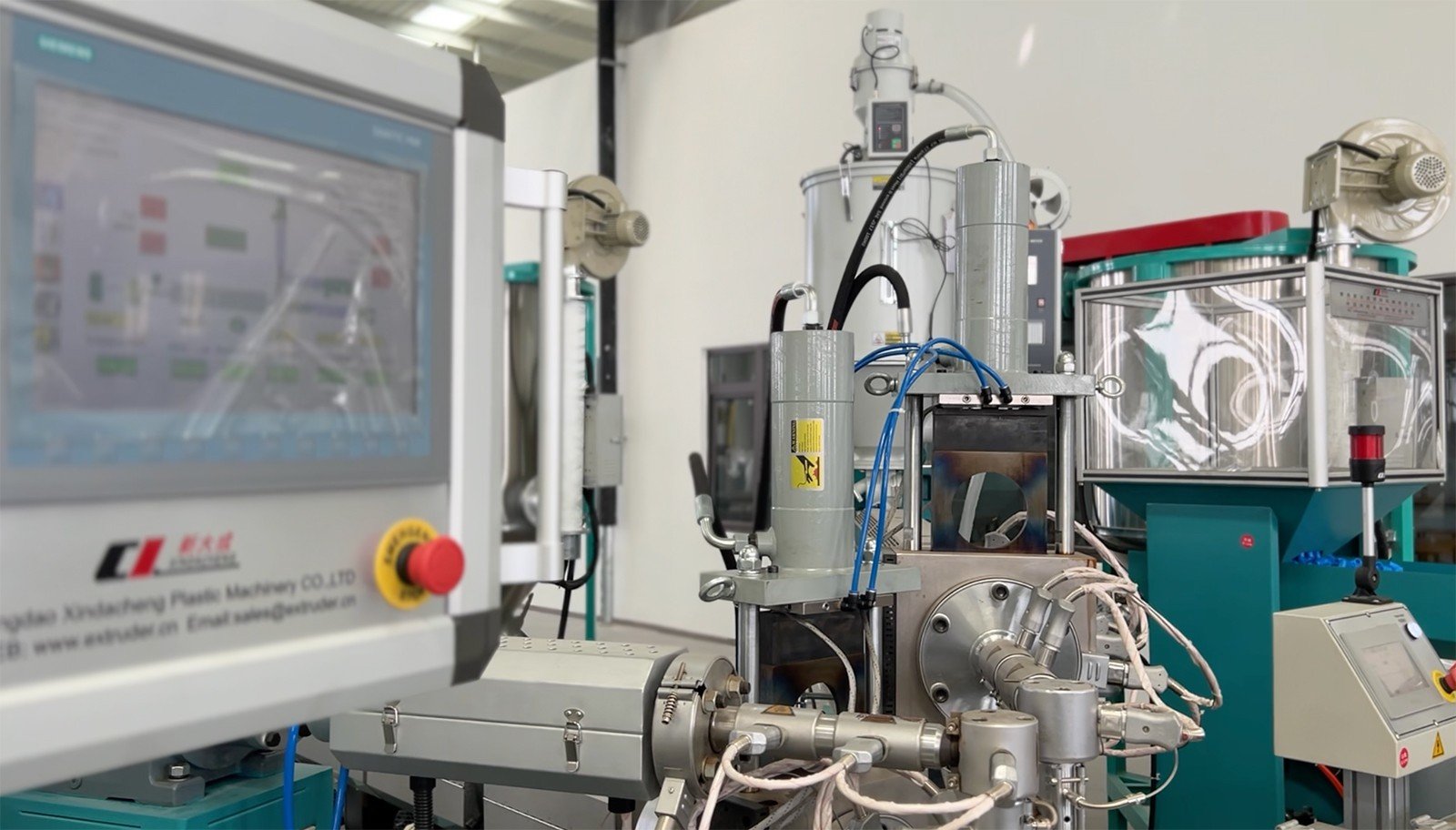

1.1 Two-Layer Co-Extrusion Technology

A fundamental innovation in modern drip pipe manufacturing is two-layer co-extrusion technology. This process utilizes a high-efficiency, energy-saving extruder to melt and plasticize raw materials with exceptional stability. The key advantage lies in its ability to simultaneously extrude two distinct layers of material. This allows manufacturers to incorporate recycled materials into the inner or outer layer (the non-critical layer), while using virgin, high-quality resin for the layer that contacts water or bears structural pressure.

1.2 The advantages of this technology

This approach significantly reduces raw material costs and improves sustainability without compromising the product's performance or longevity. Furthermore, the integration of a mark colour line during extrusion adds a continuous colored stripe along the pipe's length. This simple feature provides crucial visual guidance for installation, helping farmers and installers quickly identify specifications, orientation, and brand, thereby streamlining field operations and reducing errors.

2. High-Speed Dripper Screening and Insertion System

The dripper is unequivocally the "heart" of the drip pipe, and its precise placement is critical for uniform water emission. The high-speed dripper screening and insertion system is a feat of precision automation.

Capable of processing Φ12-16-20mm round drippers at remarkable speeds of 450-500 pieces per minute, this system seamlessly matches the high velocity of the production line. Driven by advanced servo motors and governed by a sophisticated PLC, it achieves micron-level accuracy in placement. The system automatically screens out and rejects defective drippers before insertion, ensuring that only perfect components are used. The PLC also allows for easy pre-setting of dripper spacing, typically adjustable between 100mm to 1000mm, to meet the specific requirements of different crops, from densely planted vegetables to widely spaced orchards.

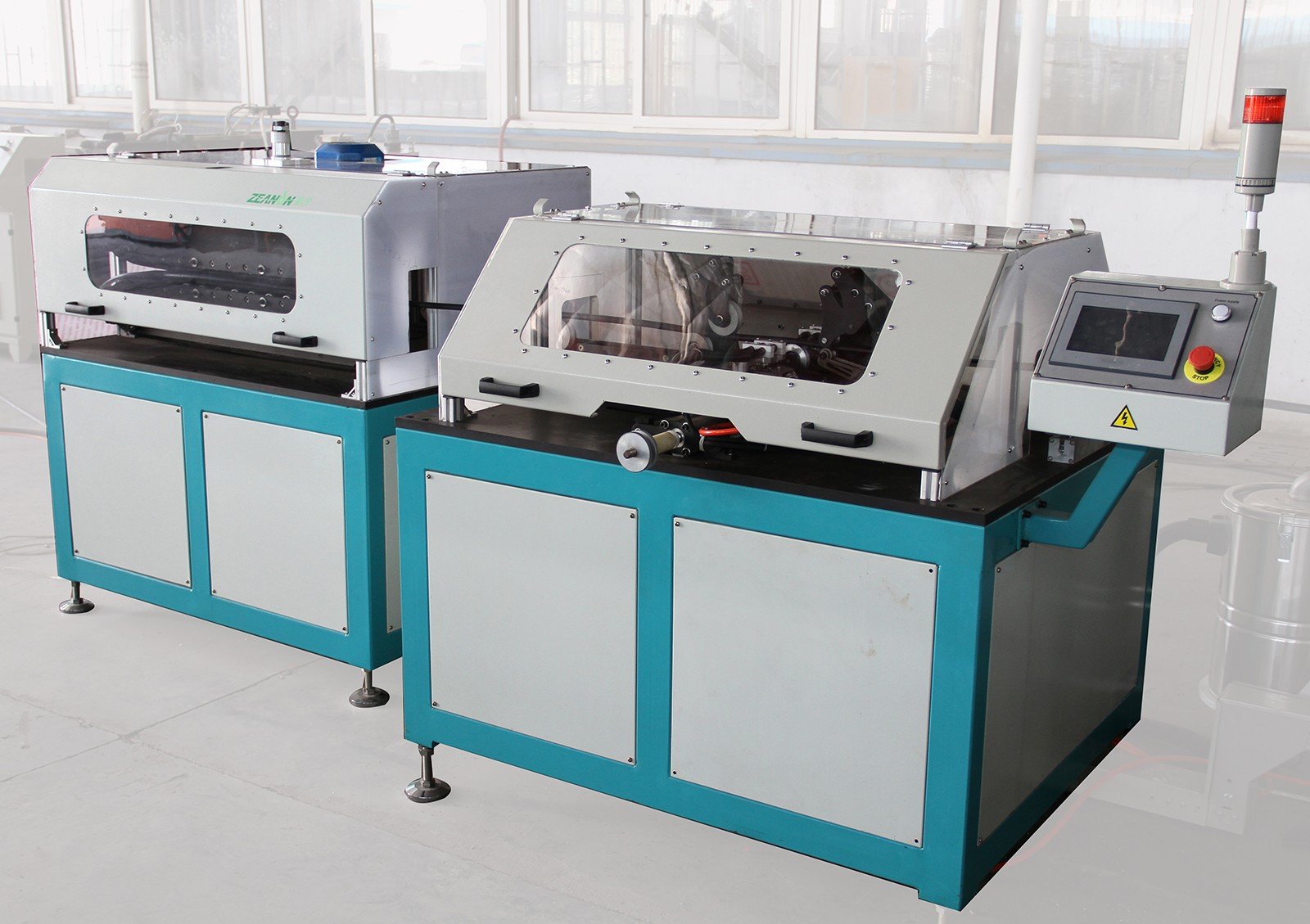

3. Automatic Punching Technology for Drip Holes

Once the dripper is securely inserted, the pipe must be perforated to allow water to escape. Automatic punching technology handles this critical step with unparalleled speed and precision. Synchronized with the dripper insertion rate, the punching mechanism operates at an identical 450-500 holes per minute. Utilizing a servo-driven punching head, it creates either double or quadruple drip holes with absolute accuracy, perfectly aligned with the emitters inside. This precision is vital; it ensures consistent water flow, prevents leakage between emitters, and avoids any structural damage to the pipe wall that could lead to premature failure. The choice between double or quadruple holes allows farmers to tailor the water output rate to their specific irrigation needs.

4. Fully Automatic Winder and Strap Pack System

The final stage of the process transforms the continuous pipe into neat, market-ready rolls. The fully automatic winder and strap pack system completes this task with flawless efficiency. Operating at line speeds of 100-120 meters per minute, it automates coiling, cutting, and roll changeover. An integrated metering system guarantees that every roll is of the exact length specified by the customer, eliminating disputes and waste. An optional online automatic strap packing unit then secures each roll with tight, uniform straps, protecting the product during transportation and storage. This end-to-end automation drastically reduces labor costs and minimizes human error, enhancing overall logistics efficiency.

Conclusion

The synergy of these core technologies—two-layer co-extrusion, high-speed dripper insertion, automatic punching, fully automatic winding—creates a manufacturing solution that is far greater than the sum of its parts. The high-speed rounddrip irrigation pipe production line achieves exceptional output speeds of 120-150m/min while guaranteeing product quality, operational efficiency, and significant cost savings. As the global agricultural sector continues to prioritize water conservation and efficiency, these advanced production technologies will play an indispensable role in manufacturing the irrigation systems that will feed our future.
